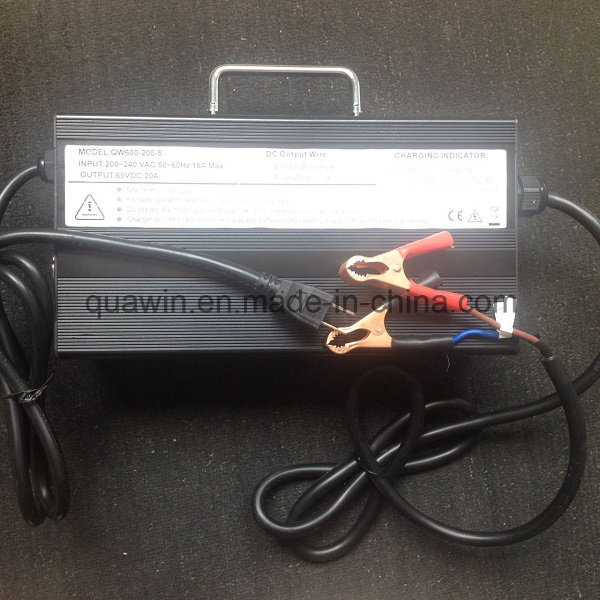

60V 20A Lead Acid Battery Charger

60V 20A Lead Acid Battery Charger
Price: US $ 170.00/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QW600-200-S
Input Voltage: AC180~264V 45/65Hz
Desktop Type: Yes
Voltage: 60V
Current: 20A
Delivery Date: 15days
Warranty: One Year
Charger Type: Electric Charger
Type: Lead Acid Battery
Nominal Voltage: 60V

Product Description

60V 20A Lead acid battery charger

Quick Detail:
Brand Name: QUAWIN
Model Number: QW600-200-S
Use: 60V Lead-Acid Battery
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 73.5V
Color: Black/Silver
Input voltage: AC 180~264V 45/65Hz with PFC
Output voltage: 73.5V

Output current: 20A
Output power: 1470W
Output Connector: Alligator Clip, SR175A Output Plug, SB175A Output Plug, SB50A Output Plug, Custom

Packaging & Delivery:
Inner package: White box/polybags/at your request outer package: Carton
Delivery Detail: Sample within 7 work days, 7~25 days for bulk order

Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 60V lead acid battery charger

Features:
• Fully auto CC +CV(H)+CV(L) charging process, with MCU controller.
• Constant big charging current for faster charging,
• automatically charging ending with Cut-Off output.
• Aluminum case with Fan Cooling
• It can charge any 60V SLA/VRLA/GEL/AGM battery with capacity 140-150Ah


Specification:
• Input: AC 180~264V 45/65Hz with PFC
• Output: DC 73.5V
• Charging current: 20A
• Full Load Efficiency: ≥90%

• Shock & Vibration: SAEJ1378 Standard
• Operating Temperature: -20ºC~45ºC (-20ºF~+113ºF)
• Weight: 3000g(only body)
• Dimension: 264*120*84mm


Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

LED Indicator:
• GREEN Light ON: Fully charged or no connected.
• BLUE Light flash: Battery is being charged.
• RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).

Call us to know more details datasheet.
ITEMQW360-280-SQW360-290-SQW360-300-SQW360-310-SQW360-320-SQW360-330-S
Output voltage: 44.1V44.1V44.1V44.1V44.1V44.1V
Rated output current: 28A29A30A31A32A33A
Output power: 1234.8W1278.9W1323W1367.1W1411.2W1455.3W
ITEMQW360-340-SQW480-210-SQW480-220-SQW480-230-SQW480-240-SQW480-250-S
Output voltage: 44.1V58.8V58.8V58.8V58.8V58.8V
Rated output current: 34A21A22A23A24A25A
Output power: 1499.4W1234.8W1293.6W1352.4W1411.2W1470W
ITEMQW600-160-SQW600-170-SQW600-180-SQW600-190-SQW600-200-SQW720-140-S
Output voltage: 73.5V73.5V73.5V73.5V73.5V88.2V
Rated output current: 16A17A18A19A20A14A
Output power: 1176W1249.5W1323W1396.5W1470W1234.8W
ITEMQW720-150-SQW720-160-SQW720-170-SQW840-120-SQW840-130-SQW840-140-S
Output voltage: 88.2V88.2V88.2V102.9V102.9V102.9V
Rated output current: 15A16A17A12A13A14A
Output power: 1323W1411.2W1499.4W1234.8W1337.7W1440.6W
ITEMQW960-110-SQW960-120-SQW1080-100-SQW1080-110-SQW1200-090-SQW1200-100-S
Output voltage: 117.6V117.6V132.3V132.3V147V147V
Rated output current: 11A12A10A11A9A10A
Output power: 1293.6W1411.2W1323W1455.3W1323W1470W
ITEMQW1320-080-SQW1320-090-SQW1440-080-SQW1560-070-S
Output voltage: 161.7V161.7V176.4V191.1V
Rated output current: 8A9A8A7A
Output power: 1293.6W1455.3W1411.2W1337.7W
