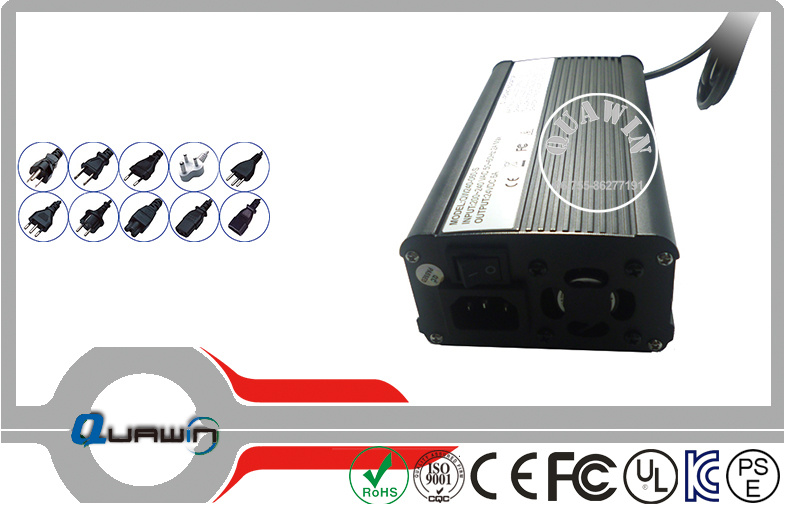

60V 3A Sead Lead-Acid Charger

60V 3A Sead Lead-Acid Charger
Price: US $ 48.5/Piece
Trade Terms: FOB,EXW
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QW600-030-S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Desktop Type: Yes
Delivery Date: 15days
Warranty: One Year
Type: Lead-Acid Battery Charger
Charging Type: Electric Charger

Product Description

60v 3A Lead-Acid Charger
Voltage60v
Current30a
Connectoras your request

INPUT
01 Rating Input Voltage: 110~120Vac or 200-240Vac 50-60Hz
02 Input voltage range: 100~132Vac or 180-264Vac
03 Rating Input Current: 2.0Arms, 220Vac
04 Max. Input power: 260W

OUTPUT
05 Rating output voltage: 68.8V
06 Output voltage range: 30VDC~75VDC
07 Suit with Battery type: 60V 9.0~30.0Ah VRLA
08 Charging current(stage1): 3.0A+ -0.3A@60V
09 Charging voltage(stage2): 72V+-0.3V

Floating voltage(stage3): 68.7V+-0.30V
10 Cut-off current(stage2 to 3): <0.60+-0.2A
11 Typical charging time: 8hour
12 Max. Output power: 216W
13 Hold-on time: NC, Input: 220Vac Output: Full load
14 Ripple current: 600mA, Input: 220Vac Output: Full load
15 Charge finish condition: V>70V +I<0.6A
16 LED color: Red: Charging, Green: Finish/idle
17 Output protect: Over Current Protection, Over Voltage Protection, Reverse input protection
18 Efficiency: 80%(min), At max. Load

Shipment
Door to DOOR
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
