| Prod Model: |
SW-01120500-S10 |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Desktop |
| Brand: |
Fox or OEM |
Product Description
Key Specifications/Special Features:

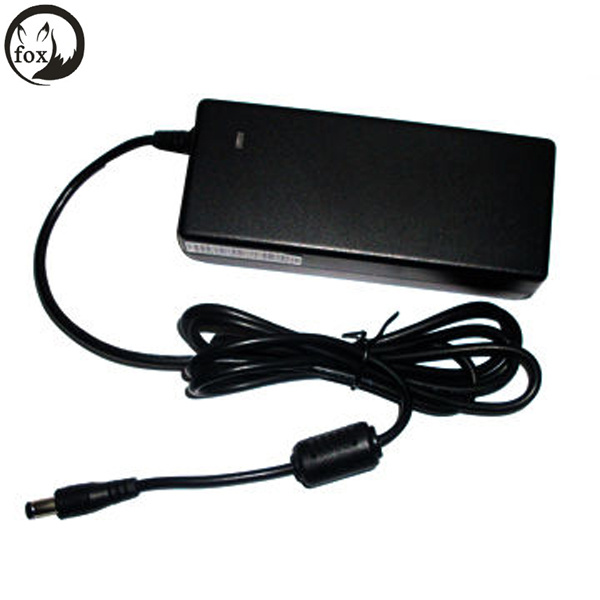

Power: 60W/12V/5A/AC/DC switching adapters, UL/CE/FCC/GS certified
Input voltage: 100 to 240V AC, 47 to 63Hz
Input inrush current: 0.3A max
Efficiency: 85% (minimum)
Efficiency level: VI
Output: 12V/5A
Inlet: C6, C8, C14 inlet available
Ripple and noise: <120Mv at full road with 20MHz bandwidth
Turn on delay time: <3S (AC: 110V and full load)
Safety protection: over voltage and current protection
Leakage current: <5mA
DC cable length: 1.5 meters
Operating temperature: 0 to +60°C
Storage temperature: -20 to +85°C
Certificate: CE/GS/TUV/UL/CUL/FCC/RoHS Directive-compliant/SAA/PSE/C-TICK
Safety standard: EN60950-1 UL60950-1 ESD (EN61000 3-3)CAS (60950 ITE/TE) FCC Part 15 subpart B Class B AN/NZS CISPR 22:2006
Advantages:
We are the professional factory of switching power supply, power adapter, USB charger, laptop adapter, AC/DC adapter, LED driver, dimmable LED driver, waterproof led driver, we are trying the best to meet customer demands excellent performance, best service and reasonable price to satisfied customer all over the world
| Desktop power adapter |
| Power | Model | Input | Output voltage | Output current | Certificates | INLET |
| 36W series | SW-00060400-S10 | 100-240V AC | 6V | 4.0A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00090400-S10 | 9V | 4.0A |
| SW-00120300-S10 | 12V | 3.0A |
| SW-00150240-S10 | 15V | 2.4A |
| SW-00180200-S10 | 18V | 2.0A |
| SW-00240150-S10 | 24V | 1.5A |
| 48W series | SW-00060500-S10 | 100-240V AC | 6V | 5.0A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00090500-S10 | 9V | 5.0A |
| SW-00120400-S10 | 12V | 4.0A |
| SW-00150320-S10 | 15V | 3.2A |
| SW-00180260-S10 | 18V | 2.6A |
| SW-00240200-S10 | 24V | 2.0A |
| 60W | SW-00090600-S10 | 100-240V AC | 9V | 6.0A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00120500-S10 | 12V | 5.0A |
| SW-00150400-S10 | 15V | 4.0A |
| SW-00180350-S10 | 18V | 3.5A |
| SW-00240250-S10 | 24V | 2.5A |
| 72W | SW-00120600-S10 | | 12V | 6.0A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00150480-S10 | 15V | 4.8A |
| SW-00180350-S10 | 18V | 4.0A |
| SW-00240300-S10 | 24V | 3.0A |
| 90W | SW-00090800-S10 | 100-240V AC | 9V | 8.0A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00120500-S10 | 12V | 7.5A |
| SW-00150400-S10 | 15V | 6.0A |
| SW-00180350-S10 | 18V | 5.0A |
| SW-00240250-S10 | 24V | 3.75A |
| 120W | SW-000901000-S10 | 100-240V AC | 9V | 10A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-001201000-S10 | 12V | 10A |
| SW-00150800-S10 | 15V | 8.0A |
| SW-00180670-S10 | 18V | 6.7A |
| SW-00240500-S10 | 24V | 5.0A |
| 180W | SW-001801000-S10 | 100-240V AC | 18V | 10A | UL, CE, FCC, RCM, C-TICK,
TUV, GS | C8
C14
C6 |
| SW-00240750-S10 | 24V | 7.5A |
| SW-00360500-S10 | 36V | 5.0A |
| SW-00480375-S10 | 48V | 3.75A |
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Distributorships Offered
Electronic Link
Experienced Staff
Form A
Green Product
Guarantee/Warranty
International Approvals
Military Specifications
Packaging
Price
Product Features
Product Performance
Prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted
Main Export Markets:
Asia
Australasia
Central/South America
Eastern Europe
Mid East/Africa
North America
Western Europe
Payment Details:
Payment Method:Telegraphic Transfer in Advance (Advance TT, T/T)
Delivery Details:
FOB Port:Shenzhen
Lead Time:1 - 15 days
Dimensions per Unit:10 × 6 × 4 Centimeters
Weight per Unit:250 Grams
Units per Export Carton:50
Export Carton Dimensions L/W/H:45 × 40 × 18 Centimeters
Export Carton Weight:12 Kilograms
