60W 12V Indoor IP20 Efficient LED Power Supply for Strip Light

Name: 60W 12V Indoor IP20 Efficient LED Power Supply for Strip Light
Brand: all-electronics-online.com
SKU: 772492145
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 5.36-5.8/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-12E60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	5A
Item:	60W LED Strip Light Driver
Installation:	Indoor
IP Rating:	IP 20
Cooling:	Free Air Convection

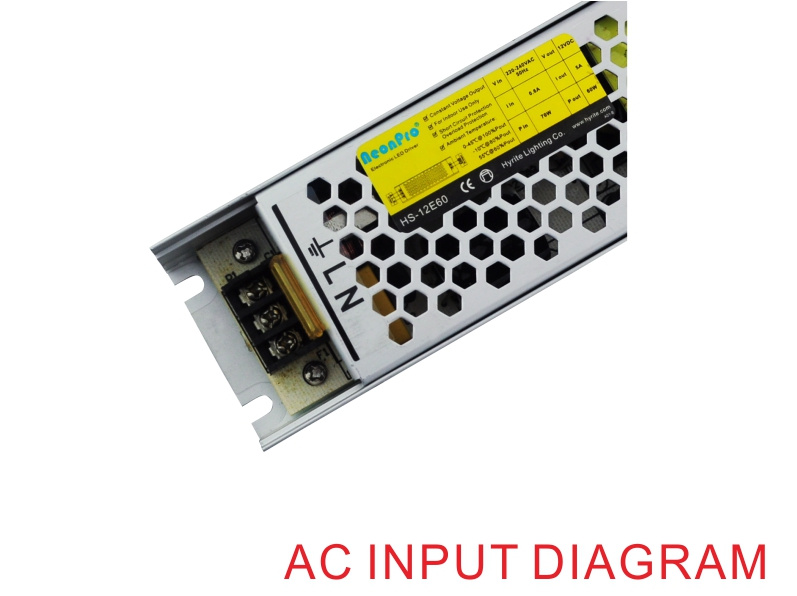

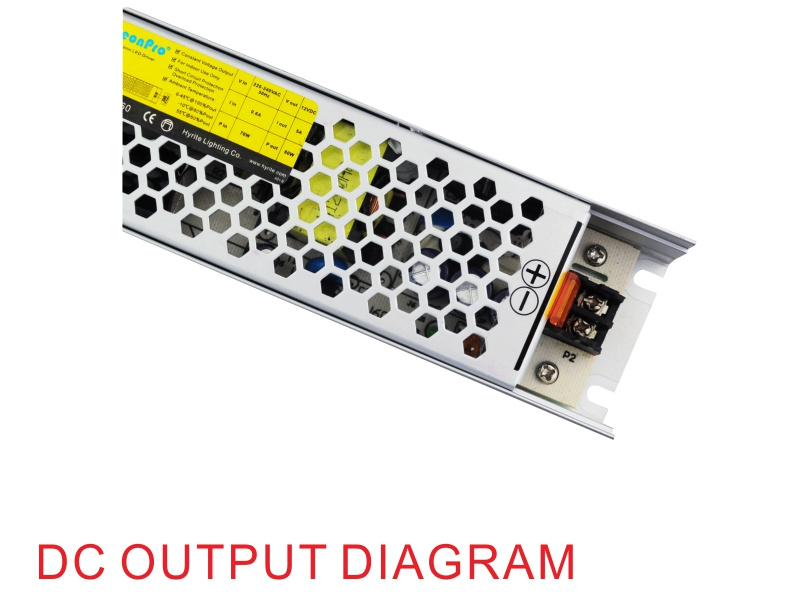

Connection Input/Output:	Terminal
Weight(Kg):	0.42
Packing Information:	60 PCS/ Carton, G.W 25 Kg
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Neonpro
Power Supply Voltage:	AC220-240V

Product Description

60W 12V Indoor IP20 Efficient LED Power Supply for strip light

1. Feature of 60W Efficient LED Power Supply for strip light:
*Aluminum case, Cooling by free air convection, efficient heat dissipation.
*Slim body, special design for application with narrow space.
*High transfer efficiency>85%.
*Constant voltage output
*For indoor use only

2. Application of 60W Efficient LED Power Supply for strip light:
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

3. Specification of 60W Efficient LED Power Supply for strip light:

Model no.	HS-5/12/24 E60
Model series	HS
Input voltage	220-240VAC 50Hz/60Hz
Power	60W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC/12VDC/24VDC ± 5%
Output current	12A/5A/2.5A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal

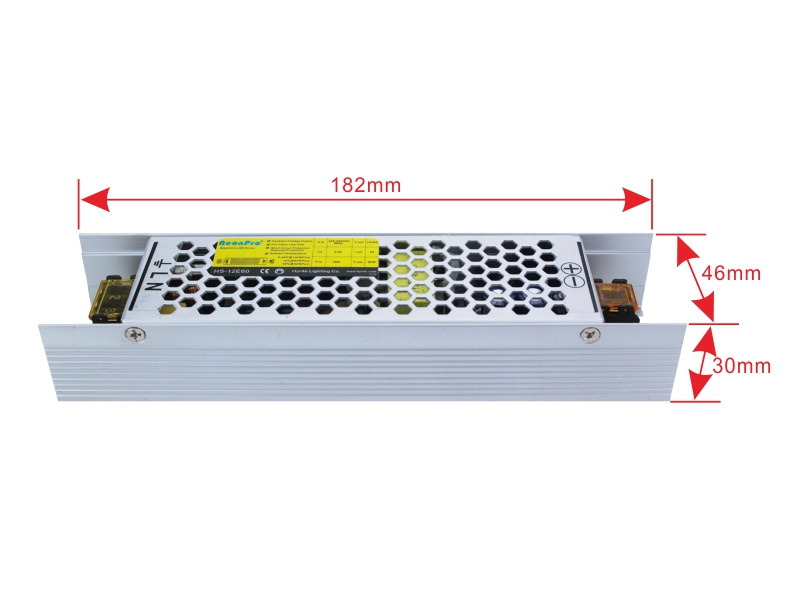

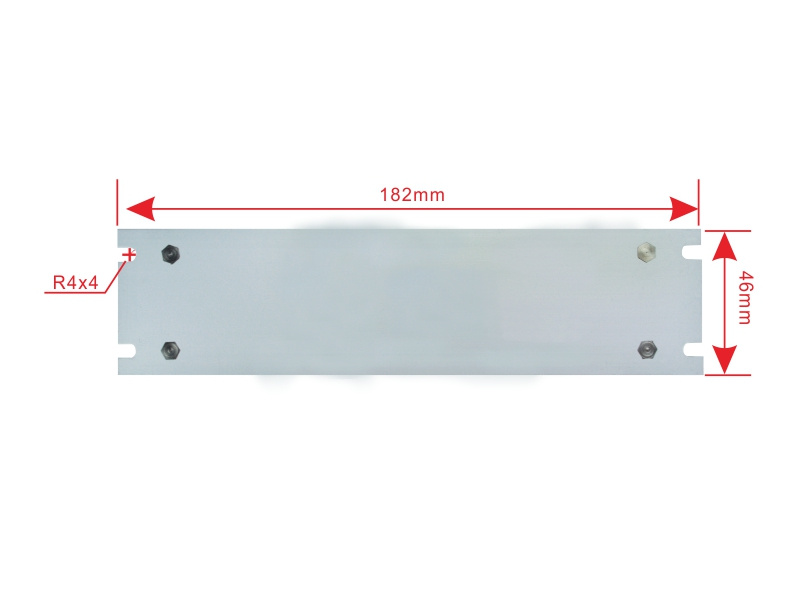

Dimensions(LWH)	1824630 mm
Weight(kg)	0.3000

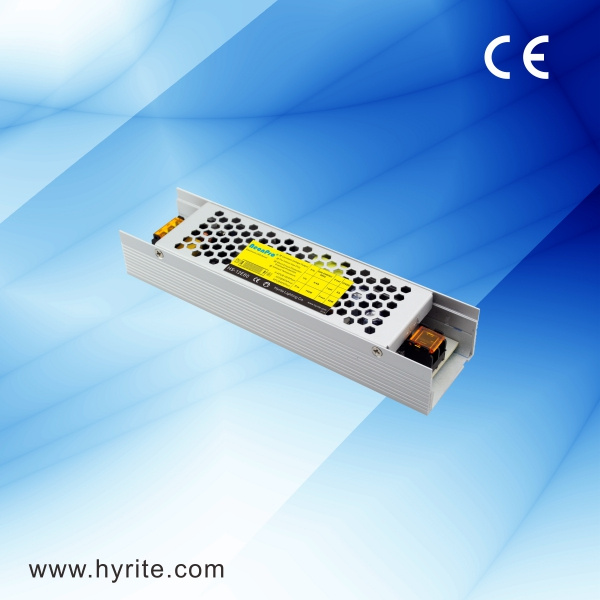

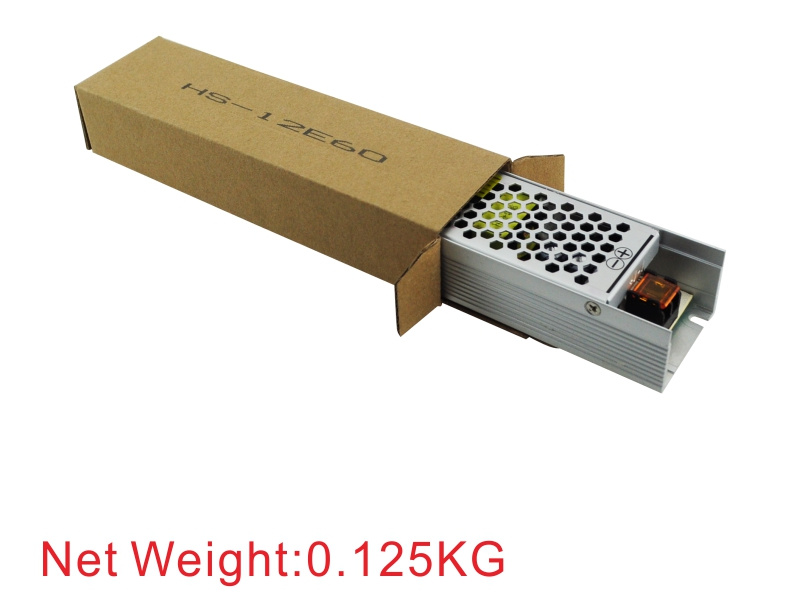

4. More picture of LED driver:

FAQ :
1. Shipment:
Ocean or air transportation, international express
2. Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3. Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4. Supply ability:
50000 units/month
5. MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7. OEM and ODM service.

Contact :
Sales Department:

Wing Xu
Hyrite Lighting Co. (NeonPro)
Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369
H.P.: +86-18520900296 / +86 18319770308
Website: http://www.hyrite.com/, http://hyrite-leddriver.en.made-in-china.com/

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
