60W 12V IP64 AC to DC Switching Power Supply with UL

Name: 60W 12V IP64 AC to DC Switching Power Supply with UL
Brand: all-electronics-online.com
SKU: 731252165
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 20.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPS-60-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	120V
Input Current:	1.2A
Output Voltage:	12V
Power:	60W
Power Factor:	Low
Efficiency:	78 %
IP Rating:	IP 64
Cooling:	Free Air Convection
Certificates/Standards:	UL
Model No.:	Sps-60-12
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	120V
Brand:	Neonpro

Product Description

60W 12V IP64 Clss 2 AC TO DC Switching Power Supply with UL

1. Features of Switching Power Supply :

*AC to DC Single Output Switching Power Supply
*Self-contained slim design, wiring connection inside
*UL recognized outdoor class 2
*IP64 rating
*For applications of
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

2.Technical Specification of Switching Power Supply

Model no.	SPS-60-12
Input voltage	100-132 VAC 50/60 Hz
Max. power	60 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	78 %
Output voltage	12VDC ± 5%
Output current	5A max
Overload protection	105%-120% hiccup mode, auto-recovery
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40'c
Installation	Outdoor rainproof
IP rating	IP 64
Cooling	Free air convection
Certificates/standards	UL

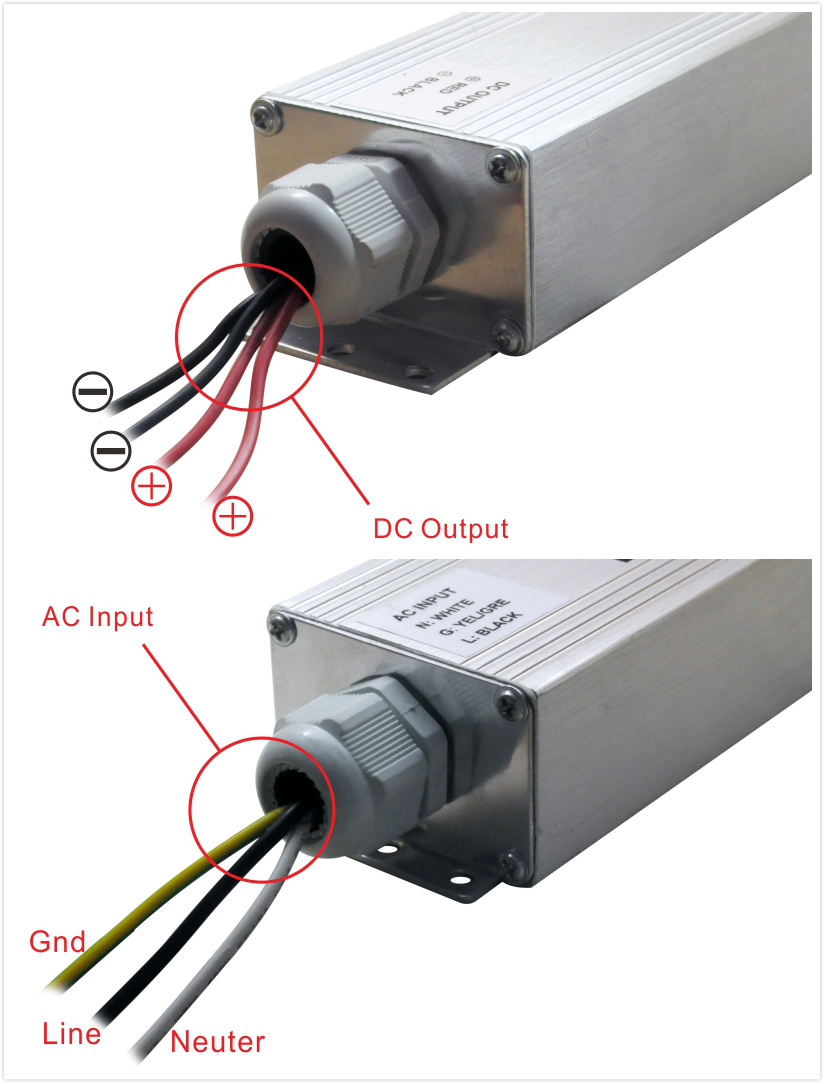

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

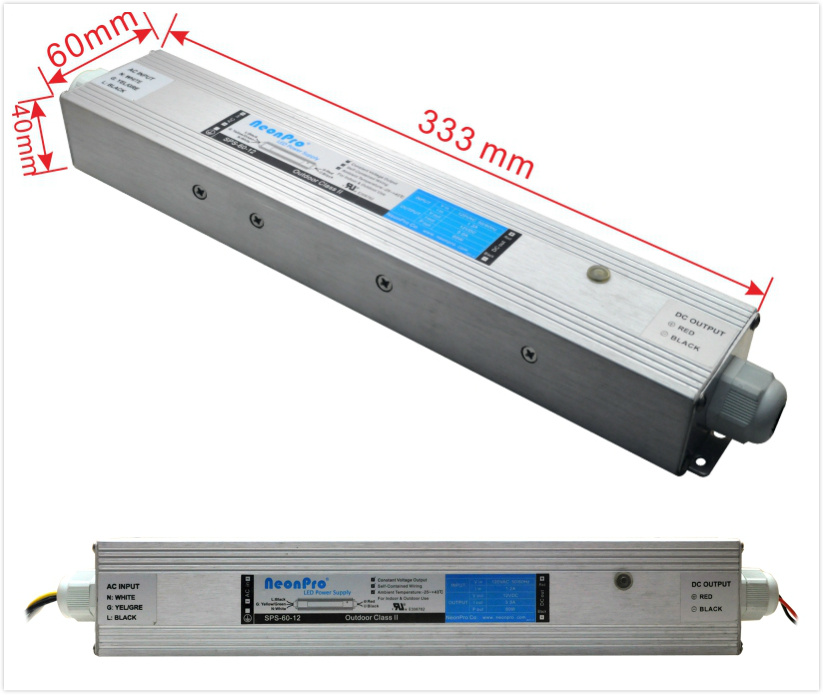

Dimensions(LWH)	15.11"2.36"1.5"
Weight(kg)	0.7700
Packing information	20 Pcs/ Carton, G.W 17.4KG

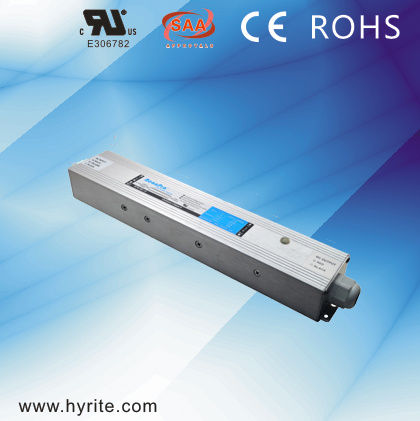

3. Detailed Picture of Switching Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
