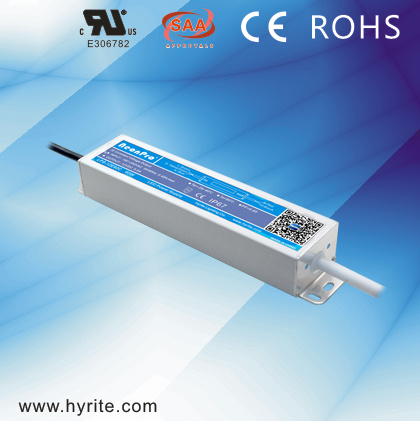

60W 12V Slim Waterproof LED Power Supply with Bis

Name: 60W 12V Slim Waterproof LED Power Supply with Bis
Brand: all-electronics-online.com
SKU: 742136655
Availability: InStock
Rating: 4.7 (45 reviews)

Price:	US $ 7.78-8.64/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E60C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	60W
Input Voltage:	220V
Output Voltage:	12V
Efficiency:	>83%
IP Rating:	IP 67
Dimensions(LWH):	1994334mm
Weight(Kg):	0.5 Kg
Packing Information:	20 PCS/ Carton, G.W 10 Kg
Power Factor:	0.65
Dimming:	No
Usage:	Bis
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

Outdoor Waterproof 60W 12V Slim LED Power Supply with Ce, Bis Certified
1. Features
*Fully sealed & waterproof, IP67
*Constant voltage output
*High efficiency 90%
*Short circuit and overload protection
*100% burn-in test
*2 years warrenty

2. Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...
*Slim body, specially for application with narrow space, such as cove light, light box, channel letter...

3. Specification

Model no.	LPS-12E60C
Input voltage	180-250 VAC 50/60 Hz
Max. power	60W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	>83%
AC inrush current(max.)	Cold start, 46A@230VAC
Output voltage	12VDC ± 5%
Output current	5A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25ºC~+40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE,BIS

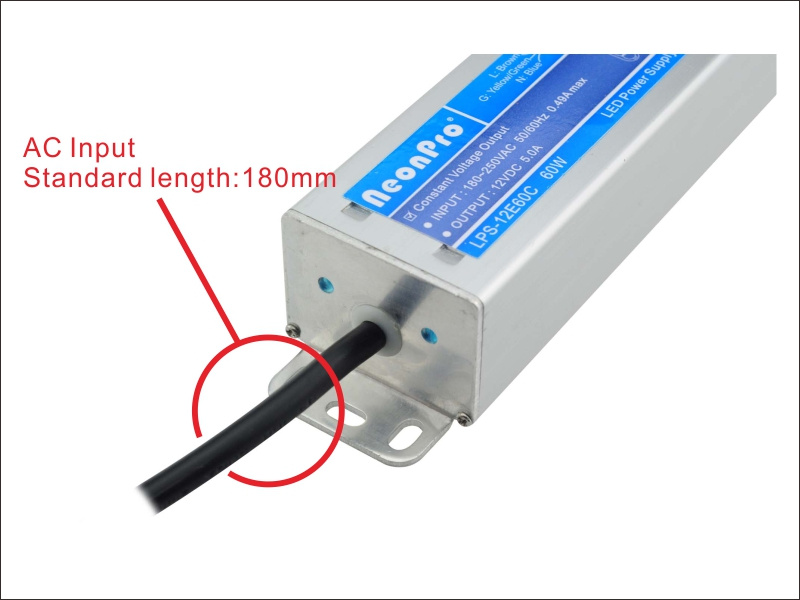

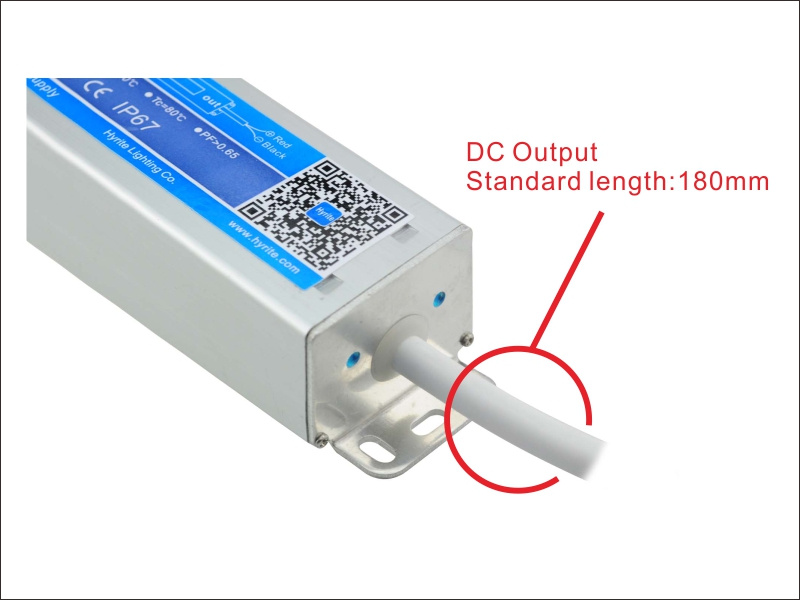

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

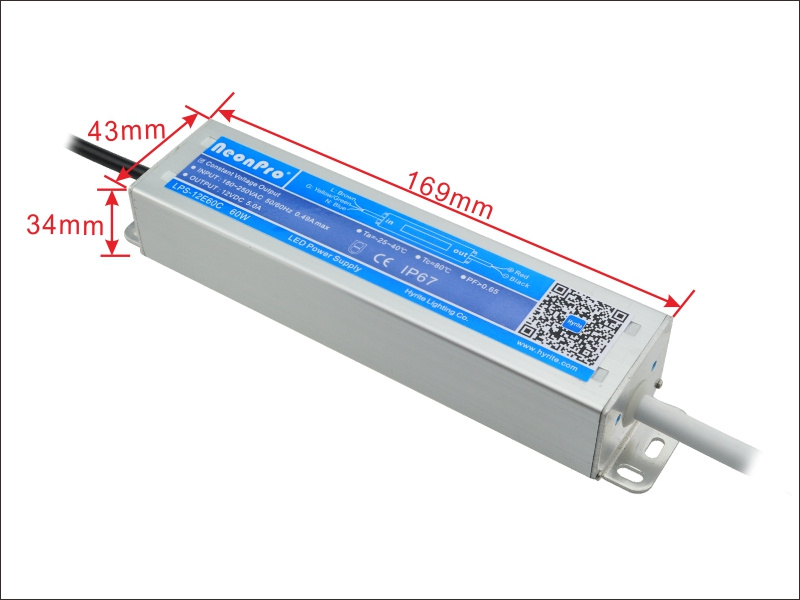

*Dimensions(LWH)*	199x43x34mm
Weight(kg)	0.5 KG
Packing information	20 PCS/Carton, G.W 10 KG
*Packing Dimensions(LWH)*	440x215x143mm

4.Detail pictures

5.Successful Applications & Workshops & Exhibitions

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
