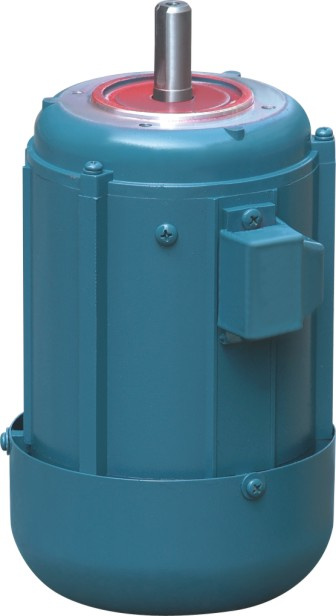

60W ~ 180W Resistance Start Single Phase Induction Motor

Name: 60W ~ 180W Resistance Start Single Phase Induction Motor
Brand: all-electronics-online.com
SKU: 722090425
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	US $ 22-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YU63-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Special Voltages
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Yu Series Single Phase
Starting Mode:	Resistance Start
Certification:	Ce
Brand:	Yinda

Product Description

Resistant Start Single Phase Electric Motor

Standard features:
Single-phase, II and IV pole, 50Hz
60W-250W
Squirrel cage rotor / Aluminum die cast
IEC dimensions
B3 Mounting
Continous duty: S1
Protection grade: IP44
Insulation class: B
Voltage: 220V

Optical features:
Aluminum Housing
Special Voltages and frequency
Mounting type: B5/B14/B34

APPLICATIONS:

Home appliances, fans, pumps, food and medical machinery etc.

Technical Data:

TYPE	POWER KW	HORSEPOWER HP	VOLTAGE V	CURRENT A	FREQUENCY HZ	SPEED R/MIN	EFFICIENCY %	POWER FACTOR COS	LOCKED-ROTOR CURRENT/RATED CURRENT	LOCKED -ROTOR TORQUE/RATED TORQUE	MAX TORQUE/RATED TORQUE	NOISE LwdB(A)
YU631-2	0.09	0.12	220	1.09	50	2800	56	0.67	11.01	1.5	1.8	70
YU632-2	0.12	0.16	220	1.36	50	2800	58	0.69	10.29	1.4	1.8	70
YU711-2	0.18	0.25	220	1.89	50	2800	60	0.72	9	1.3	1.8	70
YU712-2	0.25	0.33	220	2.4	50	2800	64	0.74	9.17	1.1	1.8	70
YU631-4	0.06	0.08	220	1.23	50	1400	39	0.57	7.32	1.7	1.8	65
YU632-4	0.09	0.12	220	1.64	50	1400	43	0.58	7.32	1.5	1.8	65
YU711-4	0.12	0.16	220	1.88	50	1400	50	0.58	7.45	1.5	1.8	65
YU712-4	0.18	0.25	220	2.49	50	1400	53	0.62	6.83	1.4	1.8	65

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
