60W 350mA Waterproof LED Driver

Name: 60W 350mA Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 748005185
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	US $ 2.45-2.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-635-CC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	60W
Output:	Constant Current
Input Voltage:	100-260V
IP Rating:	IP67 Waterproof
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	17042.531mm
Case:	Aluminum
Operating Temperature:	-25~40 Degree
Connection Input/Output:	Terminal or Wire
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Current
Certification:	Ce, RoHS, EMC Test
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

60W 350mA IP67 Constant Current Waterproof LED Driver for Spot Light with CE

Features for Waterproof LED driver:
*Protections: Short circuit/ over load/ over voltage/ over temp.
*Build-in thermal protection, short circuit protection
*Constant voltage or constant current output
*100% full load burn-in test
*Aluminum case, IP67
*2 years warranty
*CE approval.

Environment for Waterproof LED driver:
-Operating temperature: Max.50ºC
-Operating surface temperature: Max.70ºC

Application for Waterproof LED driver:
*Designed for spot light, down light, wash light, panel light, or other signage, decoration, lighting applications

Note for Waterproof LED driver:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 1-7 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 carton (Samples are available)

Shipping for Waterproof LED driver:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification for Waterproof LED driver:

Model no.	OS-633-CC-700
Model series	OS
Input voltage	100-260 VAC/170-260 VAC 50/60 Hz
Power	7 W max
Output type	Constant current
Output voltage	Max.14 V
Output current	700mA
Typical LED loading	5~7 *1 W
Operating temperature	-25~50ºC
Installation	Indoor
Cooling	Free air convection
Connection input/output	Input:0.5mm²x2(15cm) Output:0.5mm²x2(15cm)
Dimensions(LWH)	453021 mm
Weight(kg)	0.1000

Model no.	OS-635-CC
Model series	OS
Input voltage	100-260 VAC/170-260 VAC 50/60 Hz
Power	60 W max
Output type	Constant current
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
IP Rate	IP67
Operating temperature	-25~40ºC
Installation	Waterproof
Certificates/standards	CE
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Dimensions(LWH)	17042.531mm
Packing information	100Pcs/ Carton, G.W 5KG

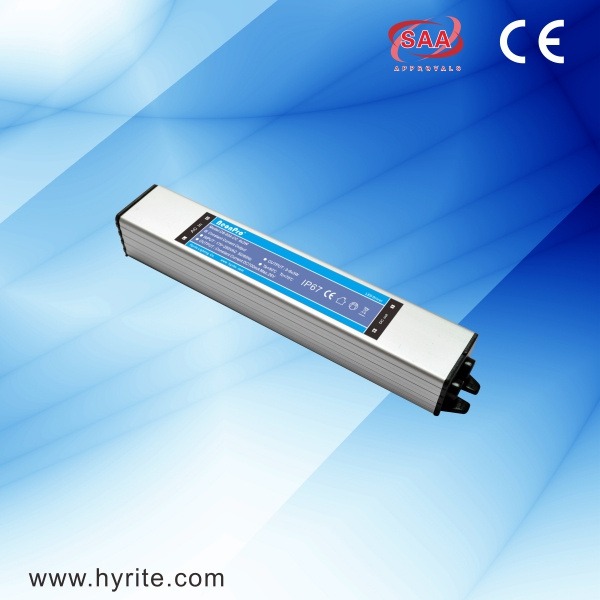

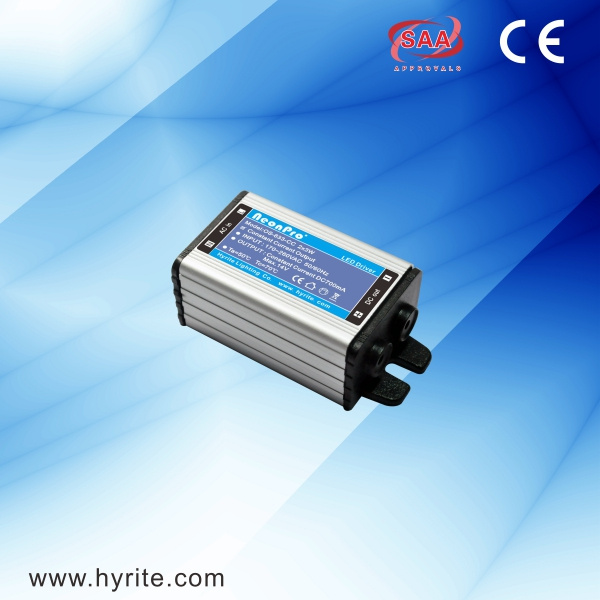

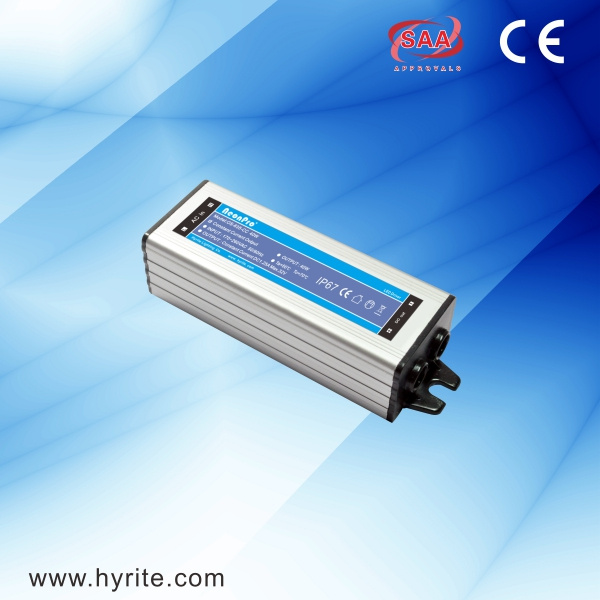

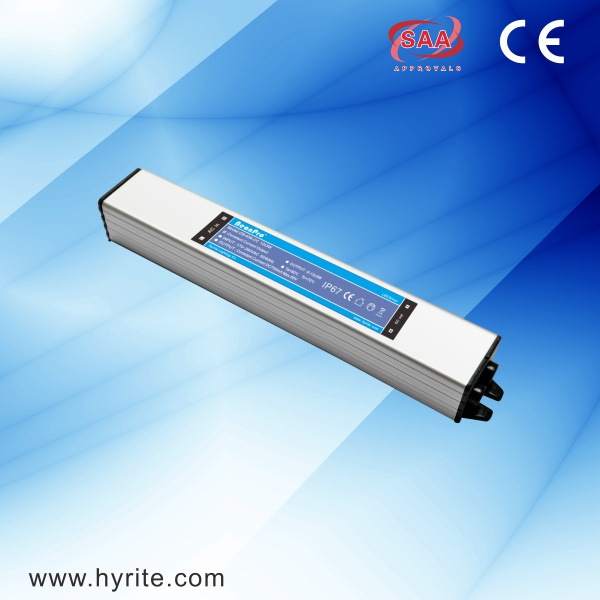

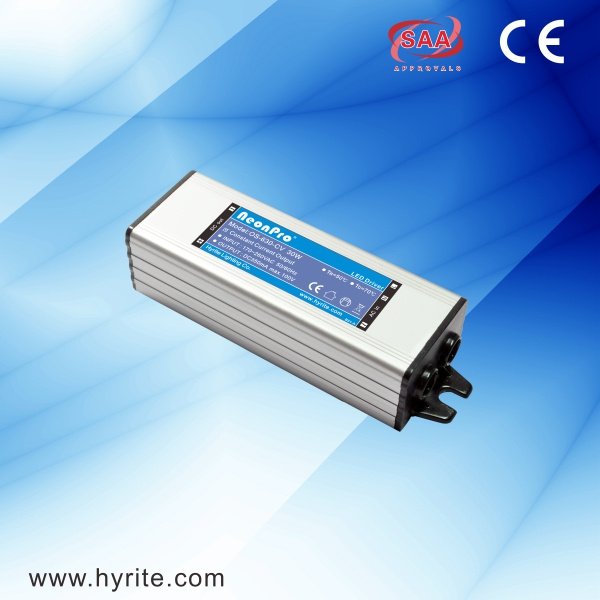

Pictures for Waterproof LED driver:

Projects for Waterproof LED driver:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
