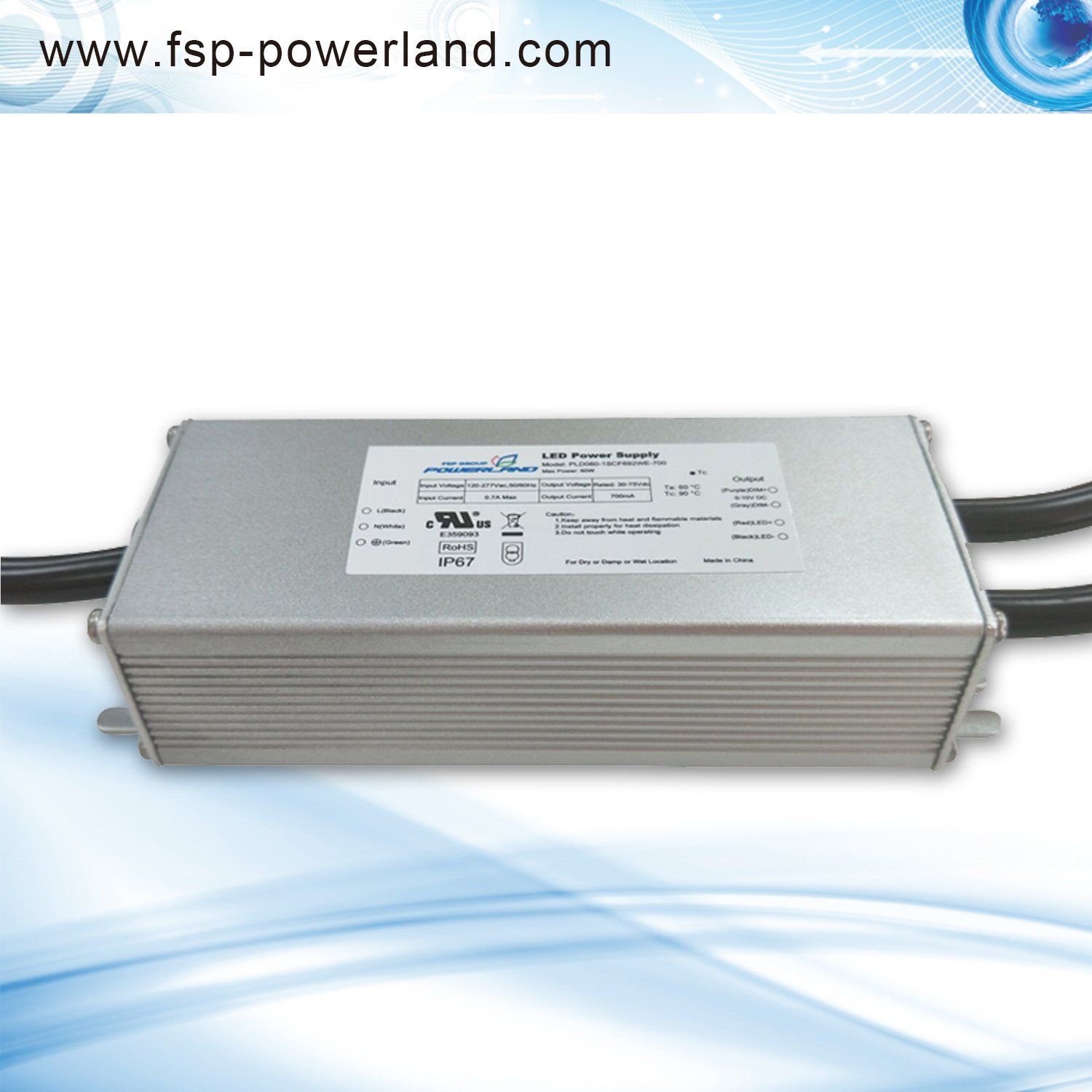

60W 400~800mA Outdoor Programmable Constant Current LED Driver

Name: 60W 400~800mA Outdoor Programmable Constant Current LED Driver
Brand: all-electronics-online.com
SKU: 816410455
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 11.7-18.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD060-1SCF692WE-800
Output Power:	60W
Dimming:	0~10V, PWM, External Resistor, Clock
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	141X48X32 mm
Brand:	Fsp-Powerland

Product Description

60W 400~800mA Programmable Constant Current LED Driver

PLD060-1SCF692WE-800 offers digital programmable drivers with wide-range adjustable output current and 108~305Vac universal input.

The output current of this driver is programmable at 400~800mA, and designed for 0(0.1)-10V/PWM/Rset/Clock dimming applications

Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels

Features
Ultra-deep dimming down to 1%, with dimming-off control
> 70,000 hours lifetime at 75ºC Tcase

> 7 years warranty at 75oC Tcase
Constant current output

Output current programmable
Compatible with 0(0.1)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13

EMC according to FCC Part 15 Class A

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD060-1SCF692WE-800
Output Voltage	30~75V
Output Current	400~800mA
Dimming	0~10V, PWM, External Resistor, Clock
Current Programmable	Yes
Output Power	60W
Max. Current Ripple	±40%
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.7A
Max. Input Power	71W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	89%
Max. Open Circuit Voltage	90V
THD	<20% @ 120Vac/277Vac & 80~100% full load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~60ºC
Max. Case Temperature	90ºC
Surge Protection	Line to Line 1kV, Line To Earth 2kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class A
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	141x48x32 mm (5.55x1.89x1.26 inch) Aluminum Case
Mounting Length	127 mm (5 inch)/ 60 mm (2.36 inch)
Overall Length	141 mm (5.55 inch)/ 118 mm (4.65 inch)
Weight	0.37 kg (0.82 lb)
Life Time	>50,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

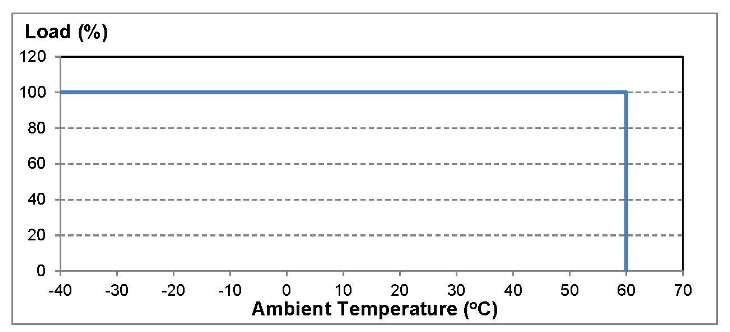

Derating Curve

Electrical Specifications
I-V Programming Area: Output Voltage vs. Output Current

Electrical Specifications

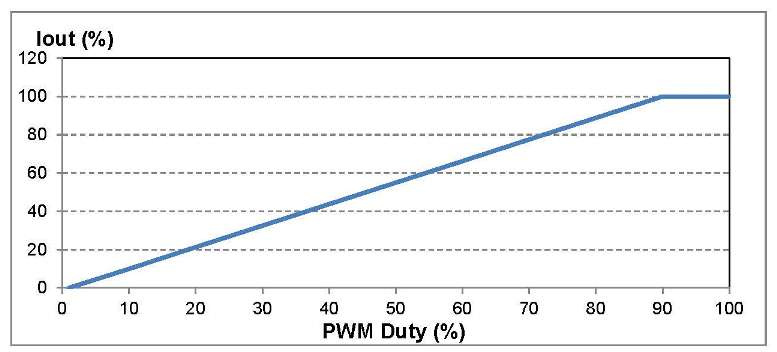

Output Current vs. PWM Dimming Duty Cycle

Performance Characteristics

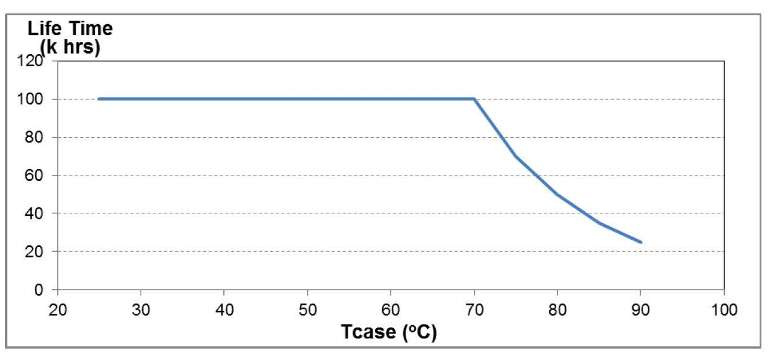

Life Time vs. Case Temperature

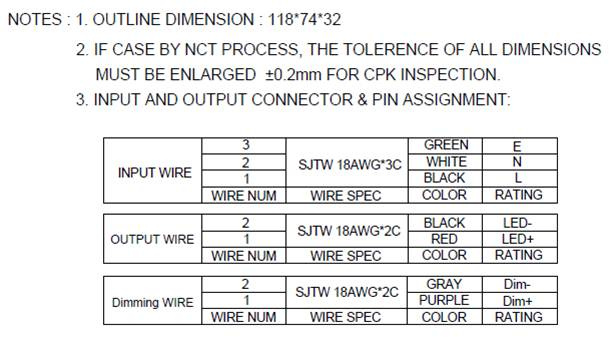

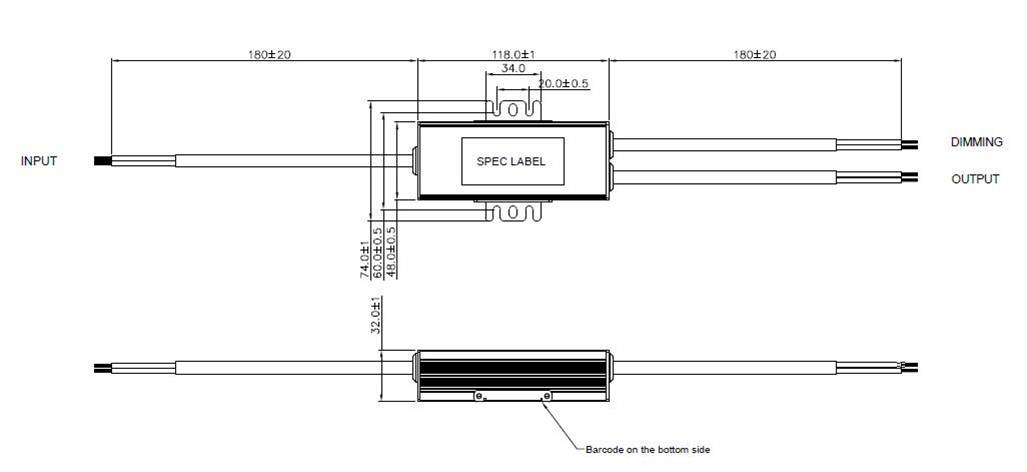

Mechanical Specification
