60W 5V 15V -15V Triple Switching Power Supply

Name: 60W 5V 15V -15V Triple Switching Power Supply
Brand: all-electronics-online.com
SKU: 730824432
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 8-8.5/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-60C
Efficiency:	90%
Output Current:	5A 2A 0.5A
Output Voltage:	5V 15V -15V
Protection:	Short Circuit/Over Load/Over Voltage
Input:	90V-130VAC
Sample Day:	a Week
Leadtime:	25 Days
Output Type:	Triple
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Product Description

1. Product Description

Item	T-60C			T-60D
	CH1	CH2	CH3	CH1	CH2	CH3
Output voltage	5V	15V	-15V	5V	12V	24V
Output voltage error(Note:2)	±2%	6%	±6%	±2%	6%	±6%
Rated output current	5A	2A	0.5A	5A	1A	1A
Output current rage	1-5A	0.2-2A	0-0.5A	1-5A	0.2-1A	0-1A
Wave and noise(Note:3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%
Load stability(Note:5)	±1%	±4%	±1%	±1%	±4%	±1%
Output power	62.5W			61W
Efficiency	72%			72%
Range for DC voltage	CH1;+10,-5%			CH1;+10,-5%
Input voltage range	85~132VAC/170~264VAC/47~63Hz;240~370VDC

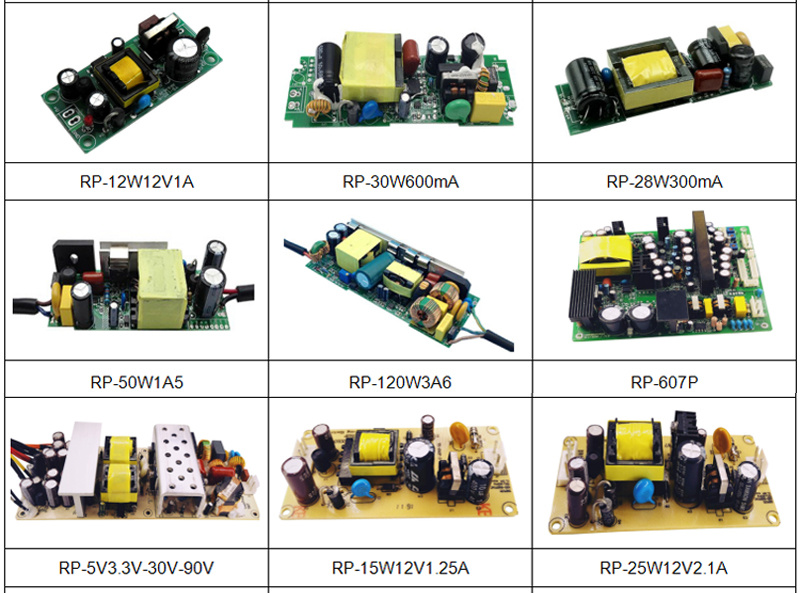

2. More products for your reference:

4. Certificate

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
