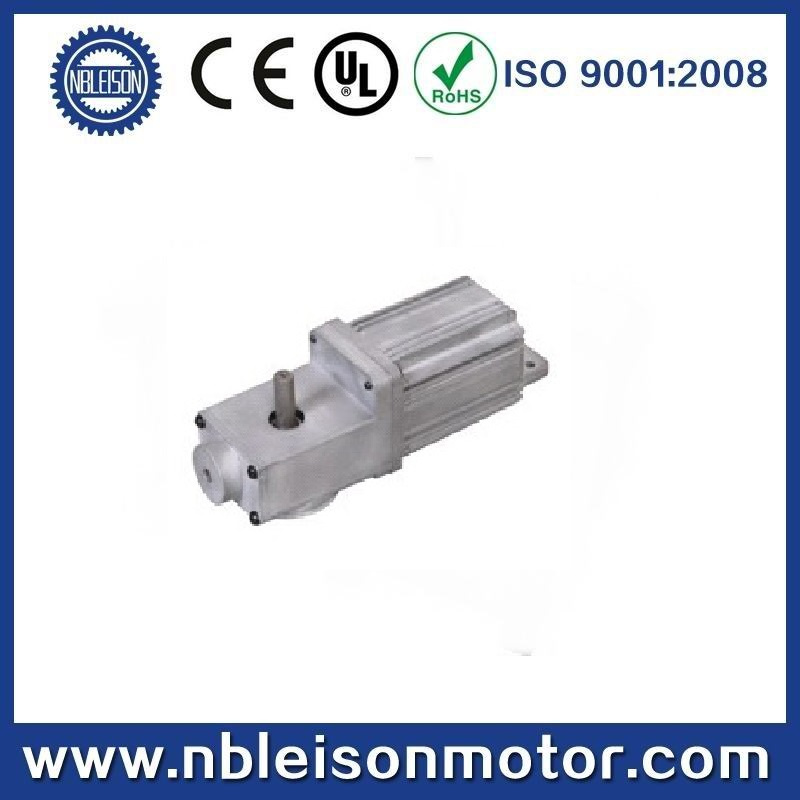

60W Brushless Electric Roller Shutter Door Motor

Name: 60W Brushless Electric Roller Shutter Door Motor
Brand: all-electronics-online.com
SKU: 721924185
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 45.8-70/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDMJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brushless
Rotation Direction:	Reversible
IP:	20
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Robot, Toys, Door Lock, Monitor

Product Description

1) Voltage: 24

2) Reduction ratio: 1:8.5
3) Speed: 270rpm load speed
4) Power: 60W

Mode	Voltage	Power	No-load Parameters		Load Parameters			Allowable Torque Gear Motor		Motor Weight
Mode	V	W	Speed r/min	Current A	Speed r/min	Torque mN. m	Current A	GK8.5 mN. m	GK13 mN. m	Kg
LDMJ-1	24	60	2300	0.4Max	1800	318	4.0	1840	2650	1.2
LDMJ-2	90	60	2300	0.3Max	1800	318	1.1	1840	2650	1.0
LDMJ-3	24	60	3000	0.6Max	2500	229	4.0	1320	2000	1.2
LDMJ-4	24	60	3000	0.6Max	2500	229	4.0	GX12.5/1950		1.0

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
