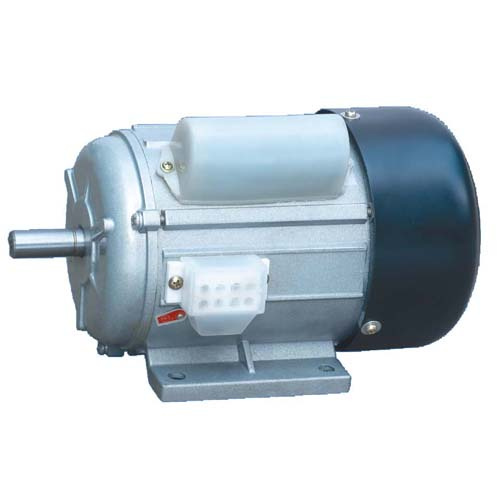

60W Capacitor Run Single Phase Motor

Name: 60W Capacitor Run Single Phase Motor
Brand: all-electronics-online.com
SKU: 638655795
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 20-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YY series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	60W ~ 2200W
Voltage:	220V, 110V, 230V, 240V, 100V
Frequency:	50Hz or 60Hz
Package:	Honeycomb Carton
Warranty:	12 Months
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Yy Series Capacitor Run

Product Description

60W ~ 2200W Capacitor Run Single phase Motor

Standard features:

Single-phase, II and IV pole, 50Hz or 60Hz
Squirrel cage rotor / Aluminum die cast
IEC dimensions
B3 Mounting
Continous duty: S1
Protection grade: IP44
Insulation class: B
Voltage: 220V

Optical features:
Aluminum Housing
Mounting type: B5/B14/B34

APPLICATIONS:
Home appliances, fans, pumps, food and medical machinery etc.

Technical Data:

Type	Rated Output	Speed	Voltage	Frequency	Efficiency	Power factor	In	Is	Ts	Nosie
	kW	r/min	V	Hz	%	Cos Φ	A	A	Tn	Lw dB(A)
YY561-2	0.09	2800	220	50	56	0.92	0.8	2.5	0.5	70
YY562-2	0.12	2800	220	50	60	0.92	0.99	3.5	0.5	70
YY631-2	0.18	2800	220	50	65	0.92	1.4	5	0.4	70
YY632-2	0.25	2800	220	50	66	0.92	1.9	7	0.4	70
YY711-2	0.37	2800	220	50	67	0.92	2.7	10	0.35	75
YY712-2	0.55	2800	220	50	70	0.92	3.9	15	0.35	75
YY801-2	0.75	2800	220	50	72	0.92	5.2	20	0.33	75
YY802-2	1.1	2800	220	50	75	0.95	7.1	30	0.33	78
YY90S-2	1.5	2800	220	50	76	0.95	9.5	45	0.3	83
YY90L-2	2.2	2800	220	50	77	0.95	13.7	65	0.3	83
YY561-4	0.06	1400	220	50	50	0.9	0.61	2	0.45	65
YY562-4	0.09	1400	220	50	52	0.9	0.86	2.5	0.45	65
YY631-4	0.12	1400	220	50	57	0.9	1.1	3.5	0.4	65
YY632-4	0.18	1400	220	50	59	0.9	1.5	5	0.4	65
YY711-4	0.25	1400	220	50	61	0.92	2	7	0.35	65
YY712-4	0.37	1400	220	50	62	0.92	3	10	0.35	70
YY801-4	0.55	1400	220	50	64	0.92	4.3	15	0.35	70
YY802-4	0.75	1400	220	50	68	0.92	5.5	20	0.32	70
YY90S-4	1.1	1400	220	50	71	0.95	7.5	30	0.32	73
YY90L-4	1.5	1400	220	50	73	0.95	9.9	45	0.3	78

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
