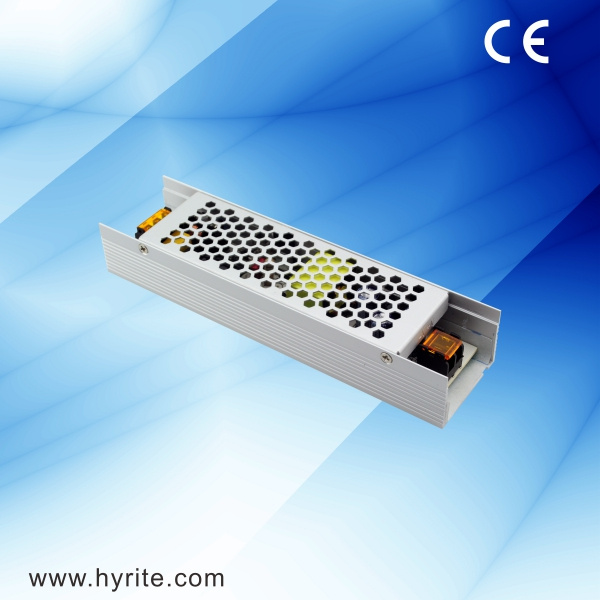

60W Constant Voltage Indoor LED Driver with Ce

Name: 60W Constant Voltage Indoor LED Driver with Ce
Brand: all-electronics-online.com
SKU: 748435685
Availability: InStock
Rating: 4.7 (21 reviews)

Price:	US $ 2.5-2.55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-5/12/24 E60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	60W Max
Output:	Constant Current or Constant Voltage
Input Voltage:	170-260V
IP Rating:	IP67
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	17042.531mm
Case:	Aluminum
Certificates/Standards:	CE
Operating Temperature:	-25~40 Degree
Usage:	Construction, Building
Circuit Structure:	Electronic Step-down Transformer
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, RoHS, EMC Test
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

HS Series CV Indoor LED Driver high efficient slim size with CE ROHS BIS

Quick Overview

-Slim body, special design for application with narrow space such as slim LED light box/display cabinet lighting;
-Constant voltage output
-For indoor use only

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Feature of the outdoor waterproof LED driver :

Model no.	HS-5/12/24 E60
Model series	HS
Input voltage	220-240VAC 50Hz/60Hz
Power	60W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC/12VDC/24VDC ± 5%
Output current	12A/5A/2.5A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1824630 mm
Weight(kg)	0.3000

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
