Hyrite Lighting Co. >> 60W Constant Voltage Waterproof LED Driver with Saso

60W Constant Voltage Waterproof LED Driver with Saso

60W Constant Voltage Waterproof LED Driver with Saso
Price: US $ 9.09-10.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: LPS-24E60B
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power: 60W
Input Voltage: 170-250V
Output Voltage: 24V
Output Current: 2.5A
Power Factor: Low
Efficiency: 86%
IP Rating: IP 67
Certificates/Standards: CE/SAA
Weight(Kg): 0.66
Dimensions(L*W*H): 161*64*40.5 Mm
Usage: Digital Products
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: PWM Controlled
Power Supply Voltage: AC170-250V
Brand: Neonpro

Product Description

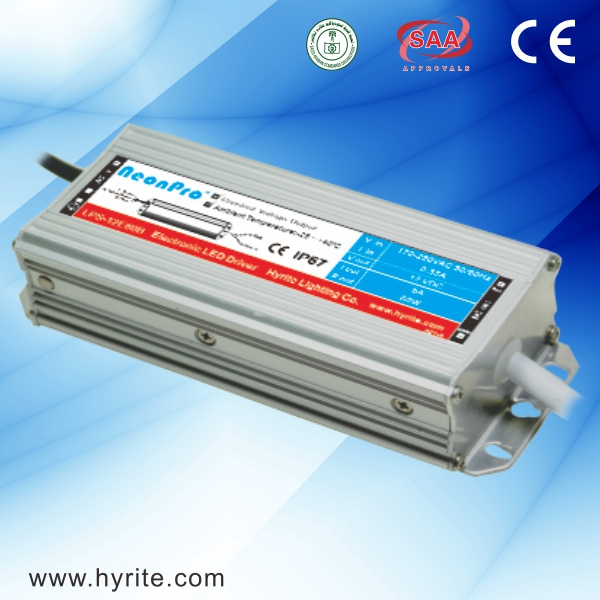

24V 60W IP67 Constant Voltage Waterproof LED Power Supply with CE SAA


Features of LED Driver
  1. Extremely Small in Size; for application with narrow space; save transportation charge; easy for installation
  2. Efficiency Up to 90%; save more than 8.5% Electric Power; lower running temperature;
  3. Perfectly sealed with resin to ensure the ultra durable life
  4. Simple and High Class looking appearance;
  5. Trade Terms: EXW, FOB, CIF and CNF term available
    Lead time of the waterproof LED driver : 15 days after order confirmation
    Payment terms: L/C, T/T, Western Union
    MOQ: 1 pc


Technical Specification of the IP67 waterproof LED power supply :
Model no.LPS-24E60B
Input voltage170-250 VAC 50/60 Hz
Max. power60W max
Output typeConstant voltage
DimmingNo
Built-in active PFCNo
Power factorLow
Efficiency86%
AC inrush current(max.)Cold start, 40A@230VAC
Output voltage24VDC ± 5%
Output current2.5A max
Overload protection>130% hiccup mode, auto-recovery
Over voltage protection120% rated output voltage
Withstand voltageI/P~O/P:1.5kVAC, 1 minute
Operating temperature-25~40 degree
InstallationOutdoor waterproof
IP ratingIP 67
CoolingFree air convection
Certificates/standardsCE/SAA
Connection input/outputInput:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Dimensions(L*W*H)161*64*40.5 mm
Weight(kg)0.66
Packing information10Pcs/ Carton, G.W8.5KG

Applications of LED Driver
* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting


Important Parameter of LED Driver:
* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67

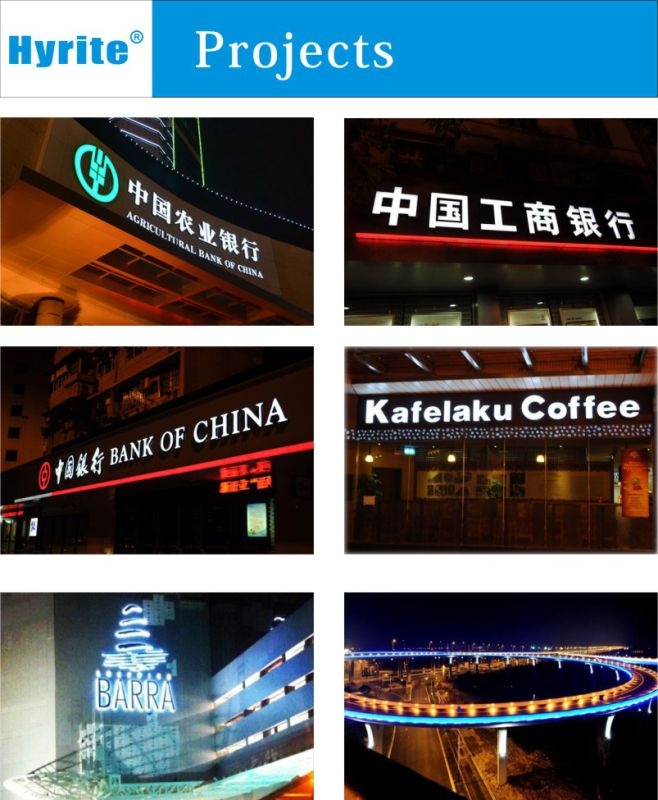

Projects around the world:
Our projects covering banks, shops and buildings all over the world.
* LED Power Supply suitable for Office lighting, Artwork lighting, Display case
* Home lighting
* Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
* Hotel, Restaurant lighting
* Other public lighting




Our factory and production line:
Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA

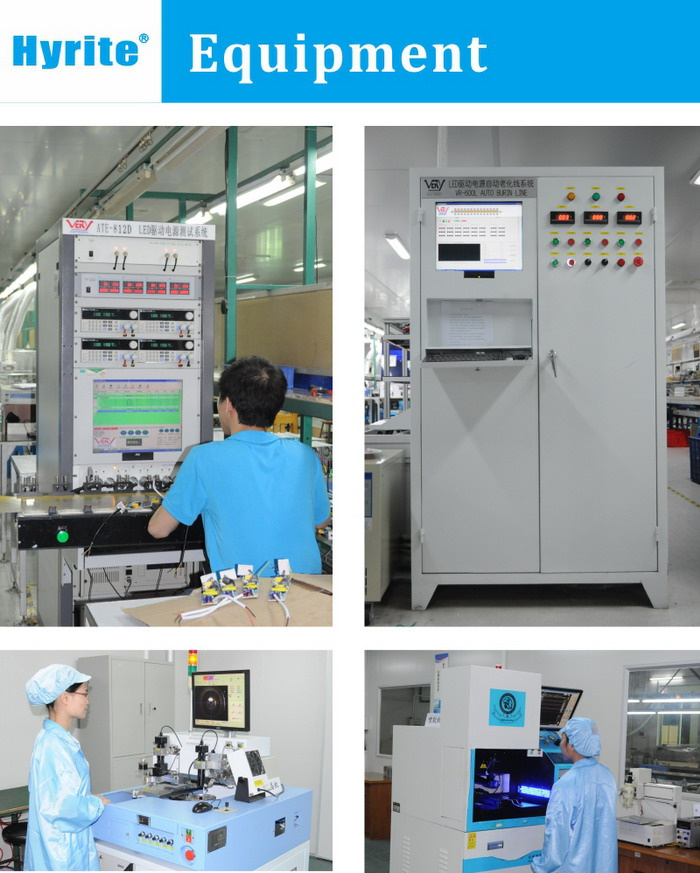

(2)Professionnal testing machine: SMT, Burn-in test machine...

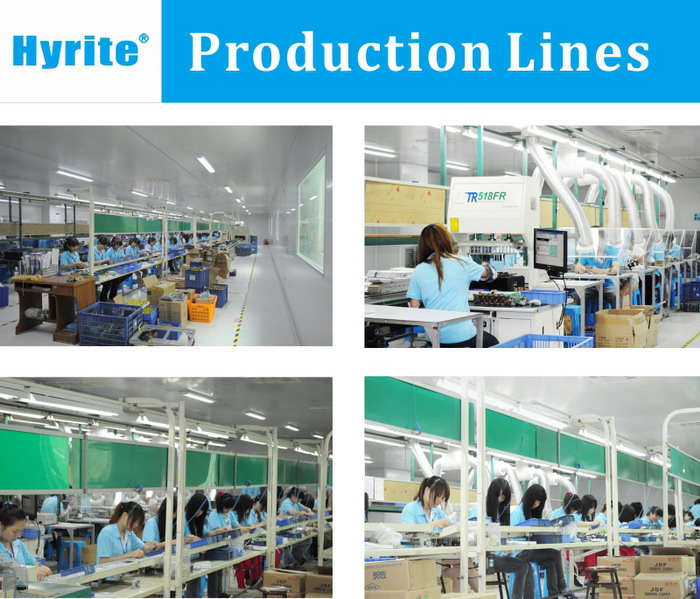

(3) Production lines:
There are 12 production lines in our factory.








Our Exhibitions:
Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair.




Shipping Method:

* Ocean or Air transportation
* International Express:DHL FedEx TNT UPS EMS etc.



Our Service & Advantages:

* 24 hours Service for customers all over the world
* More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
* All of our products are sold to overseas market.
* Our products passed CE ROHS SASO TUV SAA UL approval.


Welcome to our factory!
Only 45 mins away from Guangzhou International Baiyun Airport.

Contact Info:

Company Name: Hyrite Lighting Co. (known as NeonPro)
Address:15 Junye RD, Shishan Industry Zone C, Shishan, Nanhai, Guangdong,P.R.China, 528225

Tel: +86-757-81200188(10 lines)
Fax: +86-757-81200369
Customer Service: 400 660 8083 (China), +86-757-81200368(Overseas)

Website: www.hyrite.com

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
