60W DC24V LED Switching Power Supply

Name: 60W DC24V LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 702200072
Availability: InStock
Rating: 4.8 (44 reviews)

Price:	US $ 7/Piece
Trade Terms:	FOB,EXW
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MBS-60-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	>2years
Weight:	0.50kgs
Package:	15.8kgs/30PCS
AC Input:	85~264VAC
DC Output:	DC24V
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled

Product Description

Product Description:

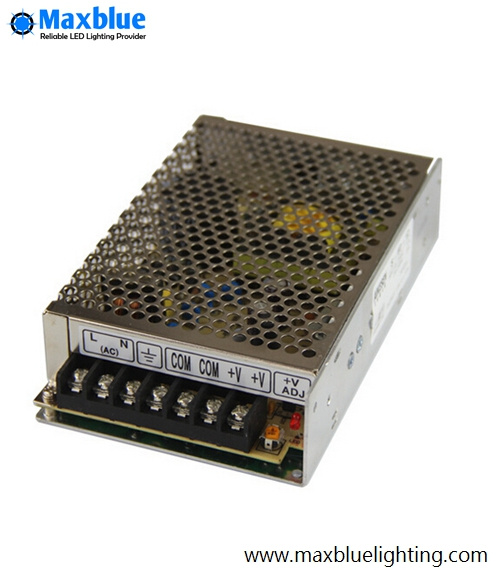

60W DC24V LED Strip Transformer (MBS-60-24)

Product Specification

AC Input	85~264VAC 47-63Hz
DC output	DC24V 0~5A
Adjustable range for DC voltage	± 10%
AC Inrush current	Cold-start current 15A/115V 30A/230V
Over Load Protection	105%-150% rated output power
Over Voltage Protection	115%-135% hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 1.5Kv I/P-FG: 1.5KV O/P-FG: 0.5KV 1minute
LINE REGULATION	± 0.5%
Load REGULATION	± 1%
Efficiency	81%
Working temperature	-10º C - +50º C, 20%~90% RH
Safety Standards	Design refer to U11012, TUV EN60950-1 approved
EMC Standards	Design refer to EN55022 Class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204
Connection Way	5pins 9.5mm
Weight	0.50Kg

Protection: Short circuit / Over load protection/ Over voltage protection
Indoor use, Non-waterproof

delivery time: 7-10 working days after confirmation
warranty: 1 year
trade term: EXW or FOB
Payment: paypal onr TT

Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor LED lighting and commercial LED decoration, devoting to delivering eco-friendly, affordable and stable LED products for the customers. Now we focus on LED flexible strip, LED linear light, LED COB downlight, LED panel light, LED track light, LED High Bay Light, LED wall washer etc.

With our ISO9001: 2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.

Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
