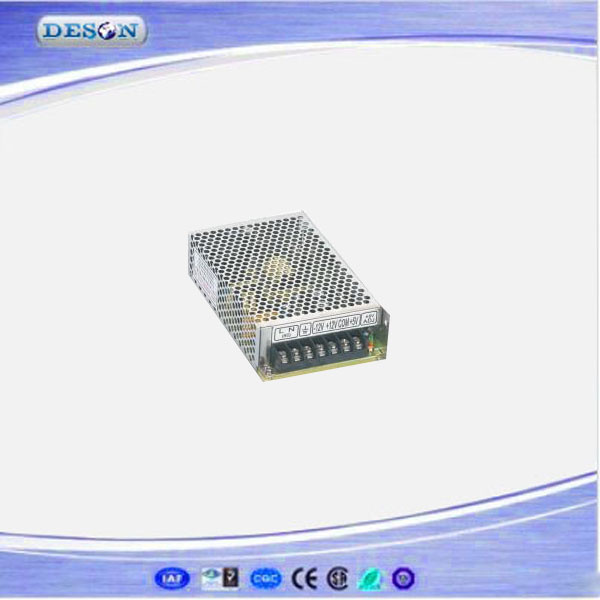

60W Dual Output Switch Power Supply

Prod Model:	D-60
Power:	60W
Input:	85 ~ 132VAC / 170 ~ 264VAC Selected by Switch 240
Output:	5V/12V/24V
Size:	129X97X35mm
Weight:	0.41kgs
Output Type:	Dual
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	60W
Brand:	Deson
Energy Transmission:	Switch Power Supply

Product Description

60W Dual Output Switch Power Supply

1.Universal AC Input
2.Compact size, light weight.
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Dual Output Channel
7.Soft-start current can reduce  the AC input impact effecticly
8. 2 years warranty


Product Description

Model	D-60A		D-60B
	CH1	CH2	CH1	CH2
DC output voltage	5V	12V	5V	24V
Output voltage range(Note:2)	±2%	±6%	±2%	±5%
Rated output current	4A	3A	3A	1.8A
Output current range	0.3-6A	0.2-4A	0.3-6A	0.2-2.2A
Wave and noise(Note:3)	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±0.5%	±1%
Load stability(Note:5)	±0.5%	±4%	±0.5%	±4%
DC output power	56W		58W
Efficiency	73%		73%
Adjustable range for DC voltage	CH1; +10, -5%		CH1; +10, -5%
AC input voltage range	85~264VAC ,47~63Hz;120~370VDC
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A//115V,60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	200ms,50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.55Kgs
Safety standards	UL 1950 TUV EN60590
EMC standards	CISPR22(EN55022)class B, IEC801-2,3,4 IEC555-2 Verification
