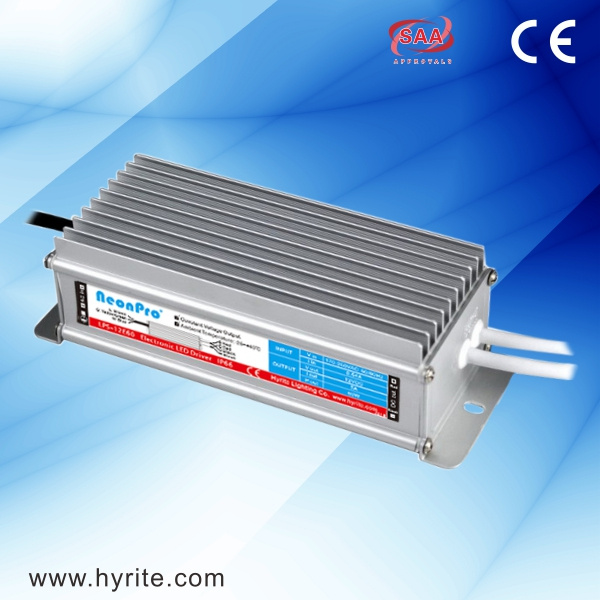

60W IP67 Constant Voltage LED Switching Mode Power Supply

Name: 60W IP67 Constant Voltage LED Switching Mode Power Supply
Brand: all-electronics-online.com
SKU: 740202925
Availability: InStock
Rating: 5 (149 reviews)

Price:	US $ 15.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-5E60B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	60W
Input Voltage:	170-250V
Output Voltage:	5V
Output Current:	12A
Power Factor:	Low
Efficiency:	86%
IP Rating:	IP 67
Certificates/Standards:	CE/SAA
Dimensions(LWH):	236.56440.5mm
Packing Information:	10PCS/ Carton, G.W8.5kg
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

5V 60W IP67 Constant Voltage DC-Output PWM LED Driver

Feature:
*External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test

Brief Introduction:

Model no.	LPS-5E60B
Model series	LPS-B
Input voltage	170-250 VAC 50/60 Hz
Power	60 W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	80%
Output voltage	5VDC ± 5%
Output current	12 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*1 (18cm)
Dimensions(LWH)	1616440.5 mm
Weight(kg)	0.9
Packing information	10 Pcs/ Carton, G.W 8.5KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
