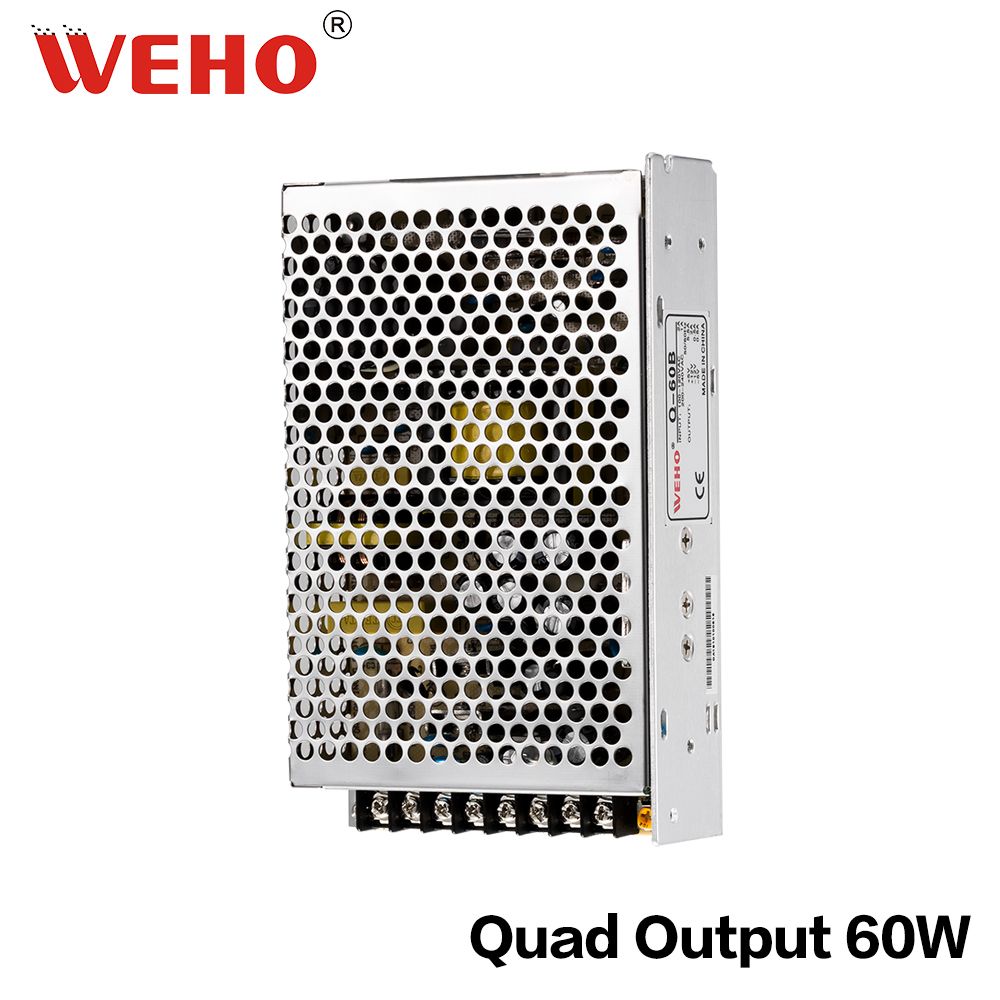

60W Quad Output Series SMPS LED Power Supply

Name: 60W Quad Output Series SMPS LED Power Supply
Brand: all-electronics-online.com
SKU: 690895211
Availability: InStock
Rating: 4.3 (110 reviews)

Price:	US $ 6.99-11.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q-60
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Quad
Warranty:	2 Years
Output Power:	51 - 100W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Input Voltage:	110V/220V
Brand:	Weho

Product Description

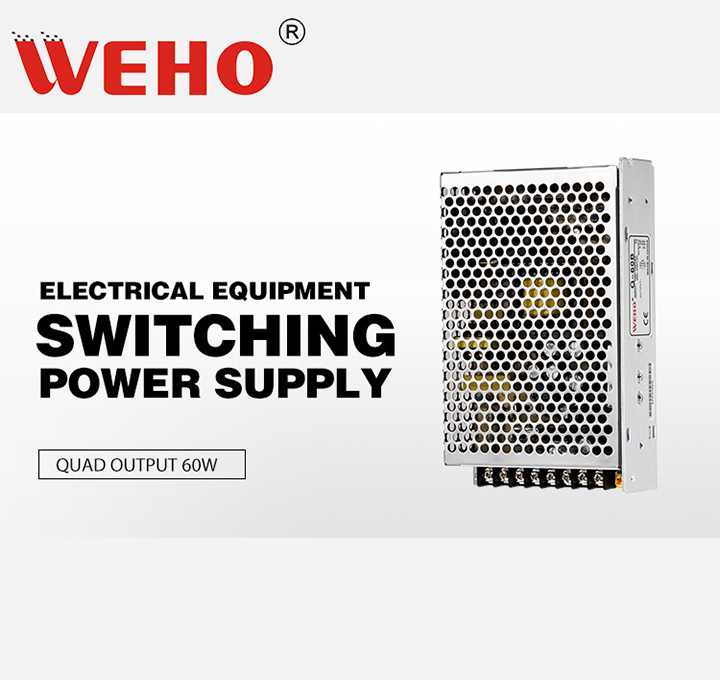

60W quad output series smps led power supply

MODEL		Q-60B				Q-60C
MODEL		CH1	CH2	CH3	CH4	CH1	CH2	CH3	CH4
OUTPUT	DC VOLTAGE	5V	12V	-5V	-12V	5V	15V	-5V	-15V
	VOLTAGE TOLERANCE	±2%	±6%	±5%	±5%	±2%	±6%	±5%	±5%
	RATED CURRENT	5.5A	2A	0.5A	0.5A	5.5A	1.5A	0.5A	0.5A
	CURRENTRANGE	0.5-8A	0.1-3A	0-1A	0-1A	0.5-8A	0.1-3A	0-1A	0-1A
	RATED POWER	60W	60W	60W	60W	65W	65W	65W	65W
	RIPPLE &NOISE(MAX)	100mVp-p	120mVp-p	100mVp-p	120mVp-p	100mVp-p	120mVp-p	100mVp-p	120mVp-p
	DC VOLTAGEFRE QUENCYRANGE	CH1:+10,-5%
	SETUP,RISE,HOLD TIME	1.6ms,20ms,12ms/115VAC800ms,20ms, 60ms/230VAC
INPUT	VOLTAGERANGE	85~264 VAC47-63Hz;20~370VDC
	AC CURRENT	1.3A/115 V0.8A/ 230 V
	EFFICIENCY	70%
	INRUSH CURRENT	Cold start 18A/115V36A/230V
	LEAKAGE CURRENT
PROTECTION	OVERLOAD PROTECTION	150%~200% /115VAC Shut down O/P voltage, re-power on to recover
	OVER-VOLTAGE PROTECTION	CH1:5.75~6.75V
	HIGH TEMPERATURE PROTECTON	...
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10°C~+50°C;20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20°C~+85°C;10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:3KVACI/P-FG:0.5KVACO/P-FG:0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1950
STANDARDS	EMC STANDARDS	Design refer to EN55022,EN55024,EN61000, IEC801-2,3,4IEC555-2
OTHERS	WEIGHT	0.55Kg
OTHERS	PACKING	30pcs/17.8Kg/1CUFT

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

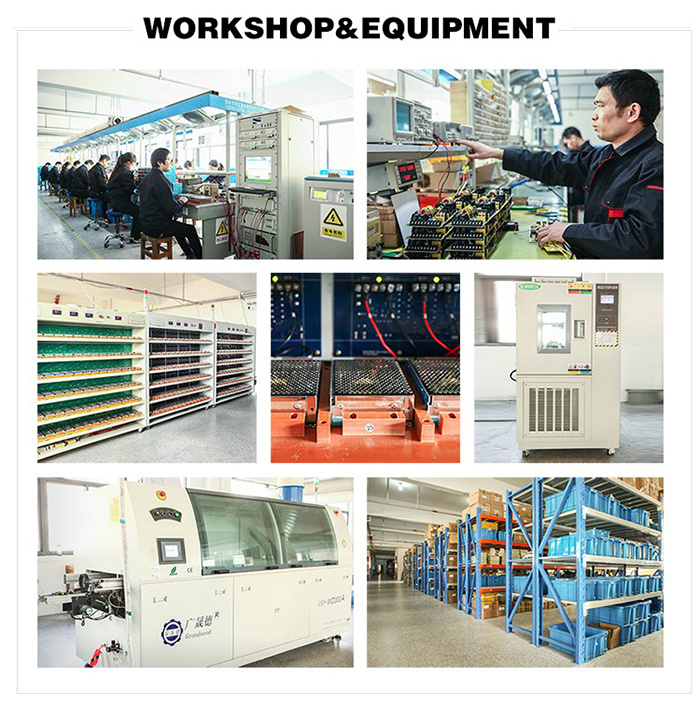

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
