60W Single Output DIN Rail Power Supply

60W Single Output DIN Rail Power Supply
Price: US $ 8.94-10.56/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: MDR-60W-5V
Workmanship: The Exquisite German Technology
Output Current: 0-6.5A
Output Frequency: 50/60Hz
Weight: 0.3kg
Advantage: High Efficiency, Long Life and High Reliability
Manufacturer: OEM
Condition: Original New
Output Type: Single
Warranty: 2 Years
Output Power: 51 - 100W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Winston

Product Description

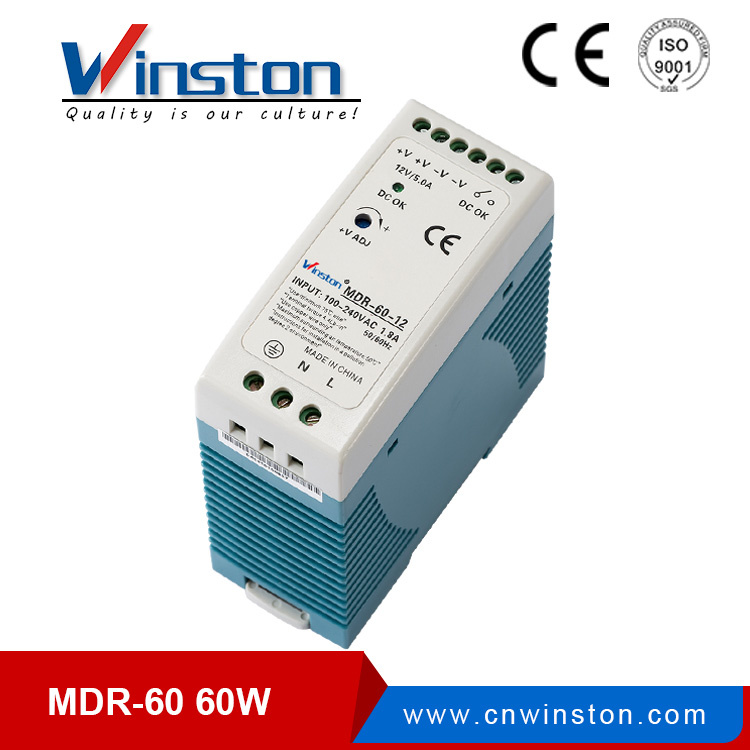

MDR-60W Single output DIN rail power supply (MDR-60-5 MDR-60-12 MDR-60-24 MDR-60-48)

1)High Efficiency, High Reliability, Low Cost
2)AC Input Range: 85~264VAC
3)100% Full Load Burn-In Test
4)Protections: Short Circuit / Over Load/Over Voltage
5)LED Indicator For Power On
6)Cooling By Free Air Convection
7)Approvals: CE RoHS
8)2 Year Warranty

MODELMDR-60-5MDR-60-12MDR-60-24MDR-60-48
DC Voltage5V12V24V48V
Current range0 ~ 10A0 ~ 5A0 ~2.5A0 ~ 1.25A
Rated power 50W60W60W60W
Wave and noise80mVp-p120mVp-p150mVp-p200mVp-p
Inlet wire stability±1%±1%±1%±1%
Load stability±1.5%±1%±1%±1%
Efficiency76%80%81%84%
Adjustable range for DC voltage±2%±1%±1%±1%
Setup, rise hold up time500ms, 30ms/230VAC     500ms, 30ms/115VAC at full load
Input Voltage range85 ~ 264VAC       120 ~ 370VDC 47-63Hz
Impact currentCold start current 30A/115VAC 60A/230VAC
Overload105%~150% cut off the output, automatic recovery
Over voltage120%-140% shut down O/P voltage, re-power on to recover
Working temperature-10ºC ~ +50ºC
Withstand voltageI/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation ResistanceI/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
DIMENSION40*90*100mm (W*H*D)
PACKING0.3Kg; 60pcs/21Kg/45.5*32.5*23cm

TRADE INFO

Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
