60W Slim Indoor Switching Power Supply for Lightbox

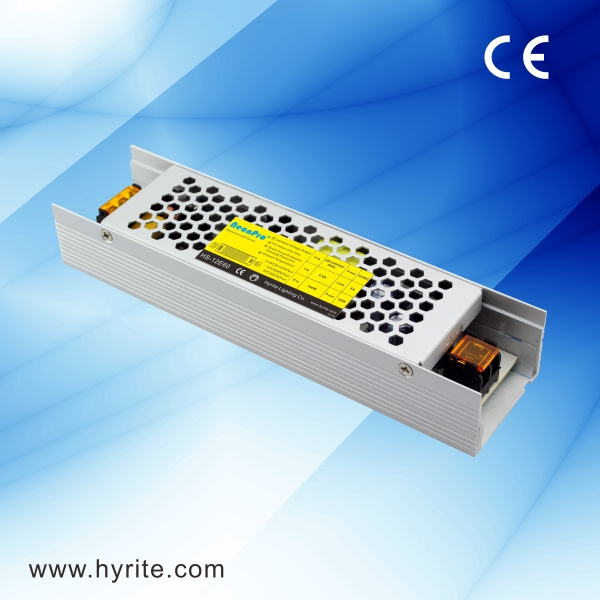

Name: 60W Slim Indoor Switching Power Supply for Lightbox
Brand: all-electronics-online.com
SKU: 716377962
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-12E60
Output:	60W
Input Voltage:	170-250V
Output Voltage:	12V/5V/24V
Efficiency:	88%
IP Rating:	IP 20
Dimensions(LWH):	1824630mm
Weight(Kg):	0.300
Packing Information:	50 PCS/ Carton, G.W 15 Kg
Power Factor:	Low~0.65
Dimming:	No
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Certification:	Bis
Power Supply Voltage:	170-250V
Brand:	Neonpro

Product Description

60W 12V Constant Voltage Waterproof LED Driver with Ce, Bis

Brief Introduction

Quick Overview

-Slim body, special design for application with narrow space such as slim LED light box/display cabinet lighting;
-Constant voltage output
-For indoor use only

Technical Specs

Model no.	HS-12E60
Input voltage	170-250 VAC 50/60 Hz
Max. power	60 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low~0.65
Efficiency	88%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	5A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

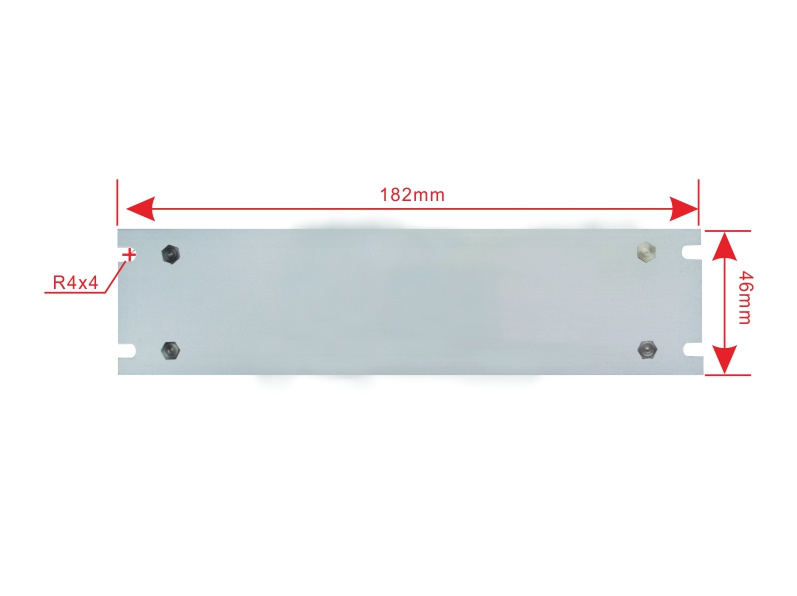

Dimensions(LWH)	1824630mm
Weight(kg)	0.300

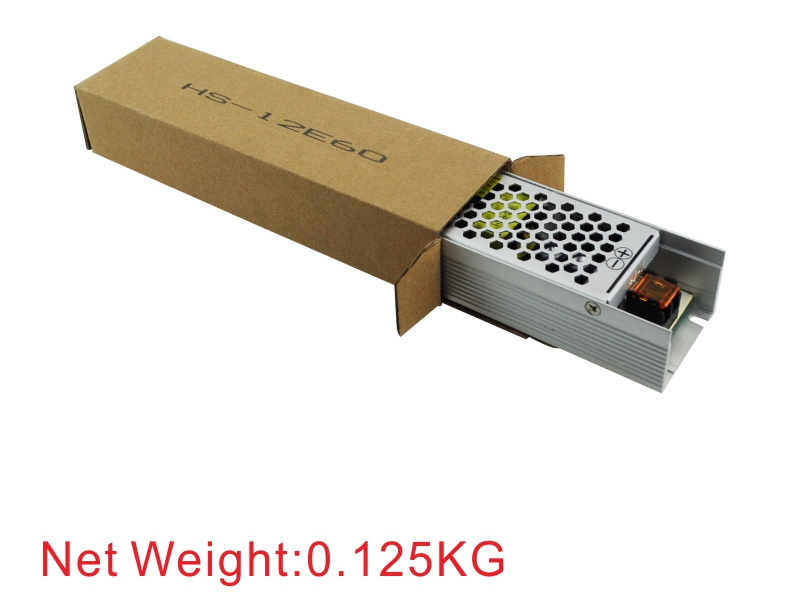

Packing information	50 Pcs/ Carton, G.W 15KG

Detail pictures:

Shipping Method:

*Ocean or Air transportation
*International Express:DHL FedEx TNT UPS EMS etc.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
