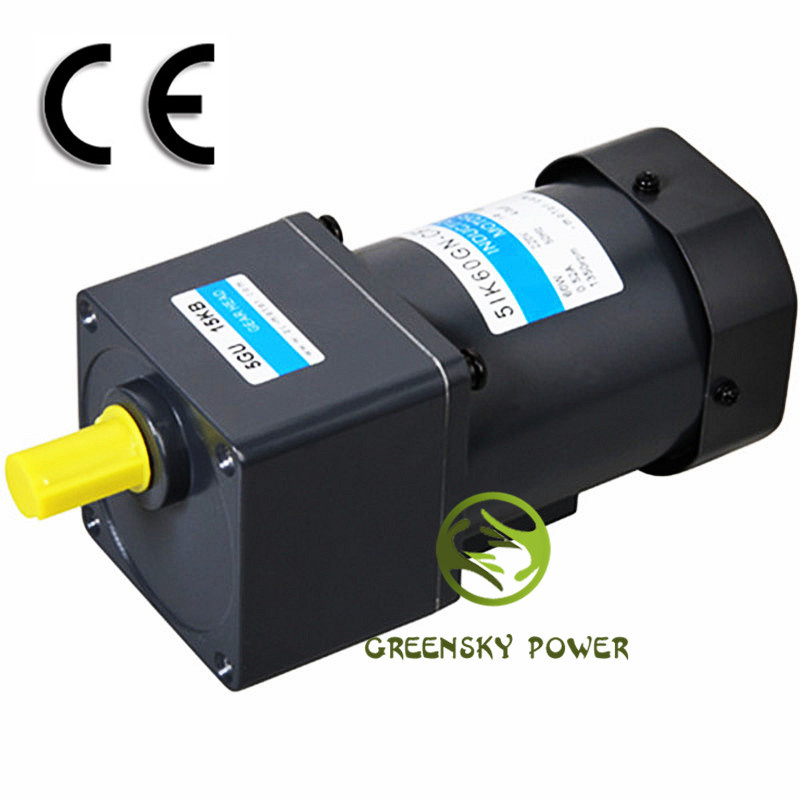

60W (stronger) Single Phase AC Induction Gear Motor

Name: 60W (stronger) Single Phase AC Induction Gear Motor
Brand: all-electronics-online.com
SKU: 743426405
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 25.4-31/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK60GU
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Power:	60W
Voltage:	220~230V/110V
Frequency:	50/60Hz
Rated Torque:	470mn.M
Number Of Stator:	Single-Phase
Function:	Control
Certification:	UL\CE\RoHS
Brand:	GS

Product Description

Introduction

Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specification

The datasheet is only for 60W AC Motor's info as reference.
The Power 6W~25W, 40W~180W is also can be provided.
Please feel free to tell us.Thanks.

Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

View Of Item

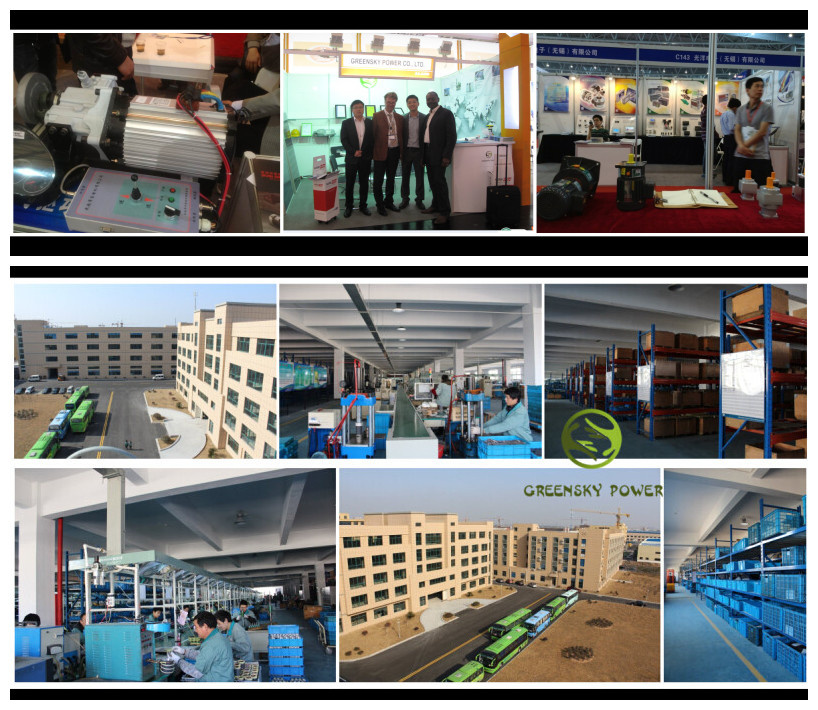

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage
On the site you can find a range of renewable products including AC/DC motor,AC Induction Motor,Reversible Motor,Blake Motor,Speed motor,AC Angel Motor,Gear Motor,Planetary Gear Box,Worm Gear Box and their relevant components.

If you have any other questions, please feel free to contact us.

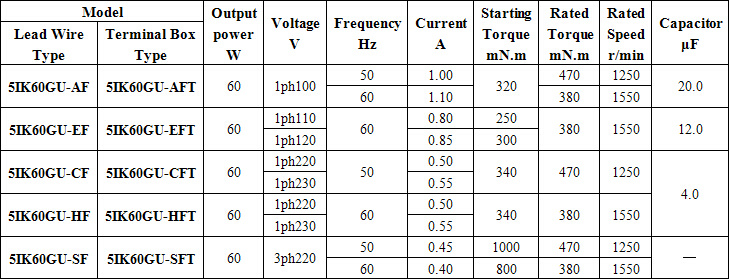

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
5IK60GU-AF	5IK60GU -AFT	60	1ph100	50	1.00	320	470	1250	20.0
				60	1.10		380	1550
5IK60GU-EF	5IK60GU-EFT	60	1ph110	60	0.80	250	380	1550	12.0
			1ph120		0.85	300
5IK60GU-CF	5IK60GU -CFT	60	1ph220	50	0.50	340	470	1250	4.0
			1ph230		0.55
5IK60GU -HF	5IK60GU -HFT	60	1ph220	60	0.50	340	380	1550
			1ph230		0.55
5IK60GU-SF	5IK60GU-SFT	60	3ph220	50	0.45	1000	470	1250	_
				60	0.40	800	380	1550

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
