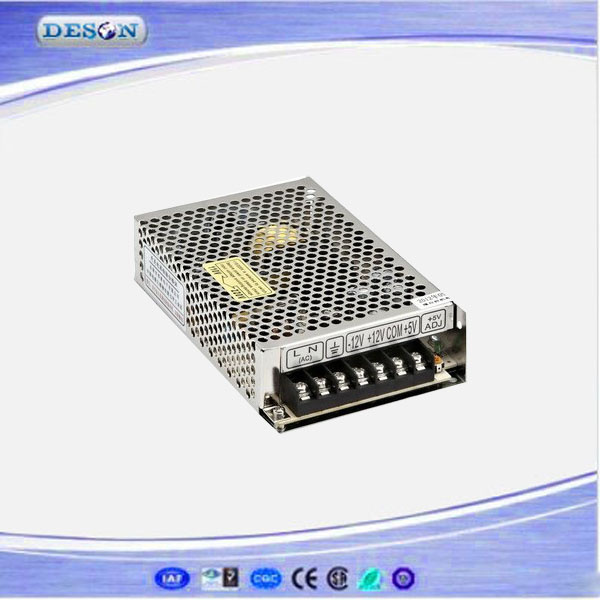

60W Tripe Output Switch Power Supply

Prod Model:	T-60
Power:	60W
Input:	85 ~ 132VAC / 170 ~ 264VAC Selected by Switch 240
Output:	5V/12V/24V
Size:	129X97X35mm
Weight:	0.6kgs
Output Type:	Triple
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	60W
Brand:	Deson
Energy Transmission:	Switch Power Supply

Product Description

60W Tripe Output Switch Power Supply

1.Universal AC Input
2.Compact size, light weight.
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Triple Output Channel
7.Soft-start current can reduce  the AC input impact effecticly
8. 2 years warranty


Product Description


Model	T-60A			T-60B			T-60C
	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Output voltage range(Note:2)	±2%	±6%	±8%	±2%	±6%	±8%	±2%	±6%	±8%
Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2A	0.5A
Output current range	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-1A	0.5-7A	0.2-3A	0-0.1A
Wave and noise(Note:3)	100mVp-p	120mVp-p	100mVp-p	100mVp-p	120mVp-p	120mVp-p	100mVp-p	120mVp-p	120mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±0.5%	±4%	±6%	±0.5%	±4%	±6%	±0.5%	±4%	±4%
DC output power	57.5W			61W			62.5W
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1; +10, -5%			CH1; +10, -5%			CH1; +10, -5%
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.56Kgs
Safety standards	CSA international mark approved (CSA950, UL 1950, IEC950, EN60950)
EMC standards	CISPR22(EN55022), IEC801-2,-3,-4,IEC555-2 Verification
