60W Waterproof Constant Voltage LED Power Supply with Ce

Name: 60W Waterproof Constant Voltage LED Power Supply with Ce
Brand: all-electronics-online.com
SKU: 772533715
Availability: InStock
Rating: 4.5 (29 reviews)

Price:	US $ 7.9-8.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-C 12E60C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	60W Constant Voltage LED Power Supply
Output:	60W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	88 %
IP Rating:	IP67
Weight(Kg):	0.5kg
Packing Information:	20 PCS/ Carton
Operating Temperature:	-25~50
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250
Brand:	Neonpro

Product Description

60W Waterproof Constant Voltage LED Power Supply--NeonPro® Brand

Feature of 60w constant voltage led power supply:
1. Slim body ,easy for installation .
2. High efficiency rate >88%.
3. Aluminum housing ,good for thermal removal ,longer using life.
4. Waterproof ,grade of waterproof is IP67 .
5.Guarantee: 2 years .

Application of 60w constant voltage led power supply

LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

Specification of 60w constant voltage led power supply

Model no.	LPS-12E60C
Input voltage	170-250 VAC 50/60 Hz
Max. power	60W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	88%
Output voltage	12VDC ± 5%
Output current	5A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Operating temperature	-25~50 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE,SAA,SASO

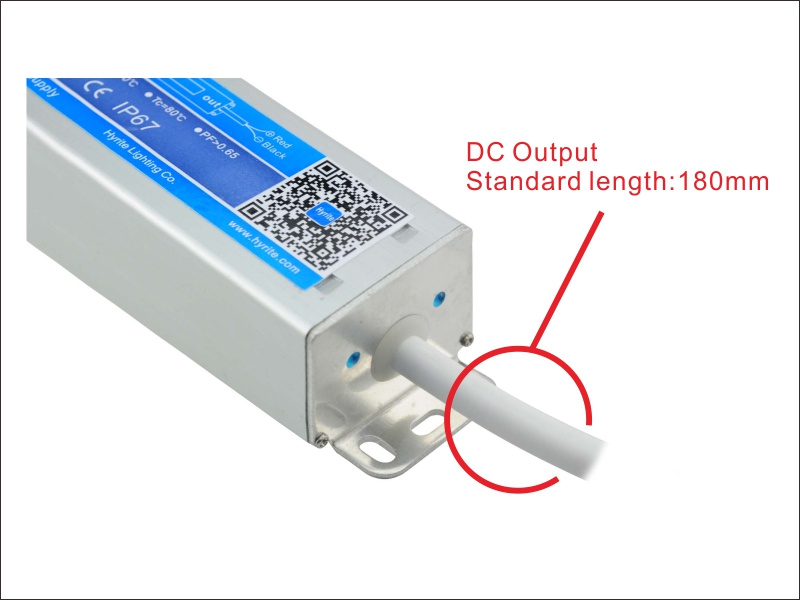

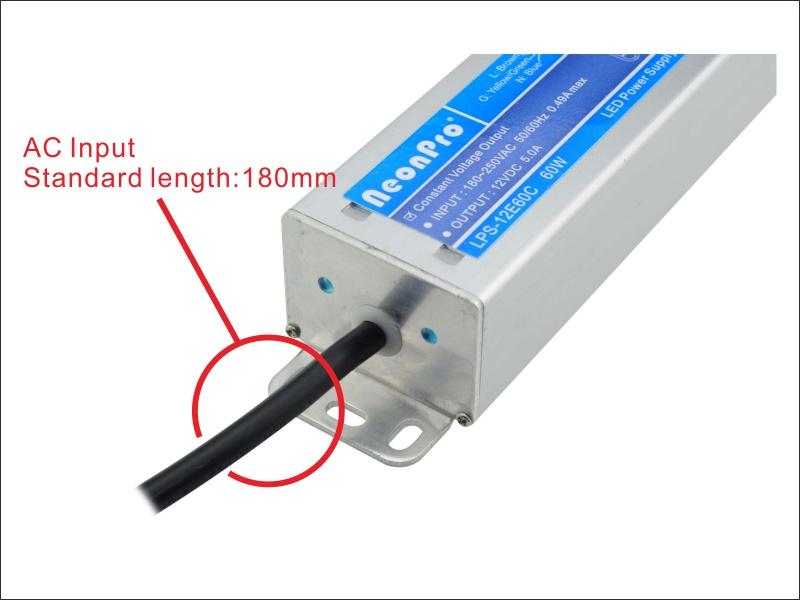

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm)

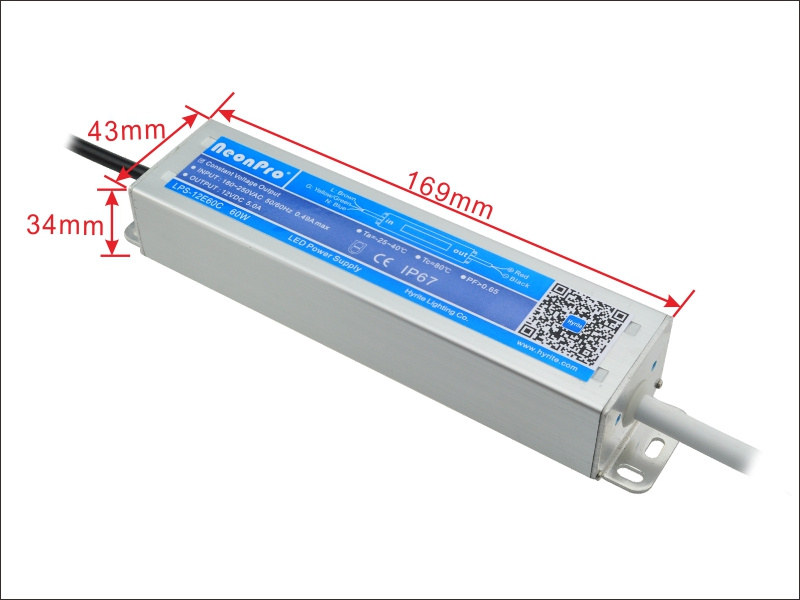

Dimensions(LWH)	1684333 mm
Weight(kg)	0.5
Packing information	20Pcs/ Carton, G.W10KG

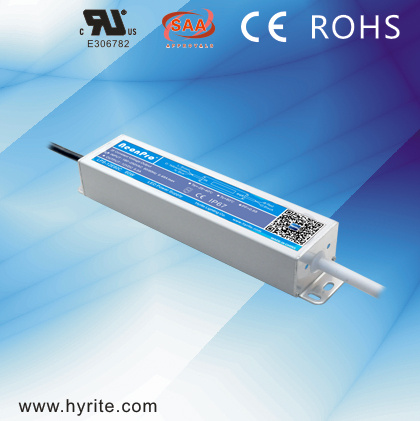

Product pictures of 60w constant voltage led power supply

FAQ:
1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

Contact:
Sales Department: Wing Xu
Hyrite Lighting Co.
Tel:+86(757)81200188 (Ext.333); Fax:+86(757)81200369

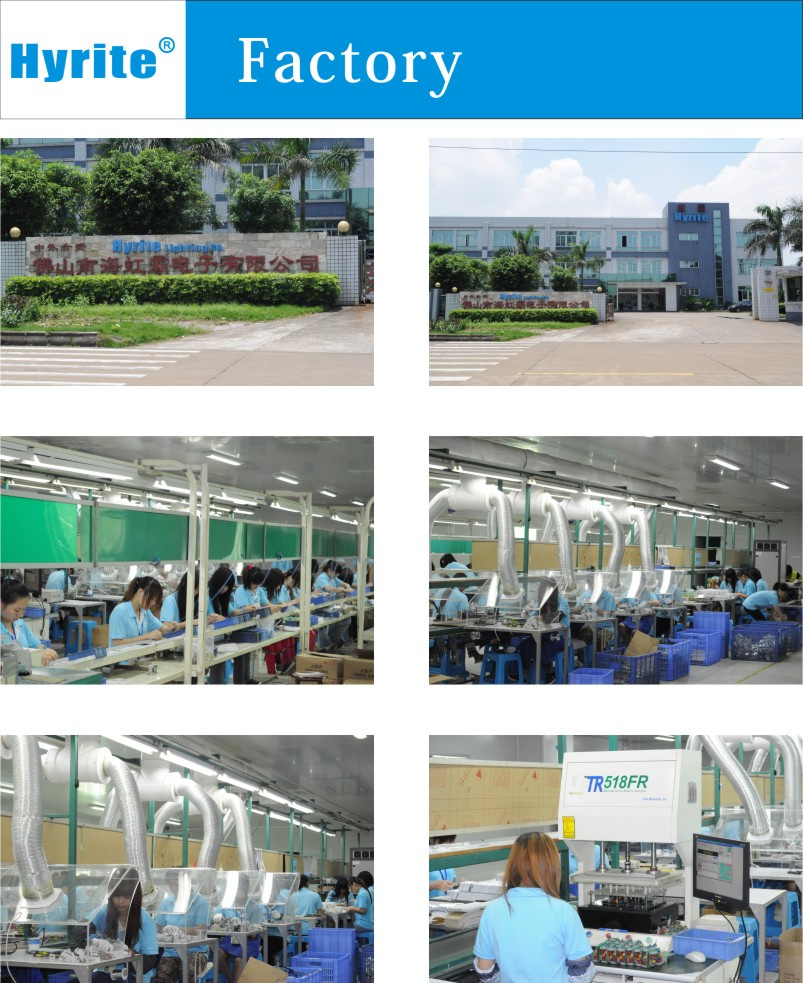

Production of 60w constant voltage led power supply

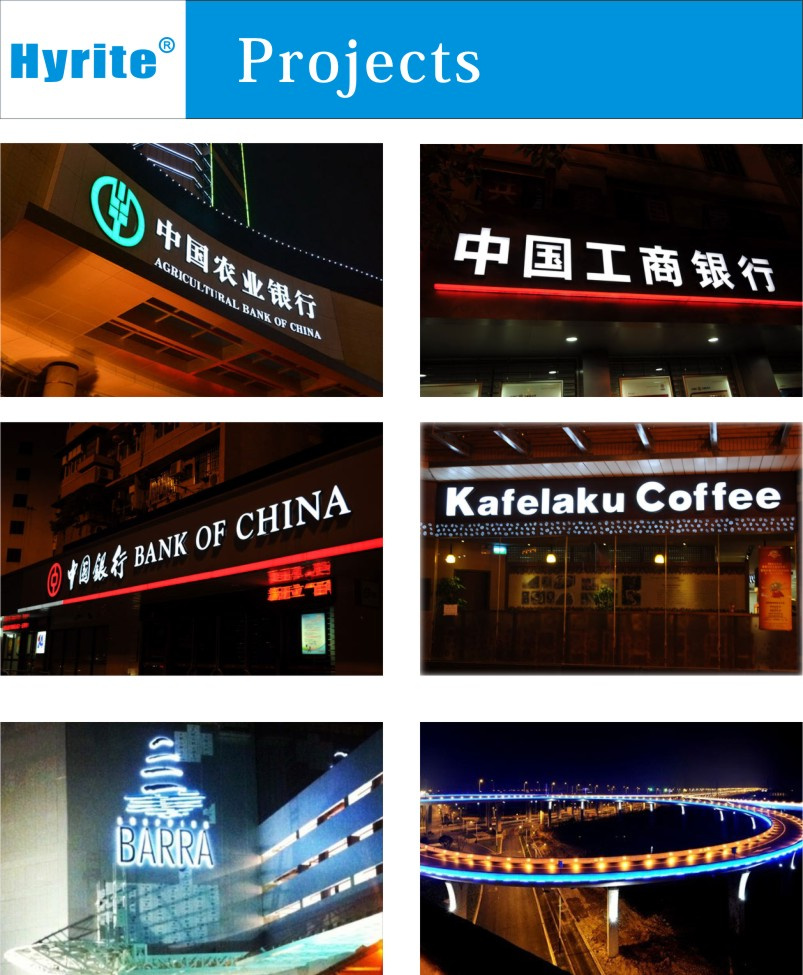

Project application of 60w constant voltage led power supply

Exhibition show of 60w constant voltage led power supply

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
