60W Waterproof LED Power Supply for LED Module with SAA

Name: 60W Waterproof LED Power Supply for LED Module with SAA
Brand: all-electronics-online.com
SKU: 748344815
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 7.8-8.64/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E60C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	60W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP67
Certificates/Standards:	Ce,SAA Saso,Bis
Dimensions(LWH):	1984334mm
Installation:	Outdoor Waterproof
Cooling:	Free Air Convection
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

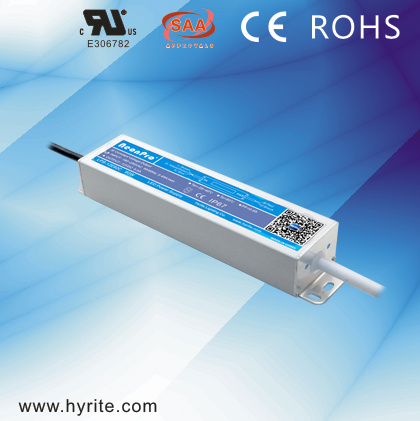

60W Waterproof High Performance DC Ouptut LED Driver

1.Features of LED driver

*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as celling led strip back light, led light box
*Fully sealed and waterproof, IP67 led driver
*Constant voltage output led driver
*100% burn-in test

2.Specification of led driver

Model no.	LPS-24E60C
Input voltage	220 VAC 50/60 Hz
Max. power	60 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	2.5A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE,SASO SAA, BIS

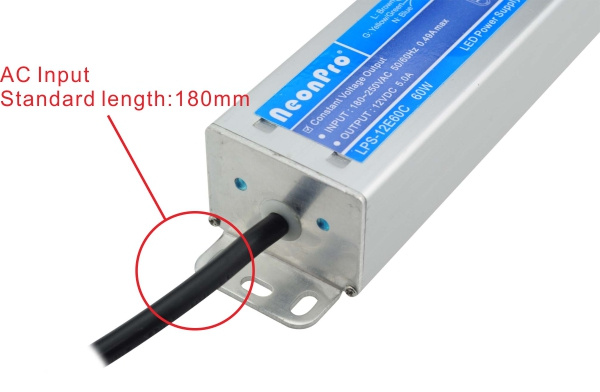

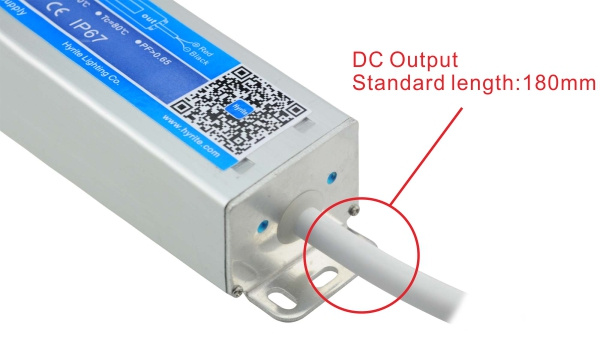

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	1984334mm

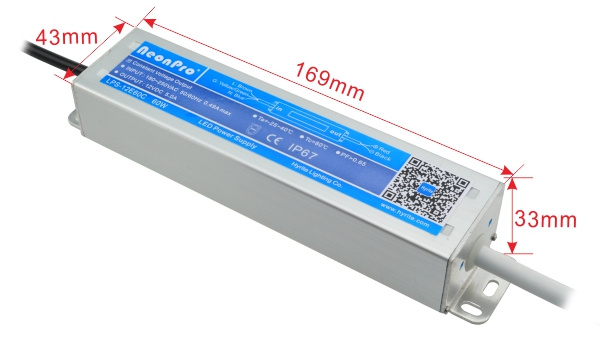

3. Sizes of LED driver

4. Applications of led driver:
*LED modules
*LED strip
*LED-neon light
*Light bar
*Other signage lighting

5. Important Parameter of led driver:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67

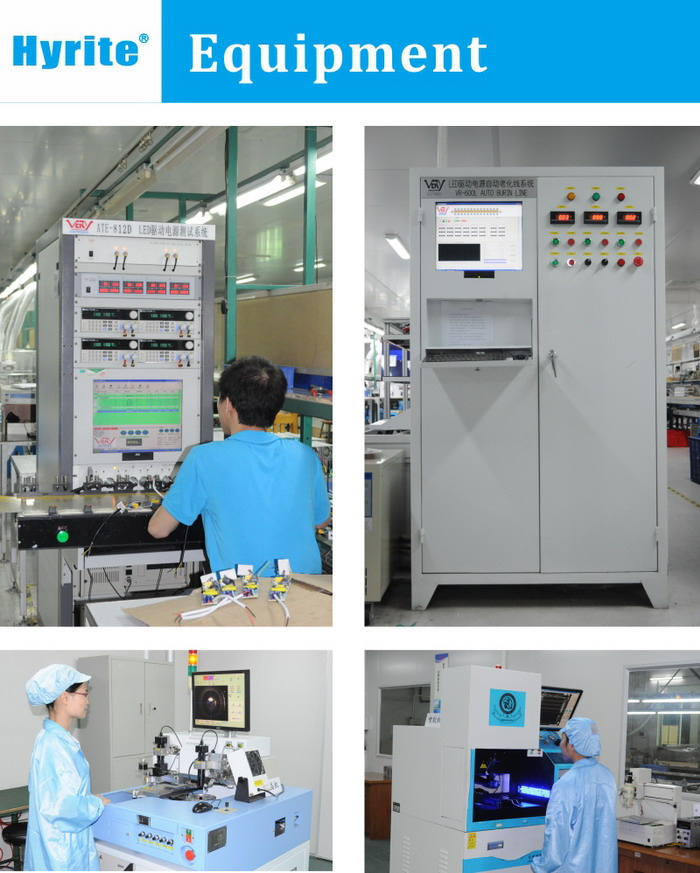

6.Equipments and production lines

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
