| Prod Model: |
ZW10-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
People |
| Rated Voltage: |
12kv |
| Rated Current: |
630A,1250A |
| Customized Design: |
Yes |
| Frequency: |
AC 50Hz |
| Weight: |
150kg |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Manual or Electric Type |
| Function: |
Overload, Shortcircuit Protection |
Product Description

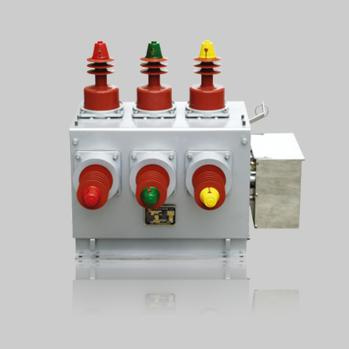

IntroductionZW10-12 series AC high voltage vacuum circuit breaker can be used in the AC 50Hz, rated voltage 12kV three-phase electric net. Break and close load, with overload and short-circuit protection. The control and protection device for grid net.
Suitable for the rural & city electric network, rail & port distribution systems and frequent operation places.
Surrounding1. Ambient temperature: -40ºC~+40ºC 2. Altitude below 2000m
3. Wind pressure ≤700Pa(Wind Speed is 34m/s)
4. Relative diary average temperature ≤95%, monthly average≤90%
5. Air pollution: III Class
Features1. 3 phases posts structure, reliable breaking capacity, no burning or explosive danger, free-maintenance, small volume, long service life.
2. Whole sealing structure. Vacuum arc-blowing chamber, operation systems are sealed in the case.
3. Small spring operation mechanism.
4. Manual or electri type operation of close & open of breaker.
Specification| Rated Voltage | 12KV |
| Rated short-circuit breaking current | 16KA, 20KA |
| Power frequency withstand voltage(1 min) | phase, to ground | 42KV |
| fracture | 48KV |
| Lightning impulse withstand voltage | phase, to ground | 75KV |
| fracture | 85KV |
| Rated current | 630,1250A |
| Rated short-circuit CO power source(peak) | 40KA, 50KA |
| Rated peak withstand current | 40KA, 50KA |
| Rated short-circuit current breaking times | 30 times |
| Rated operation voltage match CT23 spring operation mechanism | breaking & making coil: DC/AC 220V |
| Moving contact admitted abrasive thickness | 3mm |
| Rated Frequency | 50HZ |
| Overcurrent release rated current | 5A |
| Current transformer primary, secondary current rate(normal) | 200/5, 400/5, 630/5, 1000/5, 1250/5 |
| Average breaking speed | 1.2±0.2m/.s |
| Average breaking speed | 0.6±0.2m/.s |
| Rated short-circuit making current(peak) | 50, 63KA |
| Rated operating order | O-0.3s-CO-180s-CO(electric mechanism) |
| Mechanical life | 10000 times |
| Energy-storge motor rated voltage | DC/AC 220V |
| Energy-storge motor rated power | 70W |
| Energy-storge time | ≤8s |
Outline and mounting dimension
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional manufacturer
-- We can send you samples within two weeks.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
