630A Dual Power Generator Auto Transfer Switch ATS

Name: 630A Dual Power Generator Auto Transfer Switch ATS
Brand: all-electronics-online.com
SKU: 725022512
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 155-160/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZMQ2-630A
Voltage:	220~440V
Rated Insulate:	750V
Rated Breaking:	8le
Pole:	3p/4p
Mechanical Life:	10000 Times
Rated Limit Short:	128ka

Product Description

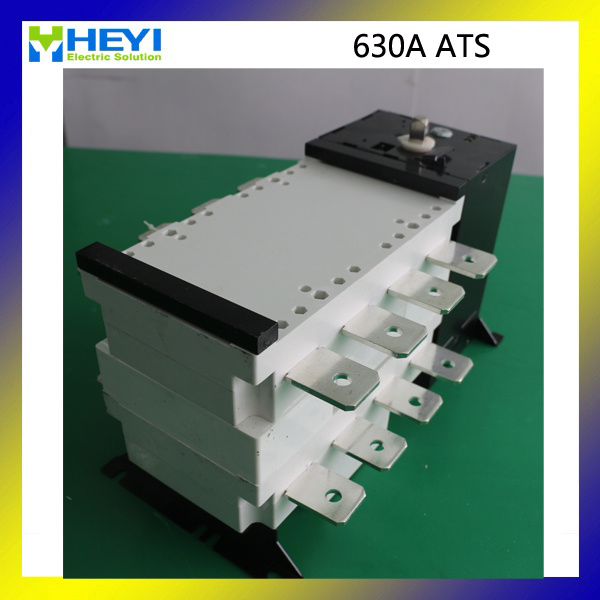

630A Dual power generator auto transfer switch ATS
RED Copper for isolator parts ,Motor 3 years quality warranty
Automatic change-over switch two input two output
ATS is mainly used in the emergency power supply system, switching the load circuit from one power source to another (alternate) power supply to ensure the continuous and reliable operation of the important load. ATS for mechanical structure, conversion time of more than 100 milliseconds, will cause load power failure. Suitable for lighting and motor loads.

With reliable and safe interlock
It has reliable connection and disconnection main circuit and second circuit function and the setting has self-locking function.
It has safety insulation isolate
Quick transfer speed,( the transfer time is 0.1s~0.2s ), low malfunction, and reliable capability.
Ismall in volume, simple in constitution, large current an ATSE integrate.
With the controller, the setting can transfer between the manual and automatic,and has the every protection function.
Imake sure the facility safe, it has neutral pole N input first and breaker later function, which can avoid of the abnormal voltage.
It adopts DC instantaneous excite way.

dual power performance
This intelligent controller adopts microcontroller as control core, the hardware is simple, powerful, easy expansion, high reliability.
It has a short circuit, overload protection, over-voltage, under voltage, phase lack automatic conversion function and intelligent alarm function.
This automatic conversion parameters can be set in the external freedom.
Dual power supply
With the operation of intelligent motor protection function.
By this device with fire control circuit, when the fire control center to a control signal into intelligent controller
The two circuit breakers are in the state of switching.
I have the computer network interface to realize remote control, remote control, remote telemetry, remote function four.
