| Prod Model: |
S11 |
| Rated Capacity: |
630kVA |
| Rated Voltage: |
10kv |
| Vector Group: |
Dyn11 / Yyn0 |
| Material: |
Copper /Aluminum Winding |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi Electirc |
Product Description

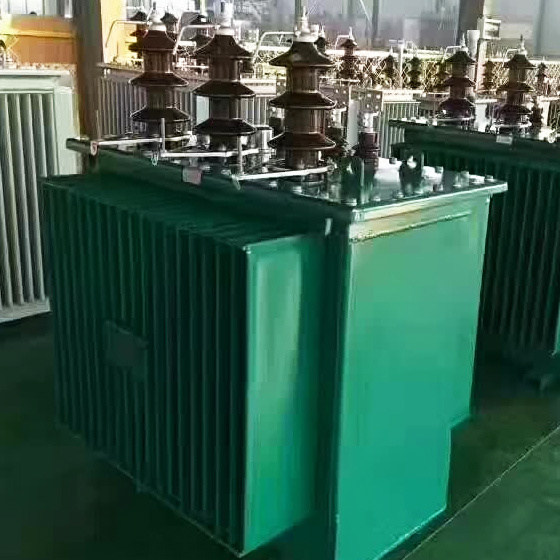

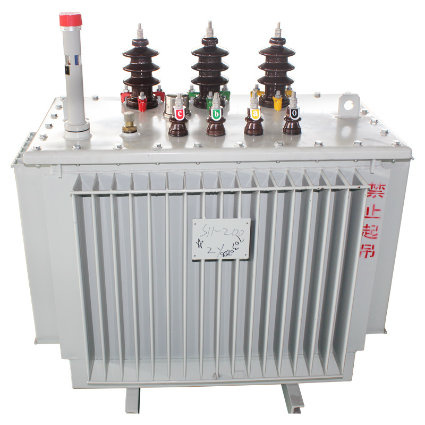

630KVA 10/0.4KV Electrical high voltage power distribution transformer
The Description :S9/S11 series three phase electric power usage high voltage transformers adopts high quality material for copper winding, especially applying the new technology and new material for the
coil insulation and active parts, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.1.Advantages: a.The cancellation of oil conservator makes the transformer more convinient to use;
b.The replacement of oil tube into corrugated tank makes the transformer easier to cool;
c.The physical property of corrugated tank increases the reliability of the transformer;
d.The adoption of sanforizing makes sure the robustness of long distant transportation.
2.Applications: a.Mentallurgy and Petrifaction;
b.Electric power system.
3.Technical Parameters: Technical Parameters of the oil immersed high voltage Transformers
|
Model No. |
Rated Capacity
KVA
| Rated Voltage KV | Connection Group Symbol | Loss W |
No-load Current (%)
|
Impedance Voltage(%)
|
| | |
High Voltage KV |
Tapping Range of High Voltage |
Low Voltage KV | | No-load |
On Load | | |
| S13-M*R-30/10 | 30 |
10 |
±5%
±2x2.5% |
0.4 |
Dyn11
Yyn0 | 80 | 630/600 | 0.30 | 4.0 |
| S13-M*R-50/10 | 50 | | | | | 100 | 910/870 | 0.24 | |
| S13-M*R-80/10 | 80 | | | | | 130 | 1310/1250 | 0.22 | |
| S13-M*R-100/10 | 100 | | | | | 150 | 1580/1500 | 0.21 | |
| S13-M*R-160/10 | 160 | | | | | 200 | 2310/2200 | 0.19 | |
| S13-M*R-200/10 | 200 | | | | | 240 | 2730/2600 | 0.18 | |
| S13-M*R-250/10 | 250 | | | | | 290 | 3200/3050 | 0.17 | |
| S13-M*R-315/10 | 315 | | | | | 340 | 3830/3650 | 0.16 | |
| S13-M*R-400/10 | 400 | | | | | 410 | 4520/4300 | 0.16 | |
| S13-M*R-500/10 | 500 | | | | | 480 | 5410/5100 | 0.16 | |
| S13-M*R-630/10 | 630 | | | | | 570 | 6200 | 0.15 |
4.5 |
| S13-M*R-800/10 | 800 | | | | | 700 | 7500 | 0.15 | |
| S13-M*R-1000/10 | 1000 | | | | | 830 | 10300 | 0.14 | |
| S13-M*R-1250/10 | 1250 | | | | | 970 | 12000 | 0.13 | |
| S13-M*R-1600/10 | 1600 | | | | | 1170 | 14500 | 0.13 | |

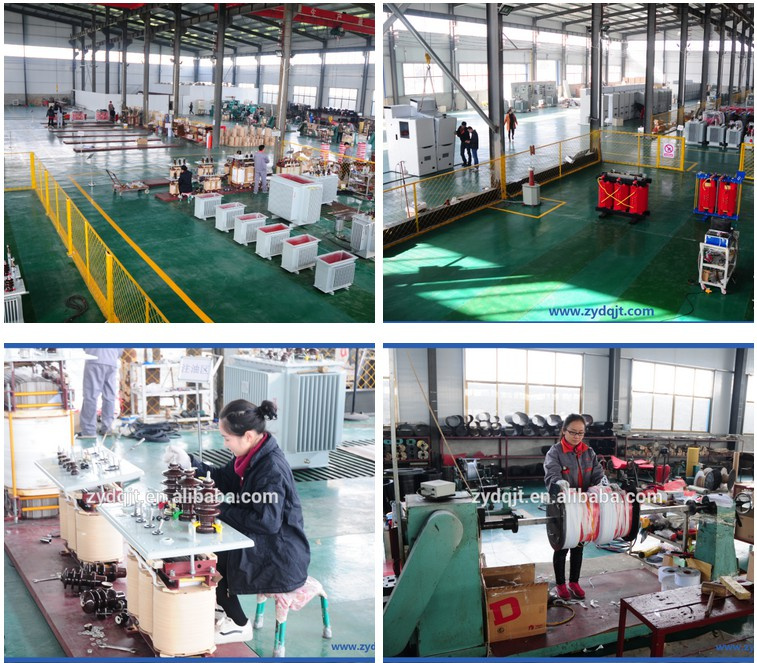

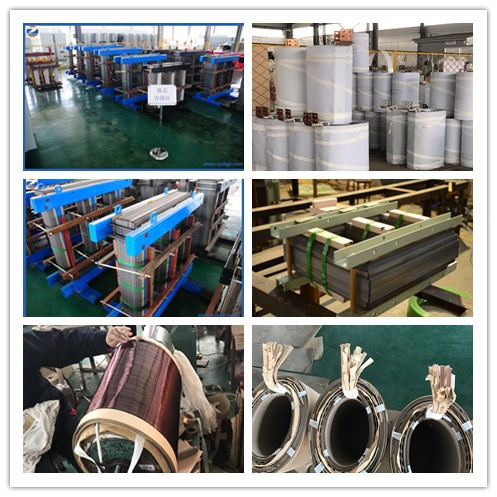

Detailed Images:
Packing & Delivery : | SAFE, TIMELY, EFFICIENT |
| For the product: | Most value S9 type oil immersed three phase 10kv-20 kv power transformer, we normally use wooden case or steel frame to pack , the packing size is up to the different models. As for very big transformers, we will order special containers to ship them. OR AS YOUR ORDER. |
| packing Details: | Inner Plastic smocks or asphalt felt bag with desiccating agent,then wooden carton or frame steel . |
| Delivery Details: | If you buy standard type product : 5-12 work days .If you buy Customized products: As your purchasing quantity to decide . |
