| Prod Model: |
AM1L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Current Inm(a): |
100, 225, 400, 630 |
| Pole Number: |
3, 4 |
| Rated Insulation Voltage Ui(V): |
AC800 |
| Rated Working Voltage Ue(V): |
AC 400V |
| Rated Impulse With Stand Voltage Uimp(V): |
8000 |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
High-Speed Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
| Poles Number: |
3, 4 |
Product Description

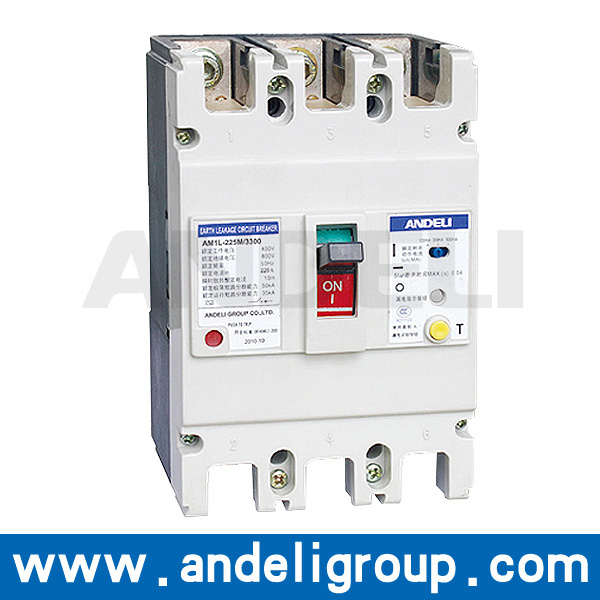

ApplicationAM1L series earth leakage circuit breaker are one of the new type earth leakage breakerswhich have been developed by the company using international advanced design and manufacturingtechnology. Suitable for a line of AC50Hz/60Hz, rated voltage up to 400V, rated current16A to 630A. And is acted as infrequent changeover of circuit or infrequent starting of motor. Thebreaker has overload, short-circuit and under-voltage protective function, which can protect thecircuit and the power equipment against damage, meanwhile, it can provide protection to thesefire dangers that caused by these long-time existed grounding fault that can not be detected bythe over-current protection.
This breaker can be installed vertically(upright) or horizontally(transverse). Wiring of the breaker can not be in adverse direction, that means power supply line must beconnected to terminal 1, 3 and 5, and the load line connected to terminal 2, 4 and 6. The rated residual operating current In and the maximum breaking time can be adjustedon site according to practical condition.
The leakage protection module still can work normally when the phase voltage reduce to 50V. It has the same overall size with the AM1 series breakers, which make the installation moreexchangeable.
The breakers are suitable for isolation, its symbol are:
The breakers comply with the demands of the following standards:
IEC60947-1 and GB/T 14048.1
GeneralIEC60947-2 and GB 14048.2
Low voltage breakersIEC60947-4 and GB 14048.4
Contactors and motor startersIEC60947-5.1 and GB 14048.5
Electrical equipments of electromechanical control circuit

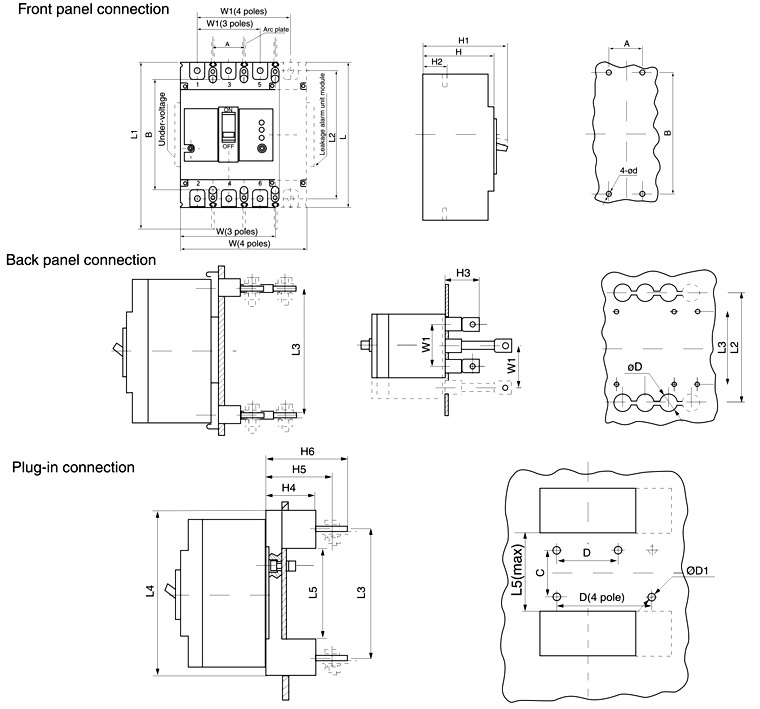

Outline and Installation Dimension
About us
|
Type |
AM1L-100 |
AM1L-225 |
AM1L-400 |
AM1L-630 |
|
Frame Current Inm(A) |
100 |
225 |
400 |
630 |
|
Rated current In(A) |
(10)16, 20, 25, 32, 40, 50, 63, 80, 100 |
100, 125, 160, 180, 200, 225 |
225, 250, 315, 350, 400 |
400, 500, 630 |
|
Pole Number |
3 |
4 |
3 |
4 |
3 |
4 |
3 |
4 |
|
Rated Insulation Voltage Ui(V) |
|
AC800 |
|
|
Rated Working voltage Ue(V) |
|
AC 400V |
|
|
Rated impulse with stand voltage Uimp(V) |
|
8000 |
|
|
Arc-over Distance(mm) |
|
> 50 |
|
|
Breaking capacity grade |
M |
H |
|
M |
H |
|
M |
|
M |
|
|
Limiting short-circuit breaking capacity lcu (kA) |
AC400V |
50 |
85 |
50 |
50 |
85 |
50 |
65 |
65 |
|
Service short-circuit breaking capacity lcs(kA) |
AC400V |
35 |
50 |
35 |
35 |
50 |
35 |
42 |
42 |
|
Rated residual operating current I n(mA) |
Non-delay type |
|
100/300/500 |
|
|
Delay type |
|
100/300/500 |
300/500/1000 |
|
Rated residual nonoperatingcurrent I no(mA) |
|
1/2 I n |
|
|
Operation performance (time) |
Electrified |
1500 |
1000 |
1000 |
1000 |
|
Unelectrified |
8500 |
7000 |
4000 |
4000 |
Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

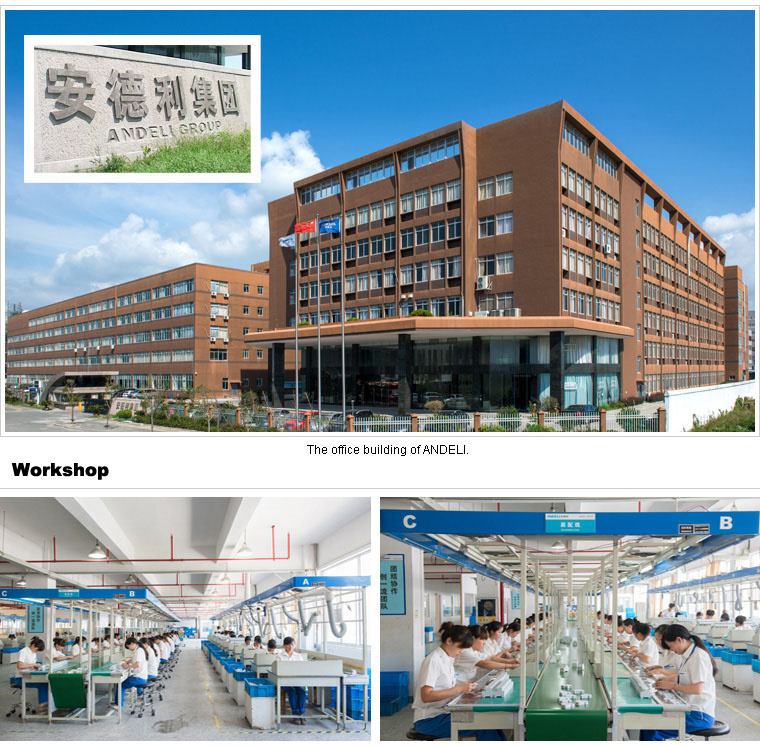

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
