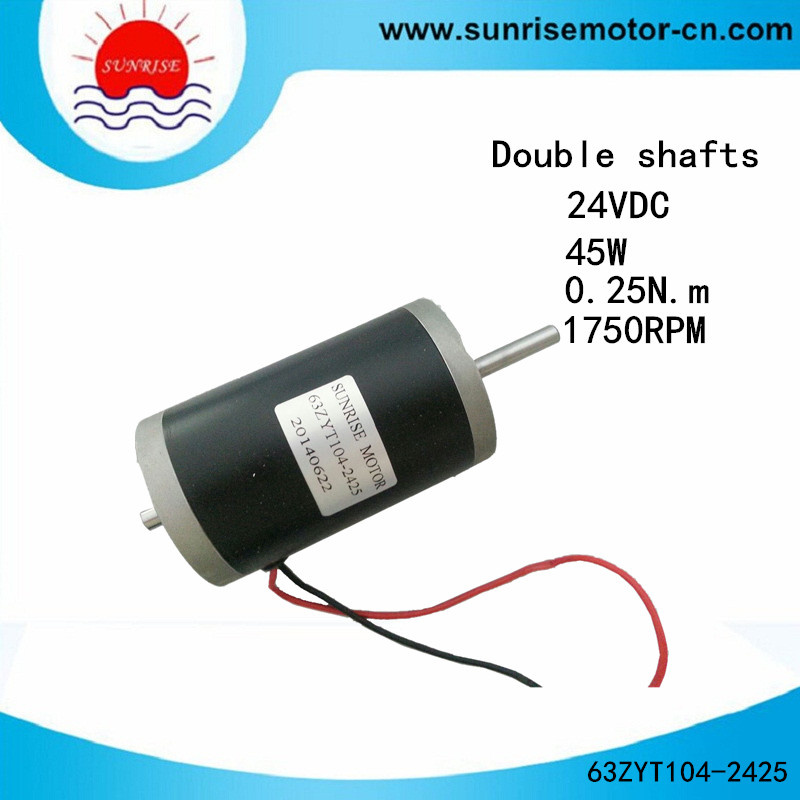

63zyt 45W 0.25n, M Double Shafts High Speed Magnet DC Motor

Name: 63zyt 45W 0.25n, M Double Shafts High Speed Magnet DC Motor
Brand: all-electronics-online.com
SKU: 751318825
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 19.8-35/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	63ZYT104-2425
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	63zyt104-2425
Voltage:	24VDC
Rated Speed:	1750rpm
Rated Torque:	0.25nm
Power:	45W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Brand:	Sunrise Motor

Product Description

Magnet DC Motor (double shafts)

Model" 63ZYT104-2425
Voltage: 24VDC
Rated current: 2.7A
Rated speed: 1750rpm
Rated torque: 0.25N.M
Power: 45W
No-load speed: 2500rpm

Motor can add encoder and gearbox.
Special motors can be customized per your requirements.

Motor specifications:

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
63ZYT104-2425	24	3	2500	0.25	2.7	1750	104

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
