63zyt104-2425 24VDC 45W Double Shfats DC Motor

Name: 63zyt104-2425 24VDC 45W Double Shfats DC Motor
Brand: all-electronics-online.com
SKU: 750999355
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 17.5-35/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	63ZYT104-2425
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	63zyt104-2425
Voltage:	24VDC
Current:	2.7A
Rated Speed:	1750rpm
Rated Torque:	0.25.M
Power:	45W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Brush
Brand:	Sunrise Motor

Product Description

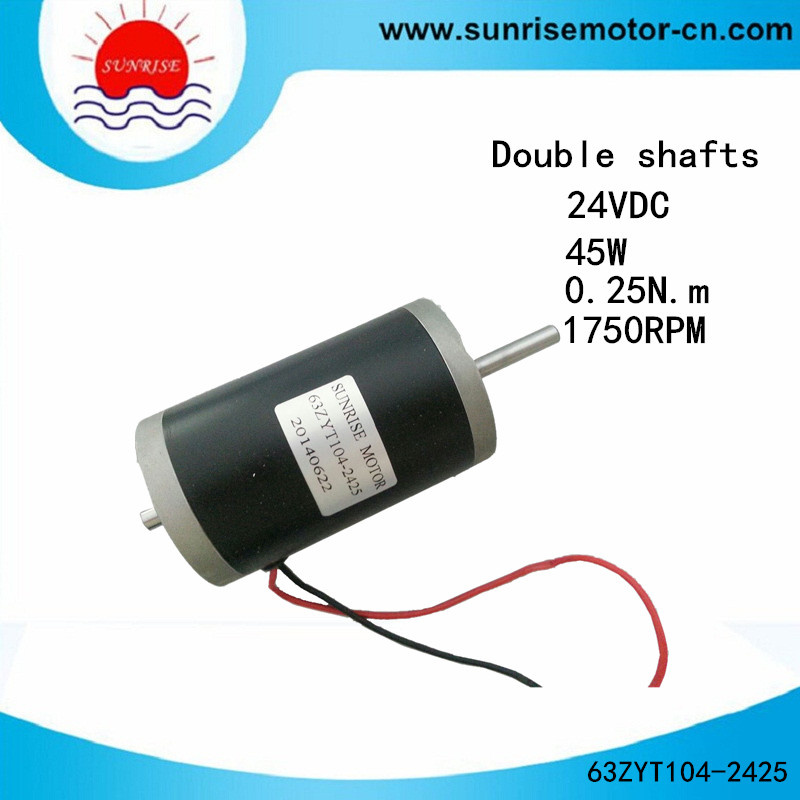

Permanent Magnet DC Motor

Model: 63ZYT104-2425
Voltage: 24VDC
Rated speed: 1750RPM
Rated current: 2.7A
Rated torque: 0.25N.m
No-load speed: 2500rpm
No-load current: 8.1A

Motor can add encoder .
Motor can add gearbox.

We can proudce motor accoring to customer's requirements.

Motor sample is available.

More motors

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
