| Prod Model: |
KSA-65W |
| Size: |
125*57.1*34.7mm |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
C-Tick, PSE etc |
| Input Voltage: |
100-240VAC |
| Brand: |
Seanen |
Product Description

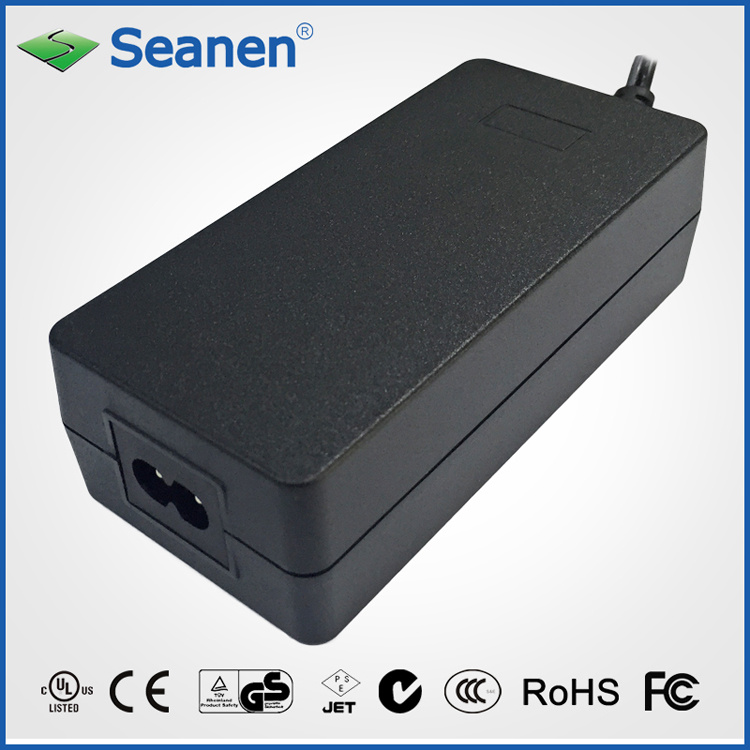

65W Series Switching Power Supply
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 12-24VDC, 3420mA Max
3) RoHS, REACH, PAHs compliant
4) UL, GS, CE, FCC approved
5) Meet the highest efficiency level USA DOE VI and Europe COC V5 Tire 2Switching power supply 65W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 12VDC to 24VDC
4) Output current: Available from 0.05A to
3420mA5) Output power: 65W max
6) RoHS, PAHs, REACH, WEEE compliant
7) 6P, NP available
8) Energy efficiency: VI (CEC, EUP, ERP, MEPS)
9) Input current: 1.6A Max 120/240VAC
10) Inrush current: 50A Max 120VAC at max load, 100A Max 240VAC at max load
11) Leakage Current: 0.25mA max
12) Load regulation: ± 5%
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 125*57.1*34.7mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950
Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-45oC
2) Storage Temperature: -20-70oC
3) Operating Relative humidity: 10-90% RH
| SPECIFICATION |
| Input | Input voltage | 90-264VAC |
| | Frequency range | 47-63Hz |
| | Inrush current | 100A Max, 240VAC at max load |
| | Leakage Current | 0.25mA max |
| | Energy efficiency | DOE VI, COC V5 Tire 2 |
| Output | Voltage | 12-24VDC |
| | Current | 3420mA Max |
| | Power | 65W Max |
| | Load regulation | +/-5% |
| | Hold-up time | 10ms minimun at 115V AC / full load |
| Connector | DC cable | 2468 2C 6FT or others |
| | DC plug | Per customer request |
| Protections | Short circuit protection | Yes |
| | Over voltage protection | Yes |
| | Over current protection | Yes |
| Envionmental requirements | Operating Temperature | 0-45°C |
| | Storage Temperature | -20-70°C |
| | Operating Relative humidity | 10-90% RH |
| Others | MTBF | 50K hours at 25'C |
| | Led indicator | / |
| | Size | 125*57.1*34.7mm (L*W*H) |
| Safety Approvals | UL/cUL/GS/CE/CB/CCC/EMC/FCC |
| Standards | UL60950-1,IEC/EN60950-1,AS/NZS60950-1,J60950,FCC part 15 class B |
| Compliance | RoHS, PAHS, REACH, WEEE |
Company Brief Introduction: Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.

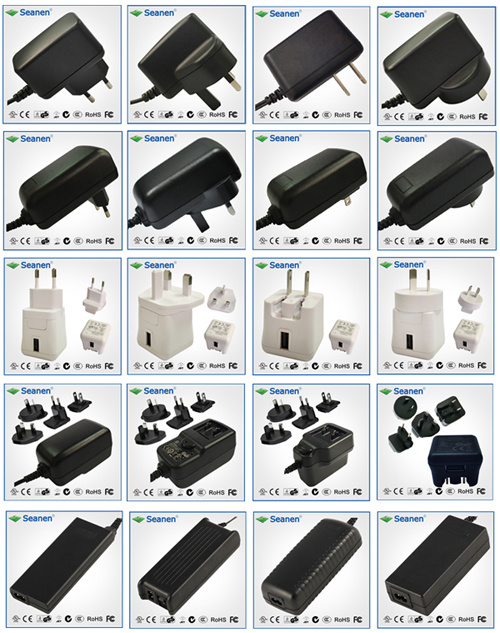

Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
Established in 1999, Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our factory covers more than 15, 000 square meter of production space, staffed with more than 1, 000 skilled employees, with a capacity of 50K units per day. Our highly vertical integration manufacturing covers from moulding to plastic injection, metal parts, SMD, PCB assembly, aging test, ICT test etc, so as to ensure the stable high quality, competitive price and punctual delivery.
Our standard products cover the full range items from 0.5W to 120W output power, and safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc. Our products compliant with CEC V, RoHS, PAHs, REACH and WEEE., we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
