| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Machtric |
| Jog Key Function: |
Multi-Function Setting by Users |
| Output Voltage: |
220V; 380V;660V |
| Output Frequency: |
0.01-600.0Hz |
| Output Current: |
5.4-290A |
| Pid Control: |
Built-in |
| Control Mode: |
Sensorless Vector Control, V/F Control |
| Pid Function: |
Built in |
| Overload Capacity: |
150% Rated Current in 60s; |
| Multi-Speed Function: |
8 Speeds |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description

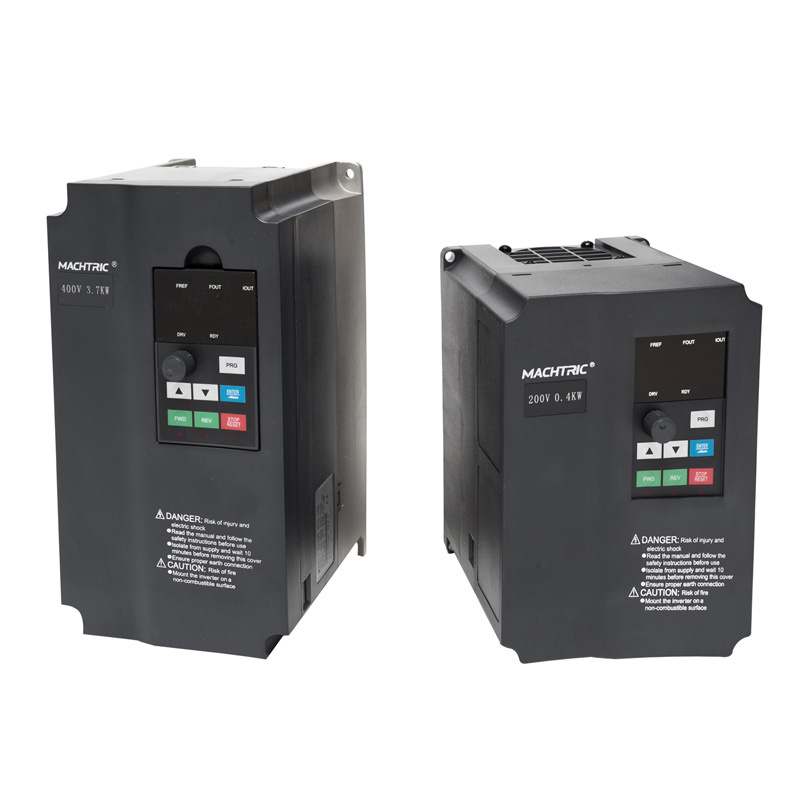

S2800 E Series Vector Control Inverter
Application:
| Paper machinery, Screw output device | Drawing Equipment, |
| Dyeing plant, Injection plastic equipment, | Air condition system, |
| Machine tool equipment, Boller system, | Chemical fiber equipment, |
| Water supply, oil transportation installtion. | Texitile equipment. |
Variable Frequency Drives Variable Speed Drives Frequency Converters AC converters
Frequency Inverters AC Drivers AC Drives AC Motor Drives VFD VSD Transistorized Drives
Model |
S2800 E |
Input |
Rated Voltage& Frequency |
Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
Voltage Allowable Range |
220/380 /660± 15% |
Output |
Output Voltage Range |
1~rated input voltage |
Output Frequency Range |
0~600Hz |
| |
Control Mode |
Sensorless Vector Control, V/F control |
Technic |
Overload Capacity |
150% rated current in 60s; 180% rated current in 10s |
Start Torque |
0.5Hz/150% with vector senserless control |
Adjustment Ratio |
1:100 with vector senserless control |
Speed Control Accuracy |
Maximum speed±0.5% with vector senserless control |
Carrier Frequency |
0.5~15KHz |
Terminal |
Programmable Digital Input |
4 terminals |
Programmable Analog Input |
FIV:0~10V, FIC:0~10V or 0~20mA |
Coupling Output |
1 set |
Relay Output |
1 set |
Analog Output |
1 set-option of 4~20mA/ 0~10V |
Function |
Frequency Setting |
Digital, Analog, Series communication, Multi-Speed, PID, etc |
PID Function |
Built in |
Multi-speed Function |
8 speeds |
Adjustable frequency |
Stable frequency |
Off Power |
Keep running in power off instantly |
Jog Key Function |
Multi-function setting by Users |
Voltage Adjustment |
Auto maintain output voltage stable in changing of power |
Failure Protection |
25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc, |
