| Prod Model: |
CJX5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
660VAC |
| Rated Current: |
up to 85A |
| Theory: |
Electromagnetic Relay |
| Size: |
Miniature |
| Usage: |
Industrial |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

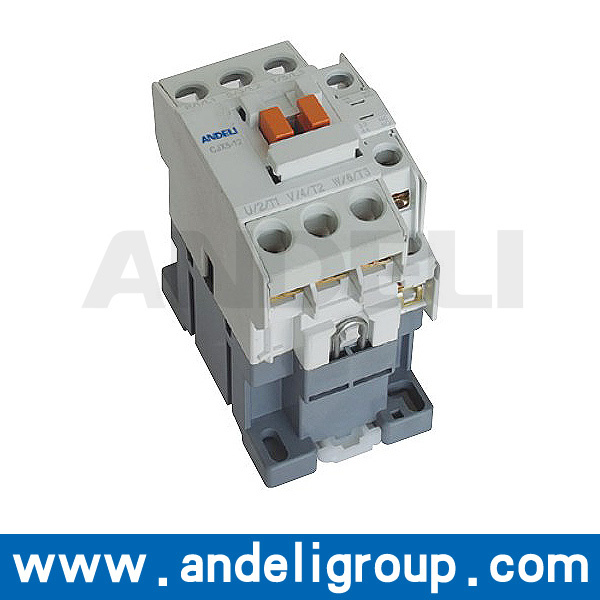

CJX5 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 85A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.
|
Type |
CJX5-9 |
CJX5-12 |
CJX5-18 |
CJX5-22 |
CJX5-32 |
|
AC1 duty |
20A |
20A |
25A |
32A |
50A |
|
AC3 duty |
200~240V |
2.5kW11A |
3.5kW13A |
4.5kW18A |
5.5kW22A |
7.5kW32A |
|
380~440V |
4kW9A |
5.5kW12A |
7.5kW18A |
11kW22A |
15kW32A |
|
500~550V |
4kW7A |
7.5kW12A |
7.5kW13A |
15kW22A |
18.5kW28A |
|
690V |
4kW5A |
7.5kW9A |
7.5kW9A |
15kW18A |
18.5kW21A |
|
Continuous current(Ith) |
20A |
25A |
30A |
32A |
45A |
|
AC motor |
Single phase |
115V |
0.5HP |
0.5HP |
1HP |
2HP |
2HP |
|
230V |
1HP |
2HP |
3HP |
3HP |
5HP |
|
Three phase |
220V |
2HP |
3HP |
5HP |
7HP |
7.5HP |
|
230V |
3HP |
3HP |
5HP |
7.5HP |
10HP |
|
460V |
5HP |
7.5HP |
10HP |
10HP |
20HP |
|
575V |
7.5HP |
10HP |
15HP |
15HP |
20HP |
|
Type |
CJX5-40 |
CJX5-50 |
CJX5-65 |
CJX5-75 |
CJX5-85 |
|
AC1 duty |
60A |
80A |
100A |
110A |
135A |
|
AC3 duty |
200~240V |
11kW40A |
15kW55A |
18.5kW65A |
22kW75A |
25kW85A |
|
380~440V |
18.5kW40A |
22kW50A |
30kW65A |
37kW75A |
45kW85A |
|
500~550V |
22kW32A |
30kW43A |
37kW60A |
45kW64A |
45kW75A |
|
690V |
22kW25A |
30kW33A |
37kW47A |
45kW47A |
45kW52A |
|
Continuous current(ITD) |
50A |
70A |
80A |
90A |
100A |
|
AC motor |
Single phase |
115V |
3HP |
3HP |
5HP |
5HP |
7.5HP |
|
230V |
5HP |
7.5HP |
10HP |
15HP |
15HP |
|
TDree phase |
220V |
10HP |
10HP |
15HP |
20HP |
25HP |
|
230V |
10HP |
15HP |
20HP |
25HP |
30HP |
|
460V |
25HP |
30HP |
40HP |
50HP |
50HP |
|
575V |
25HP |
30HP |
40HP |
50HP |
50HP |
|
Type |
CJX5-100 |
CJX5-125 |
CJX5-150 |
CJX5-180 |
CJX5-220 |
|
AC1 duty |
150A |
150A |
200A |
230A |
260A |
|
AC3 duty |
200~240V |
30kW105A |
37kW125A |
45kW150A |
55kW180A |
75kW250A |
|
380~440V |
55kW105A |
60kW120A |
75kW150A |
90kW180A |
132kW250A |
|
500~550V |
55kW85A |
60kW90A |
90kW140A |
110kW180A |
132kW200A |
|
690V |
55kW65A |
60kW70A |
90kW100A |
100kW120A |
132kW150A |
|
Continuous current(ITD) |
160A |
160A |
200A |
230A |
257A |
|
AC motor |
Single phase |
115V |
7.5HP |
10HP |
15HP |
15HP |
15HP |
|
230V |
15HP |
20HP |
25HP |
30HP |
40HP |
|
TDree phase |
220V |
30HP |
40HP |
40HP |
60HP |
60HP |
|
230V |
30HP |
40HP |
40HP |
60HP |
75HP |
|
460V |
60HP |
75HP |
100HP |
125HP |
150HP |
|
575V |
60HP |
75HP |
100HP |
125HP |
150HP |
|
Type |
CJX5-300 |
CJX5-400 |
CJX5-600 |
CJX5-800 |
|
AC1 duty |
350A |
420A |
660A |
900A |
|
AC3 duty |
200~240V |
90kW105A |
125kW400A |
190kW630A |
220kW800A |
|
380~440V |
160kW105A |
220kW400A |
330kW630A |
440kW800A |
|
500~550V |
160kW85A |
225kW350A |
330kW500A |
550kW720A |
|
690V |
200kW65A |
250kW300A |
330kW420A |
500kW120A |
|
Continuous current(ITD) |
250A |
450A |
800A |
900A |
|
AC motor |
Single phase |
115V |
|
|
|
|
|
230V |
|
|
|
|
|
TDree phase |
220V |
100HP |
25HP |
150HP |
200HP |
|
230V |
100HP |
150HP |
200HP |
250HP |
|
460V |
200HP |
300HP |
400HP |
500HP |
|
575V |
200HP |
300HP |
400HP |
500HP |
