6632 Dm Insulation Material-Electrical Insulation Paper

Name: 6632 Dm Insulation Material-Electrical Insulation Paper
Brand: all-electronics-online.com
SKU: 702524672
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 3kg
Trade Terms:	FOB,CFR,CIF
Min Order:	300kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	6632
Markets:	Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Thickness:	0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45
Width:	1000mm
Applications:	It Is for B- Grade Motors, Generators or Other Ele
Rated Voltage:	≥4--22kv
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	10KV~20KV
Brand:	Chr

Product Description

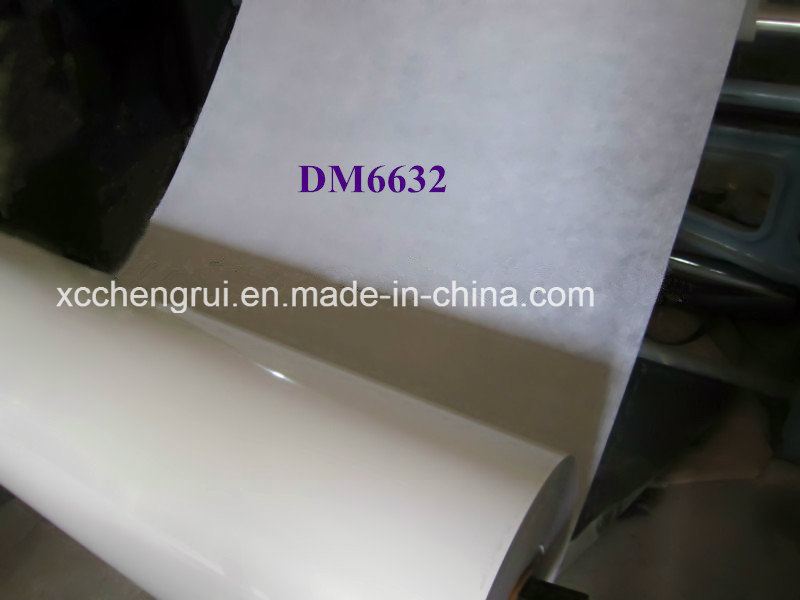

6632 DM insulation paper is a two-ply flexible insulation material consisting of polyester fleece - polyester film. The used adhesive is acid-free and temperature resistant.
It has excellent electrical and mechanical properties. The PET-fleece is porous and absorbs resin when impregnated. It enables easy processing on automatic machinery.
It can be used e. G. As slot and phase insulation in low voltage machinery or as interlayer insulation in transformers.
Special thicknesses or combinations can be supplied according to customer.
Products can be supplied in rolls, sheet, tapes or shapes according to customer requests.
Sheets: Approx. 1000X990mm
Rolls: Max. Width 1000mm
Tapes: From 10mm width upwards

Technical parameters:

No.

Index Name

Unit

Index

Nominal Thickness

0.12

0.15

0.18

0.20

0.23

0.25

0.30

0.35

0.40

Thickness Tolerance

±0.020

±0.030

±0.035

±0.040

±0.045

±0.050

Quantitative and Tolerance

g/m 2

140±20

150±23

190±29

210±32

240±36

255±38

310±46

365±55

450±68

Stretch Intensity

Vertical

unbended

N/10
mm

≥80

≥90

≥100

≥130

≥160

≥180

≥200

≥240

≥280

bended

≥70

≥85

≥90

≥120

≥140

≥160

≥180

≥220

≥260

Horizontol

unbended

≥70

≥85

≥90

≥120

≥140

≥160

≥180

≥220

≥260

bended

≥60

≥70

≥80

≥110

≥130

≥150

≥170

≥210

≥240

Stretch ratio

Vertical

unbended

≥8

≥12

bended

≥10

≥18

Puncture Voltage

≥6

≥7

≥8

≥9

≥10

≥12

≥14

≥16

≥18

Normal adhesion

Non-hierarchical

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
