6640 Nmn Nomex Insulation Paper High Quality

Name: 6640 Nmn Nomex Insulation Paper High Quality
Brand: all-electronics-online.com
SKU: 667347842
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 11kg
Trade Terms:	FOB,CFR,CIF
Min Order:	300kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6640NMN Paper
Markets:	Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Storage Life:	1 Year
Width:	960mm
Thickness:	0.17, 0.20, 0.25, 0.30, 0.35mm
Delivery Time:	15-20days
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	10KV~20KV
Color:	White with Orange Line or Yellow Line

Product Description

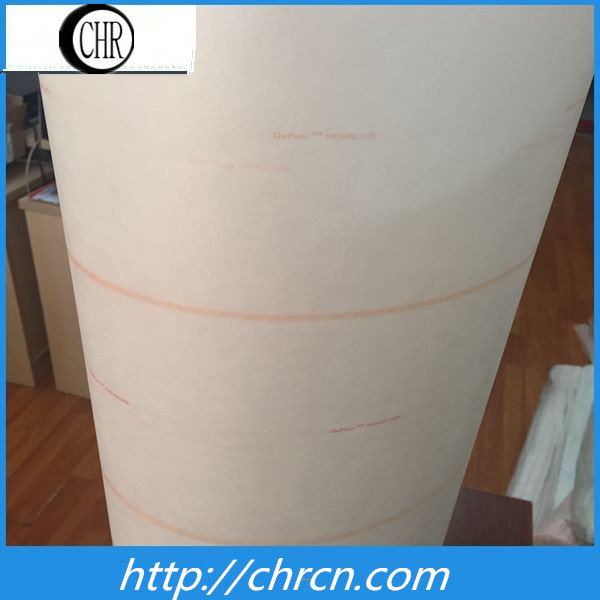

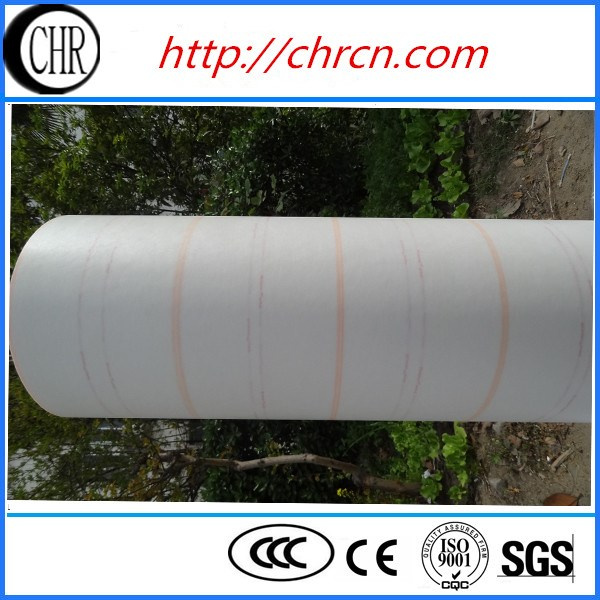

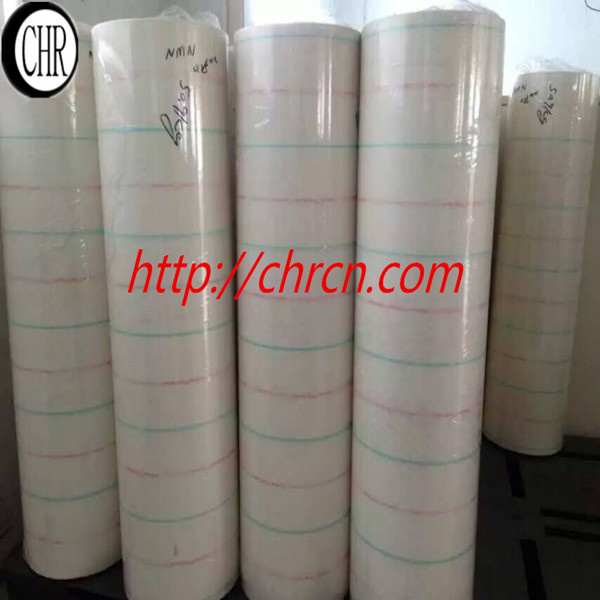

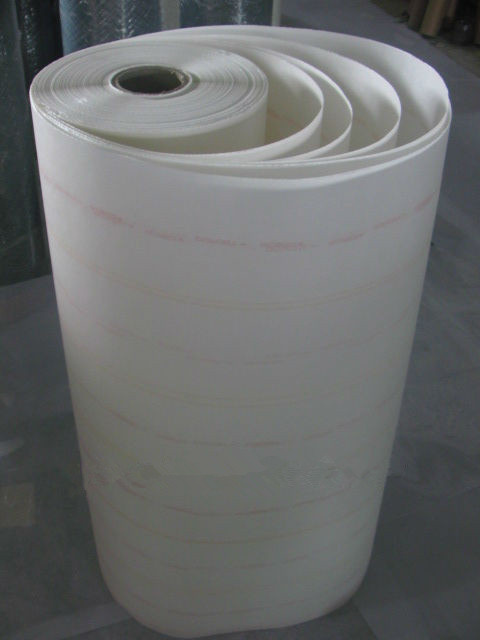

6640NMN----Nomex paper/Polyester film/Nomex paper flexible composite material is made of two layers of Du Pont Nomex paper with one layer of polyester film.
Applications: It is suitable for slot, interphase insulation and liner insulation in Class F special electric machinery.
Availability size of NMN Nomex paper:
Thickness(mm):0.15,0.17,0.2,0.22, 0.25,0.26 , 0.3,0.36,0.42, 0.48mm
Nominal width(mm):914mm
Tape: 15mm, 20mm, 25mm, 30mm, 50mm width.
Color: white with orange line or yellow line.
Technical Data

Product Name	Properties	Value
NMN	Thickness(mm)	0.15	0.17	0.2	0.22	0.24
	Tolerance(mm)	±0.020	±0.020	±0.020	±0.020	±0.020
	Breakdown Voltage(kv)	≥7	≥9	≥11	≥12	≥12
	Test method	IEC-626

Product Name	Properties	Value
NMN	Thickness(mm)	0.26	0.3	0.36	0.42	0.48
	Tolerance(mm)	±0.020	±0.030	±0.030	±0.030	±0.030
	Breakdown Voltage(kv)	≥13	≥16	≥20	≥22	≥23
	Test method	IEC-626

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
