6641 F Class DMD Electrical Insulation Paper for Transformer Motor Generator

Name: 6641 F Class DMD Electrical Insulation Paper for Transformer Motor Generator
Brand: all-electronics-online.com
SKU: 702917692
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 2.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	500kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	6641
Markets:	North America,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.17,0.20,0.25,0.30,0.35mm
Width:	1000mm
Storage Life:	1 Year
Rated Voltage:	6kv~20kv.
Tensile Strength:	70n~320n
Application:	Winding Wire Coating Insulation
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	<10KV

Product Description

Description

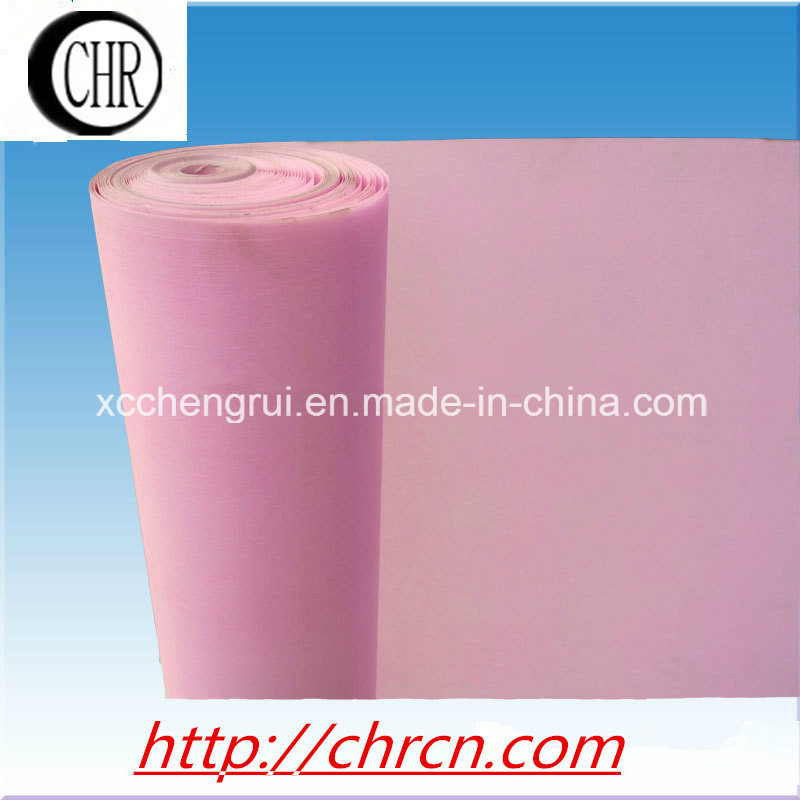

6641 Class F Polyester Film/Polyester Fiber non-woven Fabric composite(F-DMD) is made from one layer of high melting point film and two layers of hot rolling polyester fiber non-woven fabric.
These three layers of flexible insulation are bonded by class F adhesive glue.

Features
?Insulation class F (155°C)
?Laminate made of esterimide-saturated non-woven polyester and high-grade polyester film
?Smooth surface ensures excellent machinability
?Very good bonding with impregnating and trickle resins

Applications
Extensively used as primary insulation for Class F applications in the electrical industry, in particular for motors and transformers as slot insulation, phase barrier and interturn insulation.

:
Thickness: 0.20mm   0.25mm 0.30mm 0.35mm
Width: 1000m   Color: Pink, watermelon, Blue and White
Form: in rolls.
Pacage: Plastic Bags or Carton     Storage life---1 year

Type	Nominal Thick-ness	Tolerance	PET Film Thick- ness	Nominal Grammage	Tensile Strength		Elongation		BDV
					MD	TD	MD	TD	Room Temp-erature	155 ±2°C
					Not Bended	Bended	Bended	Not Bended	Room Temp-erature	155 ±2°C
	mm	mm	µm	g/m2	N/10mm	N/10mm	%	%	KV
DMD 1.5-2-1.5	0.12	±0.020	50	110±20	≥60	≥50	≥10	≥15	≥4	≥3
DMD 2-2-2	0.15	±0.020	50	150±22	≥80	≥70	≥10	≥15	≥7	≥6
DMD 2-3-2	0.18	±0.025	75	190±28	≥100	≥80	≥10	≥15	≥8	≥7
DMD 2-4-2	0.2	±0.030	100	210±32	≥120	≥95	≥10	≥15	≥9	≥8
DMD 2-5-2	0.23	±0.030	125	240±36	≥130	≥100	≥10	≥15	≥10	≥9
DMD 2-6-2	0.25	±0.030	150	260±39	≥150	≥120	≥10	≥15	≥11	≥10
DMD 2-7.5-2	0.3	±0.035	190	310±46	≥170	≥130	≥5	≥5	≥13	≥12
DMD 3-7-3	0.35	±0.040	175	390±58	≥200	≥160	≥5	≥5	≥15	≥14
DMD 3-10-3	0.4	±0.040	250	440±66	≥300	≥200	≥5	≥5	≥18	≥17
Temperature Index			°C	≥155
Storage Life	12 months,room temperature,dry and well-ventilated environment
Adhesive Property	Room Temperature		No delamination
Adhesive Property	180±2°C 10min		No delamination,blister,or adhersive flow
Wetted Adhesive Property			No delamination
Remark	This product is produced in accordance with Q/HJ-214-2009 and is tested in accordance with GB/T5591.2-2002

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
