6650 Nhn Nomex Paper Polyimide Film

Name: 6650 Nhn Nomex Paper Polyimide Film
Brand: all-electronics-online.com
SKU: 706312972
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 43kg
Trade Terms:	FOB,CFR,CIF
Min Order:	100kg
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	6650
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	H 180

Product Description

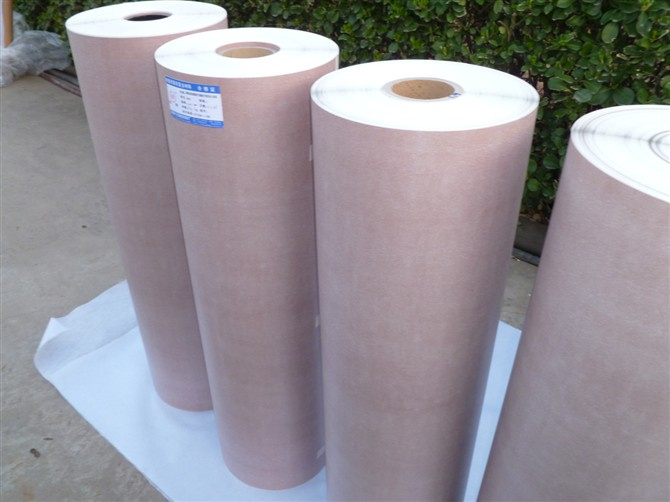

6650 (NHN)-Nomex paper / Polyimide film / Nomex paper flexible composite material is made of two layers of Du Pont Nomex paper with one layer of polyimide film.

Features and Applications:

-Temp. class H (180°c)

-Excellent dielectric property and mechanical property, even better properties of dielectric and mechanical under high temperature or after humidity.

-As slot, interturn and liner insulation for H-grade motors and electric appliances.

Availability:
Thickness:0.15-0.35mm
Width:914mm

-Form: roll, sheet, strip.

No.	Properties	Unit	Values
1	Nominal Thickness	mm	0.15	0.18	0.20	0.25	0.30
2	Thickness Tolerance	mm	±0.02		±0.03		±0.04
3	Breakdown Voltage ( No Bending) ≥	Kv	8	8	9	9	10
4	Bond Strength At Room Temp.	---	No delamination
5	Bond Strength At (180±2)°c, 10Min	---	No delamination, No blister, No adhesive flow

Xuchang Zhufeng Insulation Material Co. Ltd, Welcome inquiry our products.

We are manufacture in electrical insulation material which has established Since 1998, we are one of the largest insulation company In China, have exported Europe, Middle East, Aisa and South America. ISO9001, RoHS certification. High quality, excellent service!

Our main produts as below:

1. Felexible composite insulation paper: 6520 fish paper with film, DMD insulation paper, F- DMD insulation paper, NMN nomex insulation paper.

2. Polyester film products: Transparent film and Milky white polyesterfilm

3. Transformer insulation paper: Presspaper, Pressboard(Chipboard), Fish paper, Cable paper, Creap paper,

4. Insulation binding tape: Fiberglass tape, Pure cotton tape

5. Insulation Sleeve: 2715 PVC fiberglass sleeve, 2751 silicon rubber sleeve, 2753

Silicone Varnish sleeve,

6. Insulation Laminated sheet: 3240 Epoxy glass cloth laminated sheet, 3025 phenoli cotton cloth laminated sheet, 3021 phenolic paper laminated sheet.

7. Imprenating fiber cvarnish cloth/tape: 2432, 2450, 2310, 2210
