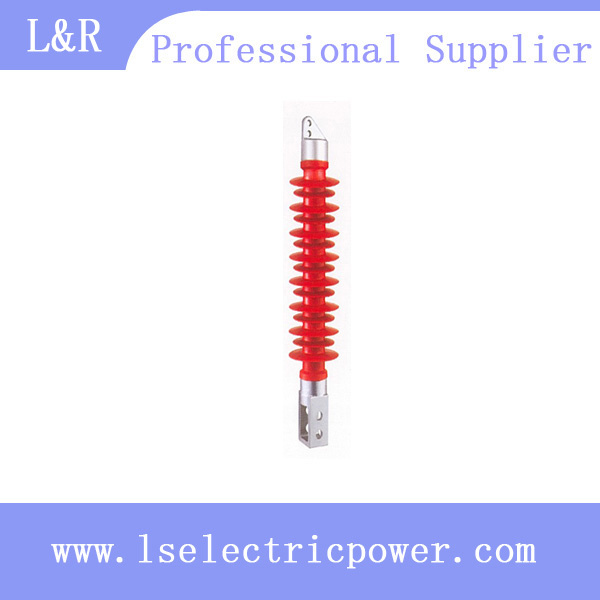

66kv 20kn Composite Cross-Arm Insulator Fsw-66/20

Name: 66kv 20kn Composite Cross-Arm Insulator Fsw-66/20
Brand: all-electronics-online.com
SKU: 783168635
Availability: InStock
Rating: 4.8 (94 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FSW-66/20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Cross-Arm
Size Of Bearing Capacity:	20kn
Brand:	L&R

Product Description

These products for the urban net rebuild can effectively solve the shortage of corridor in urban power line, reduce the pole height and economy lots of financial and material resources.Because of the high strength,to avoid the porcelain cross-arm cannot instead of it.

Main technical parameters:

Model	Rated Voltage (KV)	Rated mechanical Bending load(KN)	Structure height H.(mm)	Insulating distance Li(mm)	Min Creepage distance (mm)	Lightning impluse withstand voltage(peak)(kV)	P.F.withstand voltage (virtual value)(kV)
FS-10/5	10	4	215	125	280	75	42
FS-15/6	15	6	440	250	250	140	70
FSW-35/5	35	5	645	490	490	265	95
FS-35/6	35	6	645	490	490	265	95
FS-66/20	66	20	830	600	1820	265	100
FS-110/10	110	10	1260	1100	1100	550	230

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
