66kv-220kv Copper Wire XLPE Insualted Hv Power Cable

Name: 66kv-220kv Copper Wire XLPE Insualted Hv Power Cable
Brand: all-electronics-online.com
SKU: 770701375
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	US $ 3-15.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	800/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJLW02
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East
Produceing Experience:	15 Years
Size(mm2):	......95.120 185, 240,300,400, 500, 630,800,1000
OEM:	Yes
Application:	Power Station
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CCC
Voltage:	High Voltage Cable, Super-High Voltage
Sheath Material:	PVC HDPE Hv Cable
Model:	Yjlw02-Z Yjlw03-Z Yjq02-Z Ujq03-Z Hv Cable

Product Description

66kV 110kV 220kV HV Cable

1.Cable Description:
Single core,Copper conductor, XLPE insulation,Corrugated Aluminum sheath, or lead alloy sheath, or Copper wire Screen,PVC or PE Outer sheath power cable

2.Cable property:
1)The maximum rated working temperature of conductor is 90°C, and the maximum temperature is less than 250°C when short circuit occurs(no more than 5 seconds
2)Allowable maximum lateral pressure is 5KN/m.
3)Allowable maximum traction strength of aluminum conductor is 40N/mm2.
4)Cable laying temperature is not less than 0°C.
5)The minimum bending radius is no less than 20D.

(D---represents actual outer diameter of cable)

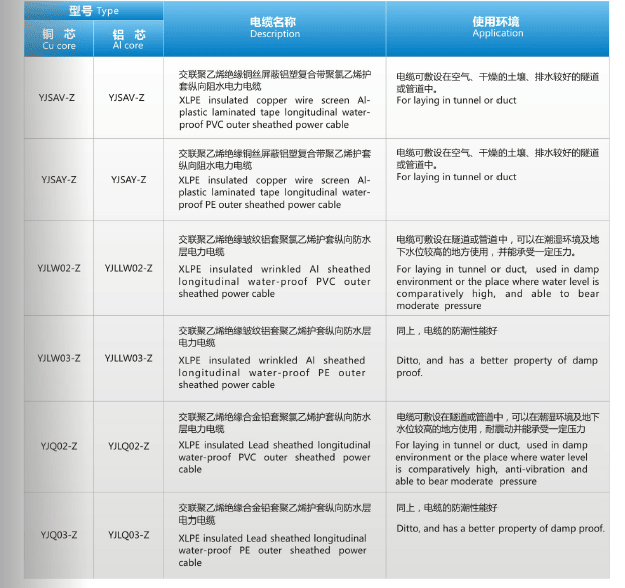

3.Type and Application:

4.Structure Drawing

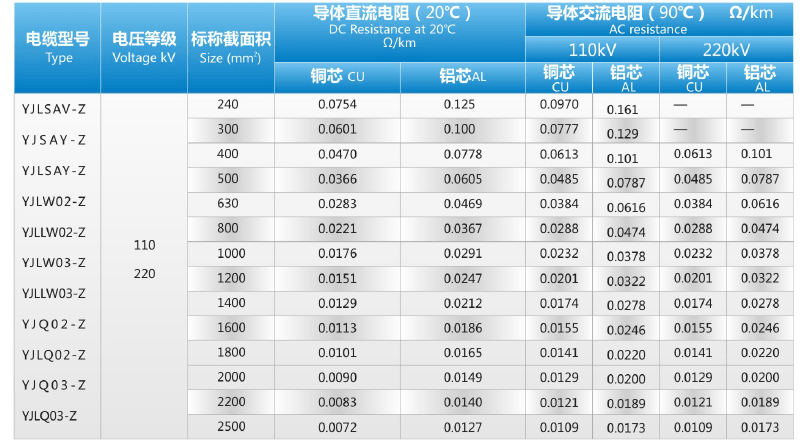

5.Size range we produce:

6.Packing:
Wooden Drum, Steel Wooden Drum, All Steel Drum for very heavy cable

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
