0.66kv Small Split Core Current Transformer for Energy Meter

Prod Model:	Fu-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Range:	0-200A
Diameter Of Clamping Wire:	φ16mm
Overall Dimensions:	38mmx55mmx18mm
Load Capacity:	4 Ohm
Output Mode:	Lead Output
Class:	0.5, 1
Types:	Small Split Core Current Transformer
Ratio:	100A/0.333V, 60A/0.333V
Output Signal:	2.5m Cable
Weight:	60g
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Installation:	Active Type, Suspension

Product Description

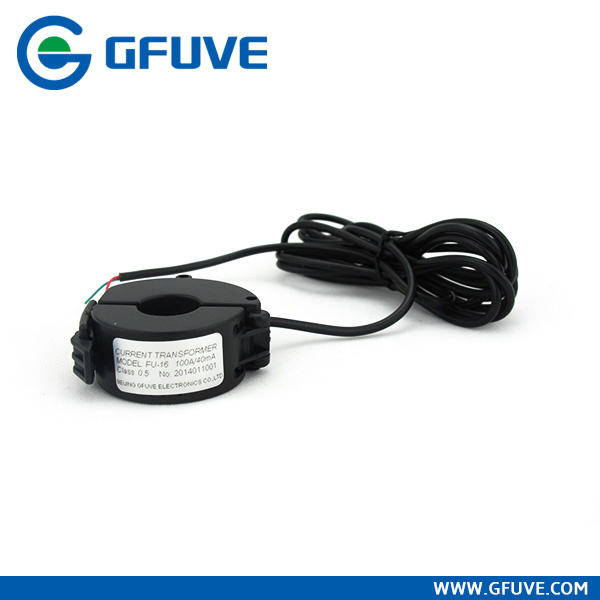

FU-16 0.66kv Small Split Core Current Transformer for energy meter
FU-16 0.66kv Small Split Core Current Transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 0.66kv Small Split Core Current Transformer to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.
Applications
Power meter and harmonic meters
Energy meter(kWh meter)
Recorders, loggers, oscilloscopes
Power quality monitoring
Switchgear
Distibuted measurement systems
General Sets
Control panels
Features
Measurement range of 1mA to 200A AC
Improved ergonomic design and easy operation
Low phase shift for power measurement
With load capacity≤ 4
Output model: Lead output(2.5m)
PC spring, output-terminal, secure locking hinge,
One-touch structure make easy to install to the existent
Isolated plastic case recognized according to UL94-V0
Small-size, compact size,light-weight
Simple Installation
Over-Voltage protection circuit is installed.
UL / EN 61010 - 1 certified
Specifications

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	20 A/30A/40A/50A/60A/80A/100A/150A/200A
Overload withstand	1.2 times rated current continuously
Accuracy	0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	10mA-200mA AC optional 333mV AC or 100mV-2V optional
Frequency range	40 Hz....500 Hz
Dielectric strength	3KV 50Hz/60Hz  at 1 minute
Temperature range	-20 °C...+55 °C
Relative Humidity	0-85% non-condensing
Output	Standard 2.5 meter cable
Protection Level	3.0V0-P
Installation Category	CATII or CATIII 600VAC
Max. jaw opening	16 mm
Standard	IEC/EN60044-1 & IEC61010-1 & IEC61869-2
Dimensions	38mm x 55mm x 18 mm
Weight	60 g
