69kv Outdoor Single Pole PT or Vt or Current Transformer for Mv Switchgear

Name: 69kv Outdoor Single Pole PT or Vt or Current Transformer for Mv Switchgear
Brand: all-electronics-online.com
SKU: 683374001
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 3388-3500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZW-69-002
Outdoor:	Epoxy Resin Casting
66kv:	Mv
Vt:	PT
Frequency:	50/60Hz
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

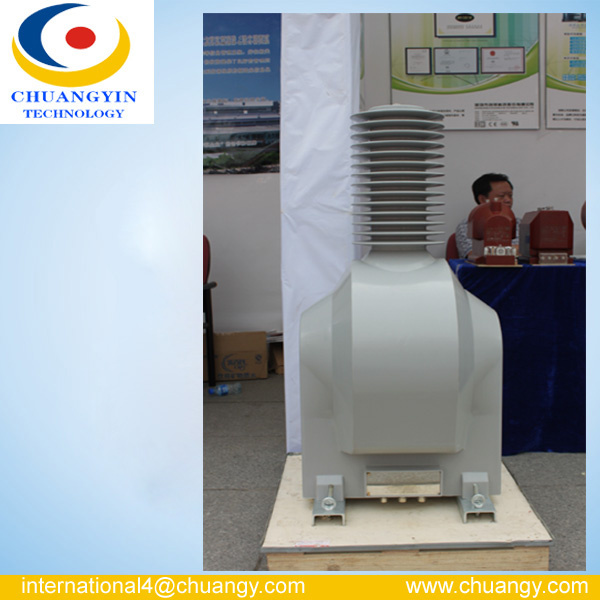

JZW-66/69 Outdoor Voltage Transformer

Description
JZW-66 voltage transformer, epoxy resin casting and outdoor installation, is widely used for measuring current, electric energy and protective relaying in the power system with the frequency of 50Hz or 60 Hz and rated voltage of 66kV or 69kV.
The product can be operated on many circumstances such as the areas of altiplano, tropical area, chillness, coastland and dirtiness etc.

Main technical parameter
1. Highest voltage for equipment: 72.5kV
2. Rated primary voltage: 66/kV or 69/kV etc
3. Limiting output :2000VA
4. Rated power-frequency withstand voltage: 140kV
5. Rated lightning impulse withstand voltage: 325kV or 350kV
6. Rated insulation level: 72.5/140/325kV or 72.5/140/350 kV
7. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers or IEEE STD C57.13-2008

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Max output (VA)	Rated insulation level(kV)
JZW-66 JZW-69	66/ 69/	0.1//0.1/3 0.11//0.11/3	0.2/6P(3P)	150/100	2000	72.5/140/325
			0.5/6P(3P)	300/100
			1/6P(3P)	500/100
		0.1//0.I//0.1/3 0.11//0.I1//0.11/3	0.2/0.2/6P(3P)	75/75/100	1000
			0.2/0.5/6P(3P)	50/100/100
			0.5/0.5/6P(3P)	150/150/100

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

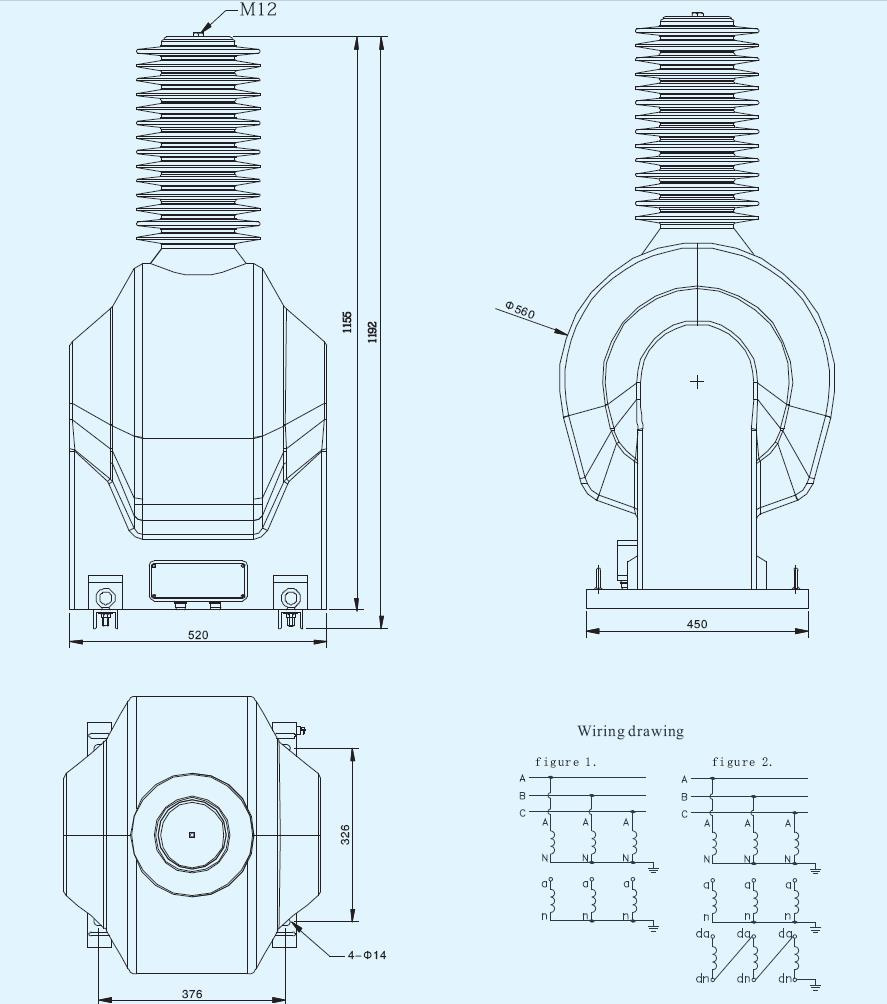

Outline drawing

Outline Drawing
