6A/250V 10A/125V AC Red Illuminated Light on/off Spst Boat Rocker Switch

Prod Model:	Illuminated Light On/Off SPST Boat Rocker Switch
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Poles:	Spst
Terminals:	6 Pins
Position:	on-off
Lamp Color:	Red
Rated Voltage:	AC 6A/250V, AC 10A/125V
Overall Size:	23 X 20 X 27mm
Mounting Size:	21 X 18mm
Material:	Plastic, Metal
Colors:	Black, Red
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	White,Blue,Black,Orange,Red Gray,Grey

Product Description

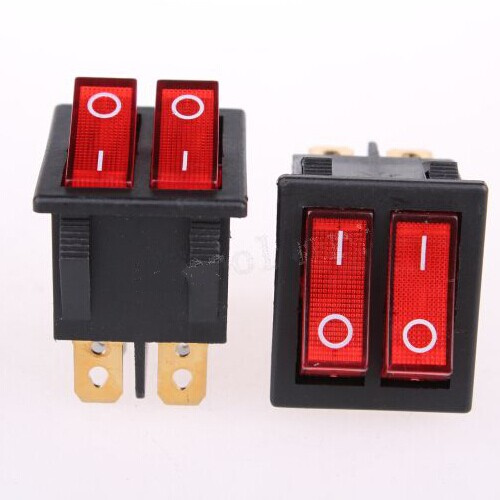

Red Illuminated Light On/Off SPST Boat Rocker Switch 6A/250V 10A/125V AC

Features: single pole single throw(SPST) type, 6 pin terminals, on-off 2 position, dual snap in rocker switch with red neon light indication. Widely applied to controlling all kinds of household appliances such as water dispenser, treadmill, coffee pot and so on. The light voltage is AC 250V, please pay attention to the voltage before ordering to make sure the rocker switch can work successfully in your area.

Product Name : Rocker Switch;Poles : SPST;Terminals : 6 Pins
Position : On-Off;Lamp Color : Red;Rated Voltage : AC 6A/250V, AC 10A/125V
Overall Size : 23 x 20 x 27mm / 0.9" x 0.8" x 1.1" (L*W*H);
Mounting Size : 21 x 18mm / 0.83" x 0.71" (L*W)
Color : Black, Red;Material : Plastic, Metal

Packaging & Delivery

Packaging Details:	50pcs in a box, normal carton
Delivery Detail:	7-14days after confirm payment


.



Single Pole Single Throw ON - OFF,ON-OFF-ON switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper  light.
Single lower  light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.
