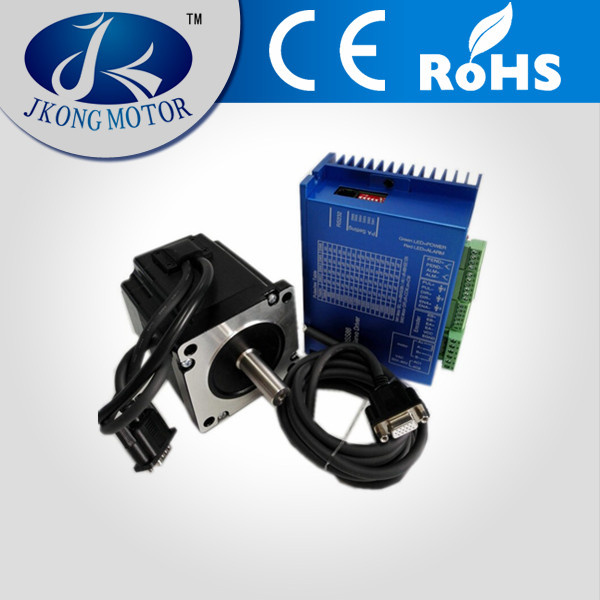

6A 8.5n. M 2phase Closed Loop Stepper Motor with Encoder, Driver and 3m Wires

Name: 6A 8.5n. M 2phase Closed Loop Stepper Motor with Encoder, Driver and 3m Wires
Brand: all-electronics-online.com
SKU: 767723635
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 92.85-114.28/Piece
Trade Terms:	FOB,CIF,DAT
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK86HS115-4208
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	6.0A
Task:	Adjust
Structure:	Closed-Loop
Mathematical Model:	Non-Linear
Signal:	Continuous
Condition:	New
Customized:	Customized
Material:	Stainless Steel
Function:	Automatic Control
Certification:	ISO: 9001, CE, RoHS, SGS

Product Description

6A 8.5N.m 2Phase Closed Loop Stepper Motor with Encoder, Driver and 3m Wires

Features:

· Closed-loop, eliminates loss of synchronization
· Broader operating range - higher torque and higher speed
· Reduced motor heating and more efficient
· Smooth motion and super-low motor noise
· Do not need a high torque margin
· No Tuning and always stable
· Fast response, no delay and almost no settle time
· High torque at starting and low speed, high stiffness at standstill
· Lower cost
20-50V, 8.0A Peak, No Tuning, Nulls loss of Synchronization

Driver:

Parameters	HBS57
Parameters	Min	Typical	Max	Unit
Output current	0	-	8.0 (Peak)	A
Input voltage	20	36	50	VDC
Logic signal current	7	10	16	mA
Pulse input frequency	0	-	200	kHz
Isolation resistance	500			MΩ

Encoder:

Encoder Feedback Connector - DSub15 Female
Pin	Name	I/O	Description
1	EA+	I	Encoder channel A+ input
2	EB+	I	Encoder channel B+ input
3	EGD	GND	Signal ground
4	HW	I	Reserved
5	HU	I	Reserved
6	FG	GND	Ground terminal for shielded
7	EZ+	I	Reserved
8	EZ-	I	Reserved
9	HV	I	Reserved
10	NC	-	Not Connected
11	EA-	I	Encoder channel A- input
12	EB-	I	Encoder channel B- input
13	VCC	O	+5V @ 100 mA max.
14	NC	-	Not Connected
15	NC	-	Not Connected

High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Knight service
Advanced technology

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
