6FM200 Solar Storage AGM Battery for Telcommunication System

Prod Model:	6FM200
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	13.7~13.9V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	F11
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Dimension:	522*240*219*224mm
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

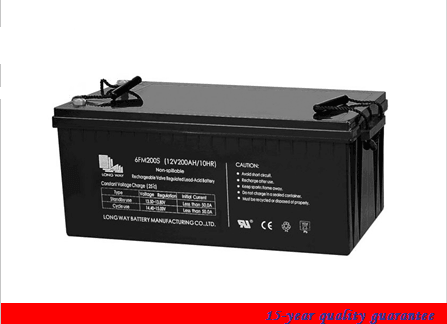

6FM200S solar storage VRLA battery

LONGWAY® 6FM200Sis specially designed for green energy systems .
6FM200S have a good deep cycle property, maintenance-free . It can be
used for more than 350 cycles at 100% discharge in cycle service, up to
12 years in standby service.

Specifications
Cells per unit: 6
Normal voltage: 12V
Capacity: 200Ah@10Hr-rate to 1.80V per cell@25ºC
         230Ah@100Hr-rate to 1.90V per cell@25ºC
Weight:Approx.(62±3%) kg (136.7lbs)
Maximum discharge current:2000A(5sec)
Internal resistance: Approx. 4mΩ full charged @25ºC
Operating temperature range:
      Discharge: -20ºC~60ºC
      Charge: 0ºC~50ºC
      Storage: -20ºC~60ºC
Nominal operating temperature range: 25ºC±3ºC
Float charging voltage:13.7~13.9VDC/unit Average @25ºC
Maximum charging current: 50A
Equalization and cycle service: 14.4V~15.0VDC/unit Average @ 25ºC
Self-discharge: LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal: Terminal F11
Container material: ABS(UL94-HB)*Flammability resistance of (UL94-V0) can be available upon request
Dimensions: L522*W240*H219(TH224)

Storage Series
LONGWAY Storage series batteries(S Type, "s"behind the model name stands for Storage energy application).by combining the newly develop namo gel electrolyte with high density paste. LONGWAY create offers high recharge efficiency at very low charge current which is very common at renewable energy systems. The acid stratification is highly depressed by adding of gel. This range battery is highly suitable for the energy storage for renewable energy such as PV and wind turbine power systems.

General Features
12 years design life at floating conditions
Long life expectancy of 5 years at renewable energy system
Wide temperature range from -20 to 60C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Round trip efficiency as high as 85%
Thick positive flat design with high Tin Low Ca alloy and high density paste
Low self-discharge rate and long shelf life (1 year at 25C)
Excellent deep discharge recovery capacity

Applications
Photovoltaic system
Hybrid power system
Renewable energy system
Power storage for rural area
Telecom base station
