6FM45 Storage Lead Acid Chargeable Battery for UPS System

Name: 6FM45 Storage Lead Acid Chargeable Battery for UPS System
Brand: all-electronics-online.com
SKU: 730348472
Availability: InStock
Rating: 5 (141 reviews)

Price:	US $ 35.9-49.9/Piece
Min Order:	50/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	6FM45
Color:	Grey or Black
Terminal:	F21
Certificate:	Ce/UL/ISO9001/ISO14001/Ohsas18001
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

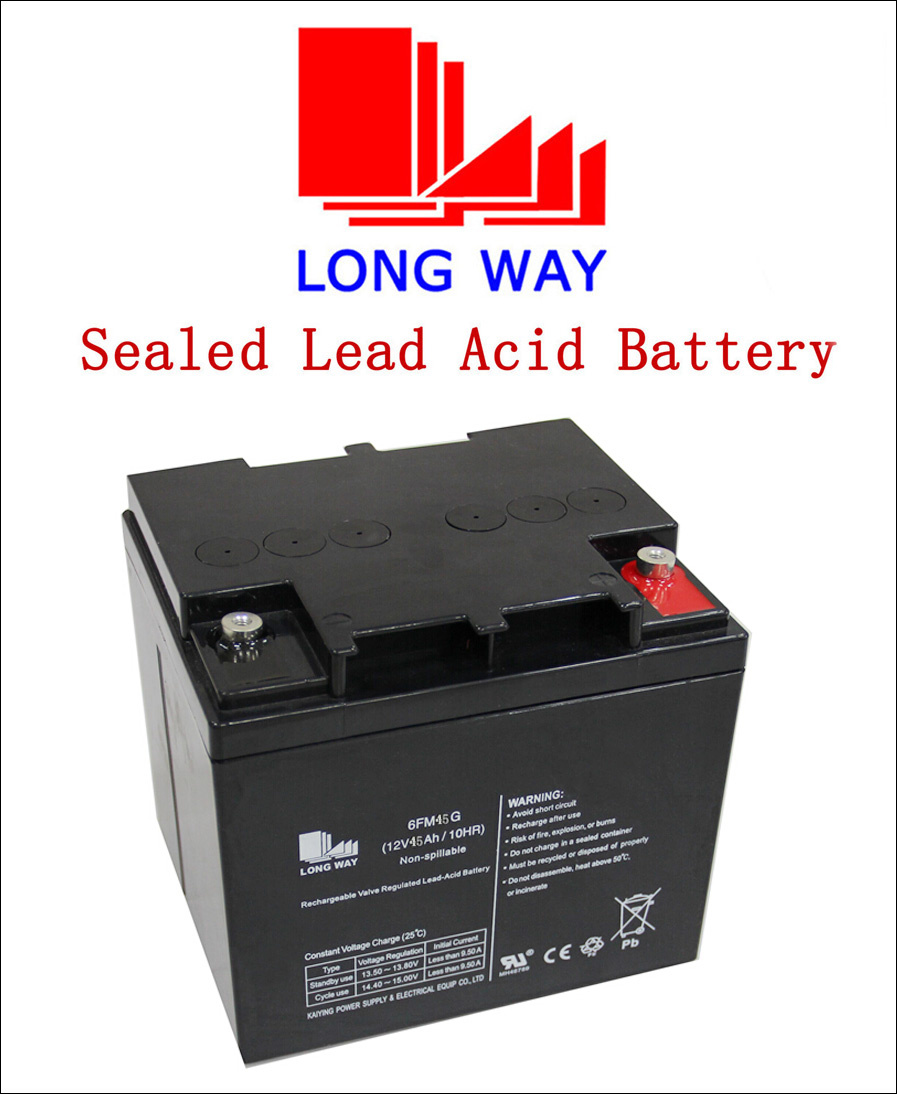

12V45ah electronic cash registers sealed lead acid rechargeable battery UPS battery manufacturer
LONGWAY standard series valve regulated lead acid batteries are designed with AGM(Absorbent Glass Mat) technology and for general application purpose, such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide. The battery container and cover are available both in VO class flame retardant ABS or HBO ABS plastics.

Model:LW12V45AH/10HR
Normal Voltage: 12V
Size: L196*W166*H176(TH182)mm
Capacity:45Ah@10Hr-rate to2.10V per cell@25°C
Weight:Approx.(13.7±3%) kg (30.2lbs)
Internal Resistance:Approx. 8mΩ full charged @25°C
Operating Temperature Range:Discharge: -15°C~50°C

Charge: -15°C~40°C
Storage: -15°C~40°C
Nominal Operating Temperature Range:25°C±3°C
Float Charging Voltage:13.7~13.9VDC/unit Average @25°C
Equalization and Cycle Service:14.4V~15.0VDC/unit Average @ 25°C
Self Discharge:
LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3% per month at 25°C. Please charge batteries before using.
Terminal:Terminal F21
Container Material:ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

Packing Qty: 1 PCS/CTN

N.W:13.7kg

G.W:14.2KG

Packing carton size: 214*184*221 mm

Lead-time: 1200PCS for one container

25 days after order for the first container, 7-10days for the second container.

FOB Xiamen port etc. , China

Packing:by Carton Box With Wooden Pallet.

Applications
Alarm systems, Cable television, communications equipment, control equipment,
Computers, electronic cash registers, electric test equipment,
Electric powered bicycle and wheel chair,
Emergency lighting systems, fire&security, geophysical equipment,
Marine equipment, medical equipment,
Micro processor based office machines, portable cine&video lights,
Power tools, solar powered systems,
Telecommunications systems, television&video recorders, toys,
Uninterruptible power supplies, vending machines;

General Features
Stable quality&high reliability
Sealed construction
Environmentally friendly
Maintenance-free operation
Low pressure venting system
Heavy duty grid
Low self discharge
UL component recognition(MH46789)

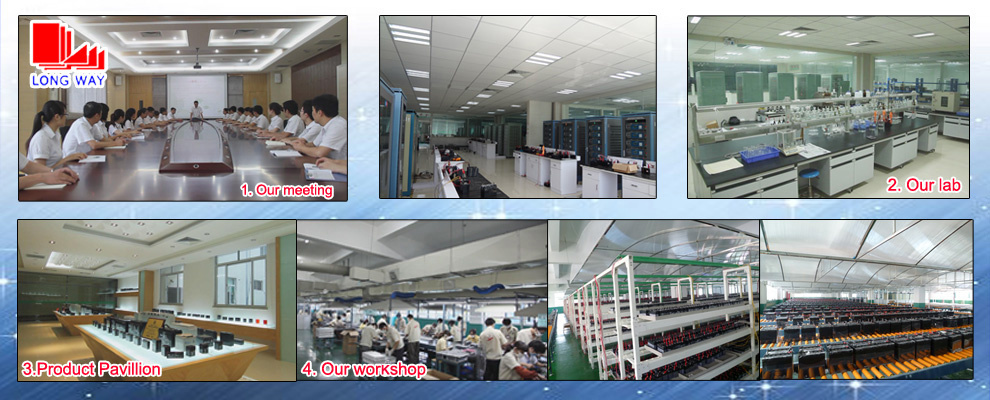

Our factory photo

Welcome to visit our website
HTTP: //longwaybattery. En. Made-in-China. com/

For more information, please contact us and welcome you! !

Standby Part of LONGWAY 12Volt battery series
Battery Model	Internal model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	Length		Width		Height		Total Height		Weight(±3%)		Terminal
Battery Model	Internal model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	In	mm	In	mm	In	mm	In	mm	lbs	Kg	Type	Position
6FM50G	LW12-50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	37.04	16.80	F20	C
6FM55A/G	LW12-55A	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F20	C
6FM55B/G	LW12-55B	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F9	C
6FM60G	LW12-60	12	60	13.78	350	6.54	166	6.89	175	7.05	179	44.09	20.00	F16	D
6FM60A	LW12-60A	12	60	9.84	250	6.30	160	7.01	178	7.20	183	38.14	17.30	F9	D
6FM65A/G	LW12-65	12	65	13.78	350	6.54	166	6.89	175	6.89	175	46.30	21.00	F16	D
6FM65B/G	LW12-65B	12	65	13.78	350	6.61	168	7.09	180	7.09	180	46.30	21.00	F9	D
6FM70A/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	9.09	231	46.96	21.30	F20	C
6FM70B/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	8.50	216	46.96	21.30	F10	C
6FM80A/G	LW12-80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25.00	F10	C
6FM80B/G	LW12-80A	12	70	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F10	C
6FM80E	LW12-80E	12	80	12.52	318	7.13	181	6.57	167	6.77	172	49.60	22.50	F9	D
6FM90	LW12-90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F10	C
6FM95	LW12-95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27.00	F10	C
6FM100A	LW12-100A	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.50	F12	C
6FM100B	LW12-100B	12	100	12.99	330	6.81	173	8.62	219	8.82	224	67.24	30.50	F12	C
6FM100C	LW12-100C	12	100	13.03	331	6.81	173	8.62	219	9.45	240	65.04	29.50	F22	C
6FM100D	LW12-100D	12	100	15.94	405	6.81	173	8.27	210	9.33	237	70.55	32.00	F17	C
6FM120	LW12-120	12	120	15.94	405	6.81	173	8.27	210	9.33	237	77.16	35.00	F17	C
6FM120A	LW12-120A	12	120	15.94	405	6.81	173	8.27	210	9.33	237	76.06	34.50	F17	C
6FM120B	LW12-120B	12	120	12.99	330	6.81	173	8.62	219	8.82	224	68.34	31.00	F12	C
6FM120C	LW12-120C	12	120	12.99	330	6.81	173	8.62	219	8.82	224	70.55	32.00	F12	C
6FM140	LW12-140	12	140	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F12	C
6FM150	LW12-150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	98.11	44.50	F18	C
6FM160	LW12-160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45.00	F12	C
6FM160A	LW12-160A	12	160	13.43	341	6.81	173	11.14	283	11.14	283	99.21	45.00	F11	C
6FM160B	LW12-160B	12	160	20.94	532	8.15	207	8.46	215	9.45	240	111.66	50.65	F24	E
6FM180	LW12-180	12	180	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM200	LW12-200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM230	LW12-230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	143.30	65.00	F24	F
6FM250	LW12-250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70.00	F25	E
9FM7	LW18-7	18	7	5.94	151	3.98	101	3.98	101	3.98	101	8.75	3.97	W	D

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
