| Prod Model: |
CPS-F6A20-D18 |
| Frame Color Optiona: |
White |
| Total Harmonic Distortion: |
Thd<20% |
| Power Factor: |
PF>0.9 |
| Color Index: |
90 |
| Lumens Maintenance @6000h: |
>80% |
| Switching Cycle Before Failure: |
100, 000 |
| Life Span: |
50, 000hours |
| Operation Temperature: |
-25°c~+45°c |
| Color Temperature: |
Cool White |
| Source Number: |
Double Plug |
| Installation: |
Embedded |
| Lamp Installation: |
Screw Holder |
| Switch Type: |
Touch On/Off Switch |
| Warranty: |
5 Years |
| Application: |
Retails, Offices, Schools, Hospitals, Libraries |
| Certification: |
UL |
| IP Rating: |
20 |
| Lamp Body Material: |
Aluminum + PMMA + Diffuser |

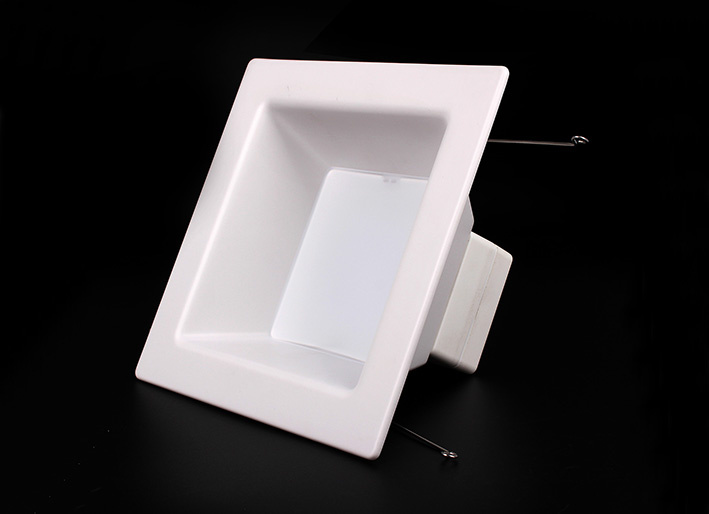

Product Description
Product Description
Key Features
• Private Mould, High-end custom products
• LM-80 certified LED as light source
• AC120-277V Driver built-in junction box
• 0-10V Dimmable function
• UL/ES, 5 years warranty
Technical Features
• Input Voltage: AC120-277V 50/60Hz
• Total harmonic distortion: THD<20%
• Power Factor: PF>0.9
• Color Index: Ra>83
• Lumens maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -25°C~+45°C
• Storage Temperature: -25°C~+55°C
Construction Features
• Frame color optional: White
• Housing material: Aluminum + PMMA + Diffuser
• With quickly terminal for easy wiring
• In-built / Surface mounted / Suspension installation
| Series | ITEM NO. | POWER | VOLTAGE
(V) | DIMENSION
(mm) | Perforate Dimension (mm) | Carton(mm) | COLOR
TEMPERATURE | LUMINOUS
Flux(lm) | CRI | Certification | Driver type | Light efficiency |
|
| 6 Inch Square | CPS-F6A20-D18 | 20W | AC120-277V | 196*196*75.5 | φ160*160 | 505*500*424
(16pcs) | 3000k 4000k 5000k | 1880±8% | 90 | UL Standard | 0-10V dim | 94LM/W |
| 2000±8% | 80 | 0-10V dim | 100LM/W |
| CPS-F6A25-D18 | 25W | AC120-277V | 3000k 4000k 5000k | 2350±8% | 90 | 0-10V dim | 94LM/W |
| 2500±8% | 80 | 0-10V dim | 100LM/W |
| 8 Inch Square | CPS-F8A40-D18 | 40W | AC120-277V | 242*242*132.5 | φ210*210 | 505*505*425
(12pcs) | 3000k 4000k 5000k | 3760±8% | 90 | 0-10V dim | 94LM/W |
| 4000±8% | 80 | 0-10V dim | 100LM/W |
| CPS-F8A45-D18 | 45W | AC120-277V | 3000k 4000k 5000k | 4200±8% | 90 | 0-10V dim | 94LM/W |
| 4500±8% | 80 | 0-10V dim | 100LM/W |
| 6 Inch Round | CPS-Y6B18-D24 | 18W | AC120-277V | 197*120 | φ150 | 500*425*410
(8pcs) | 3000k 4000k 5000k | 1800±8% | 80 | UL Standard | 0-10V dim | 100LM/W |
| 8 Inch Round | CPS-Y8B36-D24 | 36W | AC120-277V | 248*135 | φ200 | 535*535*455
(8pcs) | 3600±8% | 80 | 0-10V dim | 100LM/W |
Our service
1. Fast deilvery: For samples 3-7 working day. For bulk order: 7-30working days.
2. Good Quality control: We have our own LEDs Encapsulation room, we produce LED drivers by ourselves.
3. Mature OEM Service: With 12 years LED lighting manufacture. FREE laser print label, color box design etc.
4. Professional sales team, engineer team, and good after-sales service.
Our trade terms:
1. Payment term: 30% deposit by T/T or Westernunion; 70% before delivery.
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen, China.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
Please contact us if you have any other questions! Will reply you within 24hours!
