6ka Mini Circuit Breaker MCB with Ce CB Approval

Name: 6ka Mini Circuit Breaker MCB with Ce CB Approval
Brand: all-electronics-online.com
SKU: 774799975
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 1.63-1.73/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-40N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Breaking Capacity:	4.5ka / 6ka
Pole:	1p+N
IEC Standard:	IEC60898; En60898
Approval:	Ce
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	TUV

Product Description

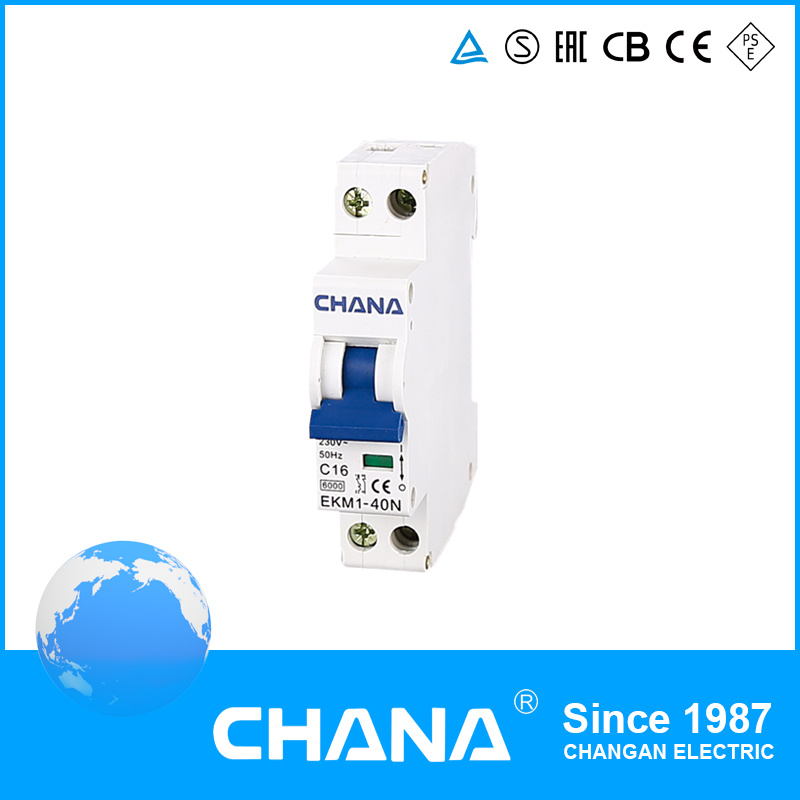

EKM1-40N Mini Circuit Breaker (MCB)

1. Specification

Standard	IEC60947-2
Electrical Feature
Rated current In	6, 10, 16, 20, 25, 32, 40A
Poles	1P+N
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	4500/10000A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind. Freq. For 1 min	2000V
Pollution degree	2
Thermo-magnetic release characteristic	B, C
Mechanical Feature
Electrical life	3000
Mechanical life	6000
Protection degree	IP20
Reference temperature for setting of thermal element	30 º C
Ambient temperature (with daily average≤ 35º C)	-5 º C...+40 º C
Storage temperature	-25 º C...+70 º C
Installation
Terminal size top/bottom for cable	25 18-3AWG
Terminal size top/bottom for bus bar	25 18-3AWG
Tightening torque	2.5 N*m
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom
Combination with Accessory
Combination with accessories	Auxiliary contact, Shunt release, Under voltage release, Alarm contact

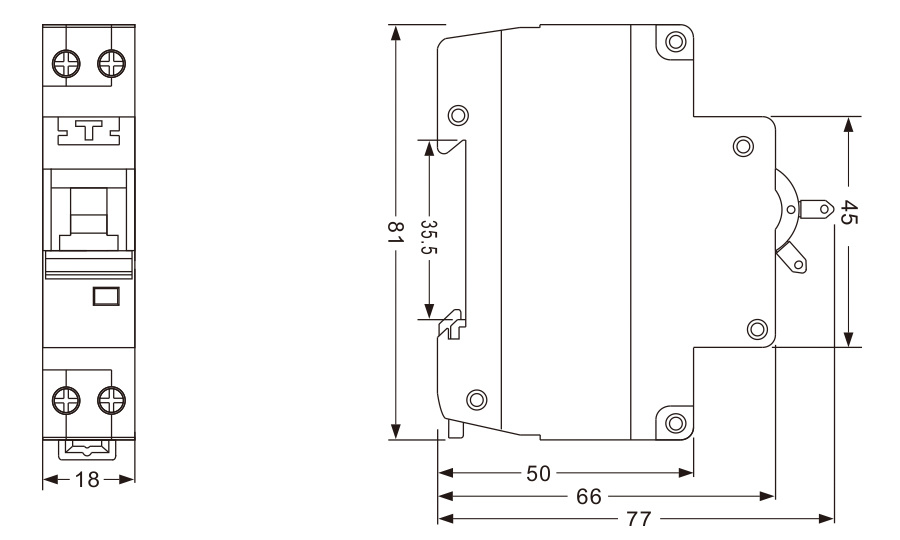

2. Dimension(mm)

3. Certificate

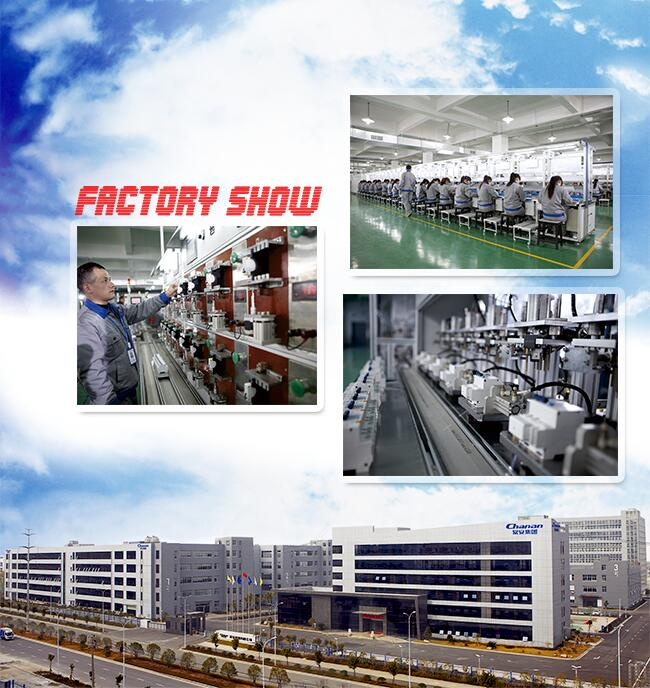

4. Company Profile

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
