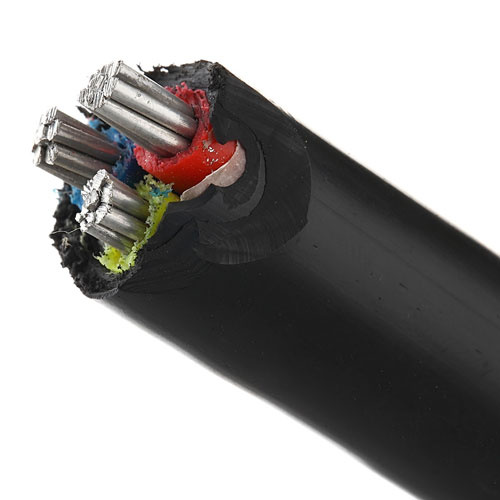

6kv PVC Insulated and Sheathed Power Cable
| Price: |
US $ 0.16/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
1.5mm2-800mm2 PVC Cable |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cores: |
1,2,3,45,5,3+1,3+2,4+1cores |
| Size: |
1.5mm2-800mm2 |
| Armour: |
Aluminum Wire Armour |
| Certificate: |
CE,TUV,Kema,SABS |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
TUV,Kema |
| Model: |
VV32 Vlv32 |
| Brand: |
Rne Da |
Product Description
0.6/1KV PVC Insulated power cable:
1 Applicant:
The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).The factory can also manufacture the products that are based on British Standard(BS) and other standards.In addition,under the requirement of customers we can design and manufacture the products that have special performance.The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
2 Specific Property for Using
1.The long-time permissible working temperature of cable conductive core is not more than 70ºC.
2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 165ºC.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0ºC.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.Light weight,good bending property and easy installation and maintenance
3.1Type and Name:
| Type | Name |
| VV VLV | Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable |
| VY VLY | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
| VV22VLV22 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable |
| VV23VLV23 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PE Sheathed Power Cable |
| VV32 VLV32 | Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable |
| VV33VLV33 | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
| VV42VLV42 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PVC Sheathed Power Cable |
| VV43VLV43 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PE Sheathed Power Cable |
3.2 Nominal thickness of insulation
Nominal Cross
Sectrion (mm2) | Insulated
Thickness(mm) | | Voltage(KV) |
| 1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 1000 |
| 0.6/1 | 0.8 0.8 0.8 1 1 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0 2.2 2.4 2.6 2.8 2.8 2.8 3.0 |
| 3.6/6 | 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 |
3.3 DC resistance of conductor
Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) | Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) | Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) |
| Copper Core | Aluminum Core | Copper Core | Aluminum Core | Copper Core | Aluminum Core |
| 1.5 | 12.1 | 18.1 | 35 | 0.524 | 0.868 | 240 | 0.0754 | 0.125 |
| 2.5 | 7.41 | 12.1 | 50 | 0.387 | 0.641 | 300 | 0.0601 | 0.100 |
| 4 | 4.61 | 7.41 | 70 | 0.268 | 0.443 | 400 | 0.0470 | 0.0778 |
| 6 | 3.08 | 4.61 | 95 | 0.193 | 0.320 | 500 | 0.0366 | 0.0605 |
| 10 | 1.83 | 3.08 | 120 | 0.153 | 0.253 | 630 | 0.0283 | 0.0469 |
| 16 | 1.15 | 1.91 | 150 | 0.124 | 0.206 | 800 | 0.0221 | 0.0369 |
| 25 | 0.727 | 1.20 | 185 | 0.0991 | 0.164 | 1000 | 0.0176 | 0.0291 |
3.4 Insulation Resistance
| Test item | PVC insulated Cable | XLPE insulated Power Cable |
| 0.6/1KV | 3.6/6KV |
volume resistivity (ρΩ.cm)
min.at 20ºC
at top rated temperature min. | 1013
1010 | 1014
1011 | -
1012 |
Ki insulation resistivity constant(MΩ.km)
min.at 20ºC
at top rated temperature min. | 36.7
0.037 | 367
0.37 | -
3.67 |
3.5 insulation resistance
| UO/U(KV) | Us(KV) | T(min) |
| 0.6/1 | 3.5 | 5 |
| 3.6/6 | 12.5 | 5 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
