6kv to 35kv XLPE Insulated Medium Voltage Power Cable

Name: 6kv to 35kv XLPE Insulated Medium Voltage Power Cable
Brand: all-electronics-online.com
SKU: 710992082
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	Negotiablekm
Min Order:	1km
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	medium voltage cable-B2-1
Application:	Power Station
Voltage:	High Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Wire Core Material:	Cu or Al
Model:	Single Core,Three Core Armoured Cable
Brand:	Yifang Cable

Product Description

6kv to 35kv xlpe insulated Medium voltage cable
(1)brief guide of medium voltage cable
1) Single core or three core
2) Conductor:Copper,or Aluminum;Insulation: XLPE;Sheath:PVC
3) Armoured (sta,swa)or unarmoured

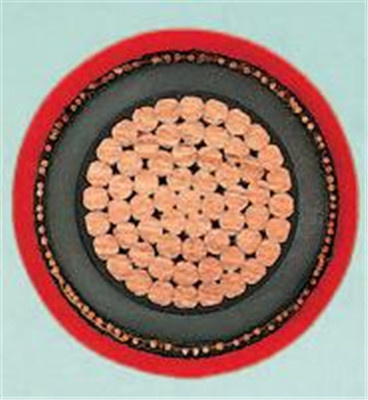

(2)structure diagram of  medium voltage cable
1)Unarmoured medium voltage cable
Single Core unarmoured
Three Core unarmoured

2)Armoured  medium voltage cable
Single Core armoured (sta, swa)
Three Core armoured(sta,swa)

(3)Model and Specs of  medium voltage cable

6 to 35kv Medium Voltage Electric Cable
Model and Description		No.of Core	Conductor cross-section area(mm2)
xlpe insulation		1 3	10 16 25 35 70 95 120 150 185 240 300 400 500 630 800 1000
Cu core	Al Core
YJV;PVC sheathed power cable	YJLV;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable	YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable	YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

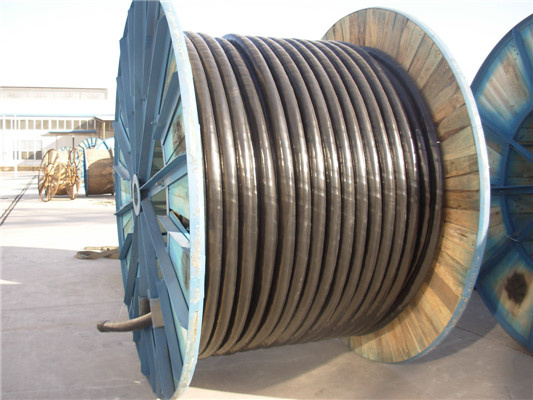

(4)Cu Conductor medium voltage cable Picture

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
