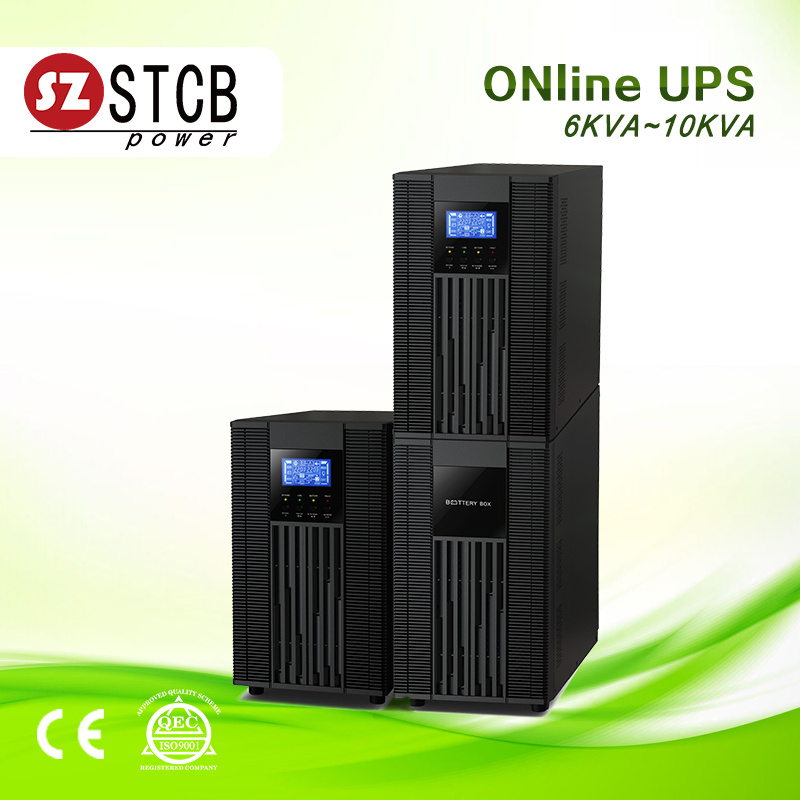

6kVA /10kVA Online UPS for ATM
| Price: |
US $ 220-485/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GH11 6KVA/10KVA |
| Power Efficiency: |
0.8 |
| Transfer Time: |
0 Ms |
| Charging Current: |
1A or 1A/2A/4A/6A Adjustable |
| Warranty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Application: |
Computer / Server |
Product Description
6kVA /10kVA Online UPS for ATM
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
| MODEL | GH11- 6K(L) | GH11- 10K(L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
Frequency Range
(Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load) |
Transfer Time
(Line mode) | Bypass to Inverter | Zero |
| Inverter to Bypass | Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 0.89 | 0.9 |
| Battery Mode | 0.88 | 0.89 |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default:1.0 A ± 10%,
Max.:2.0A ± 10% | Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
| Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20pcs(adjustable) |
| Charging Current | Default:4.0 A ± 10%,
Max.:6.0A ± 10% | Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
| Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension | 369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 61 | 75 |
| Long-run Model | Dimension | 369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 12 | 18 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8,
Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Product specifications are subject to change without further notice
